| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Certification: | CE |
| Model Number: | PV-1 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200 sets/M |

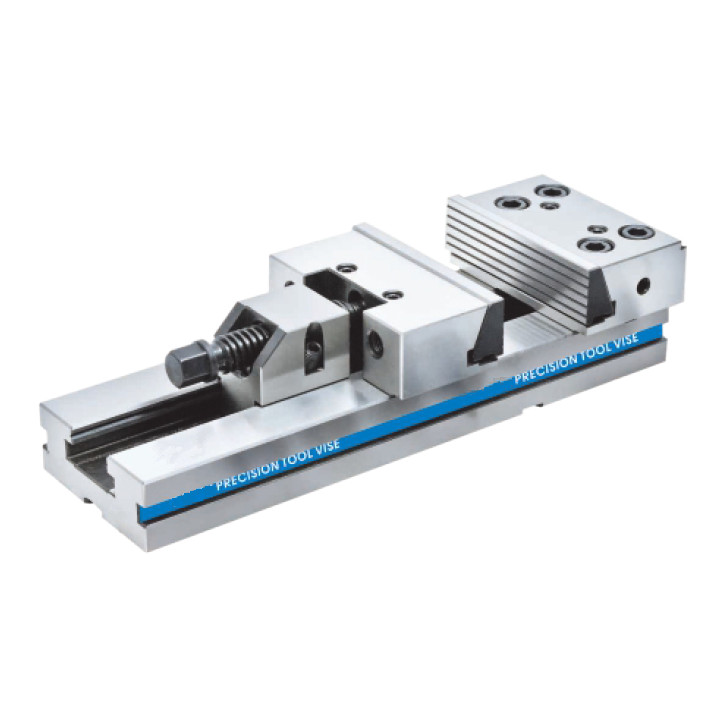

| Product Name: | CNC Precision Vise | Material: | Alloy Steel |
|---|---|---|---|
| Heat Treated: | HRC 58-60 | Feature: | High Precision |
| Size: | Refer To The Specification | ||
| High Light: | Alloy Steel CNC Precision Vise,HRC 58 CNC Precision Vise,CNC Milling Machine Vise |
||
The material is adopted the high quality alloy steel,
The surface hardness is HRC58-62.
About the vise precision on Parallelism and squareness accuracy is 0.005mm/100mm.
It can be widely used onto CNC machines and other precision machine tools.

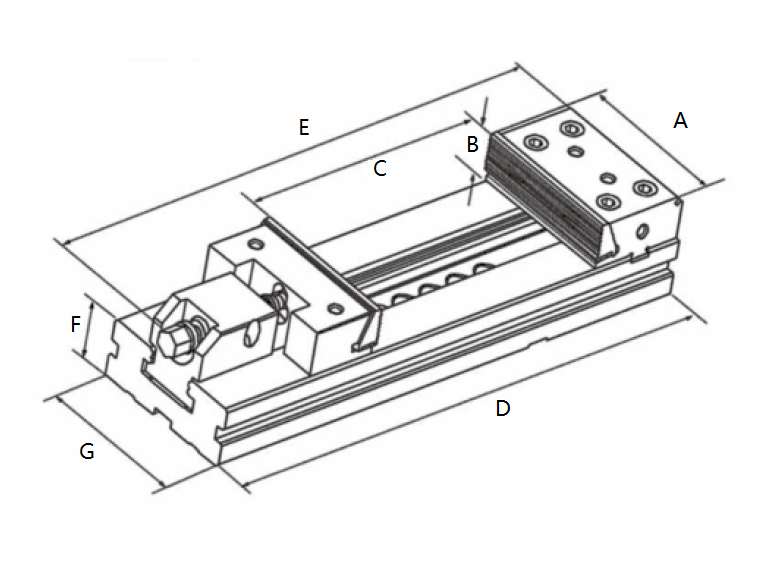

| Model Spec |
A | B | C | D | E | F | G | Weight Kgs |
Clamp Force KN |
| PV100-1 | 100 | 30 | 100 | 270 | 320 | 35 | 75 | 7 | 16 |
| PV125-1 | 125 | 40 | 150 | 345 | 402 | 40 | 95 | 13 | 25 |
| PV150A-1 | 150 | 50 | 200 | 420 | 500 | 50 | 125 | 26 | 30 |
| PV150B-1 | 150 | 50 | 300 | 520 | 600 | 50 | 125 | 29 | 30 |
| PV175A-1 | 175 | 60 | 200 | 455 | 530 | 58 | 145 | 37 | 30 |
| PV175B-1 | 175 | 60 | 300 | 555 | 630 | 58 | 145 | 42 | 30 |
| PV175C-1 | 175 | 60 | 400 | 655 | 730 | 58 | 145 | 47 | 30 |
| PV175D-1 | 175 | 60 | 500 | 755 | 830 | 58 | 145 | 52 | 30 |
| PV200A-1 | 200 | 200 | 200 | 495 | 580 | 70 | 170 | 64 | 40 |
| PV200B-1 | 200 | 200 | 300 | 595 | 680 | 70 | 170 | 69 | 40 |
| PV200C-1 | 200 | 200 | 400 | 695 | 780 | 70 | 170 | 74 | 40 |
| PV200D-1 | 200 | 200 | 500 | 795 | 880 | 70 | 170 | 79 | 40 |
| PV200E-1 | 200 | 200 | 600 | 895 | 980 | 70 | 170 | 84 | 40 |
| PV300A-1 | 300 | 300 | 200 | 535 | 630 | 78 | 195 | 95 | 40 |
| PV300B-1 | 300 | 300 | 300 | 635 | 730 | 78 | 195 | 105 | 40 |
| PV300C-1 | 300 | 300 | 400 | 735 | 830 | 78 | 195 | 115 | 40 |
| PV300D-1 | 300 | 300 | 500 | 835 | 930 | 78 | 195 | 125 | 40 |
| PV300E-1 | 300 | 300 | 600 | 935 | 1030 | 78 | 195 | 135 | 40 |
| PV300F-1 | 300 | 300 | 700 | 1035 | 1130 | 78 | 195 | 145 | 40 |
| PV300G-1 | 300 | 300 | 800 | 1135 | 1230 | 78 | 195 | 155 | 40 |
