Product Name: Optional Accessory Parts SVF Material: 100% Tool Steel
Heat Treated: HRC 55° & Ground Feature: High Capacity High Flexibility
Size: Refer To The Specification
High Light:

pneumatic air vise

,

pneumatic cylinder vise

Optional accessory parts

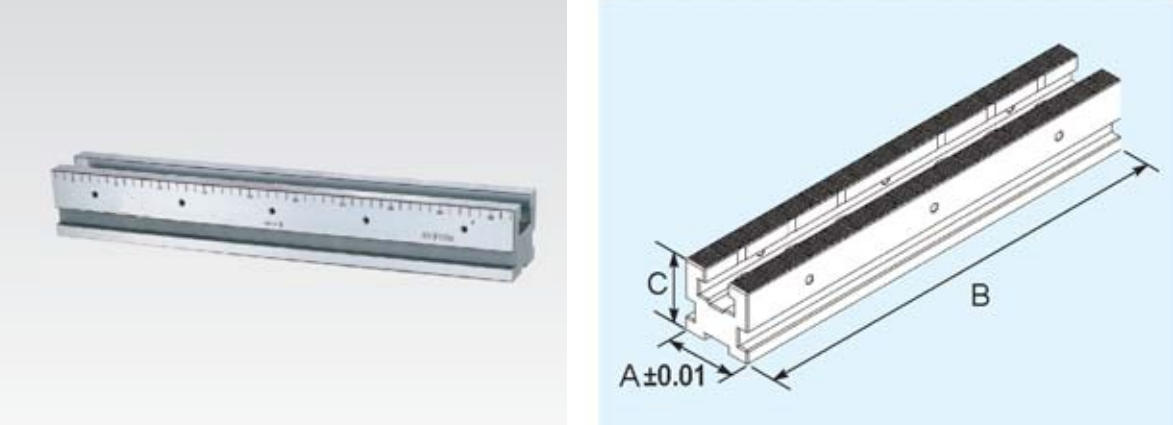

Main body

Optional Accessory Parts SVF 0



For use on A&B series

TYPE A B C kg
SVF-AB01-5030-80 50 300 50 4.0
SVF-AB01-5030-100 50 300 50 4.0
SVF-AB01-5040-80 50 400 50 5.3
SVF-AB01-5040-100 50 400 50 5.3
SVF-AB01-5050-80 50 500 50 6.7
SVF-AB01-5050-100 50 500 50 6.7
SVF-AB01-5060-80 50 600 50 8.0
SVF-AB01-5060-100 50 600 50 8.0
SVF-AB01-5070-80 50 700 50 9.5
SVF-AB01-5070-100 50 700 50 9.5
SVF-AB01-7240-100 72 400 72 11.2
SVF-AB01-7250-100 72 500 72 14.0
SVF-AB01-7260-100 72 600 72 17.0
SVF-AB01-7270-100 72 700 72 20.0
SVF-AB01-10040-100 100 400 72 16.0
SVF-AB01-10050-100 100 500 72 20.0
SVF-AB01-10060-100 100 600 72 24.0
SVF-AB01-10070-100 100 700 72 28.0

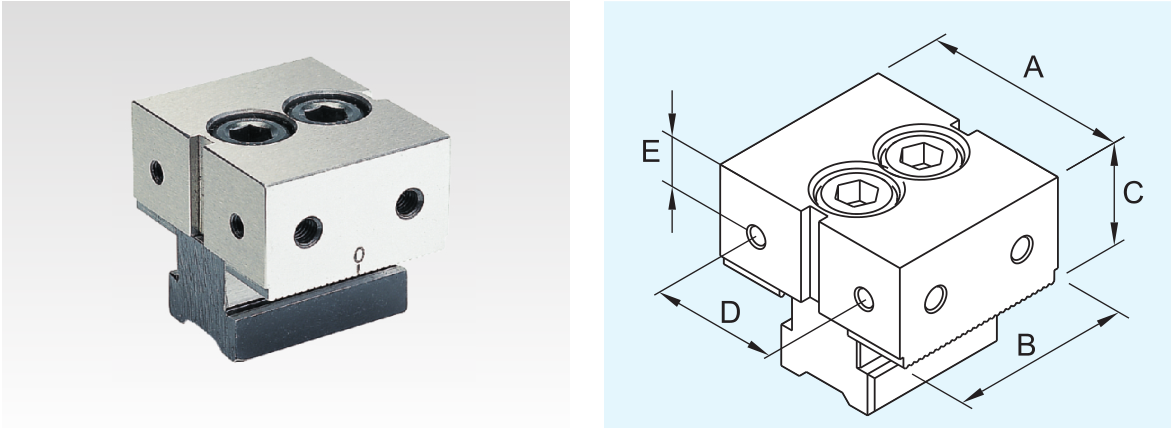

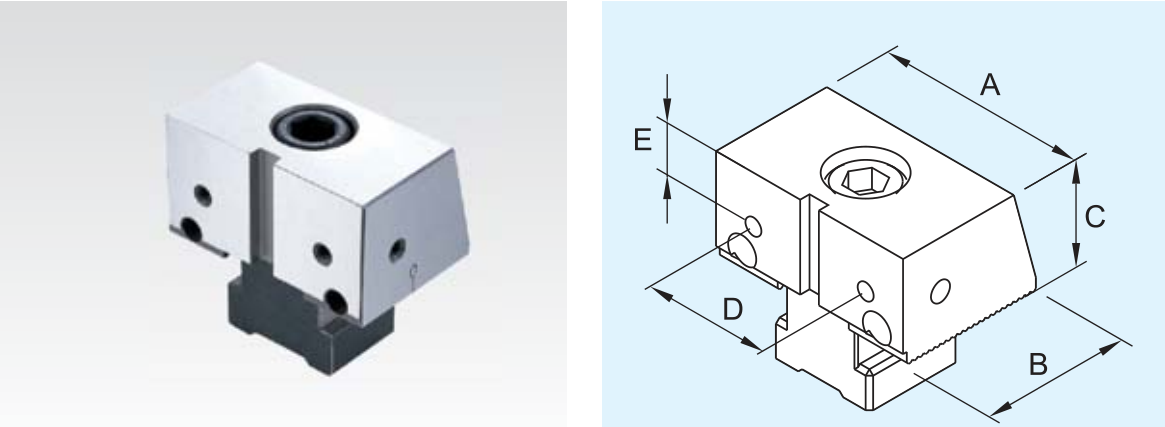

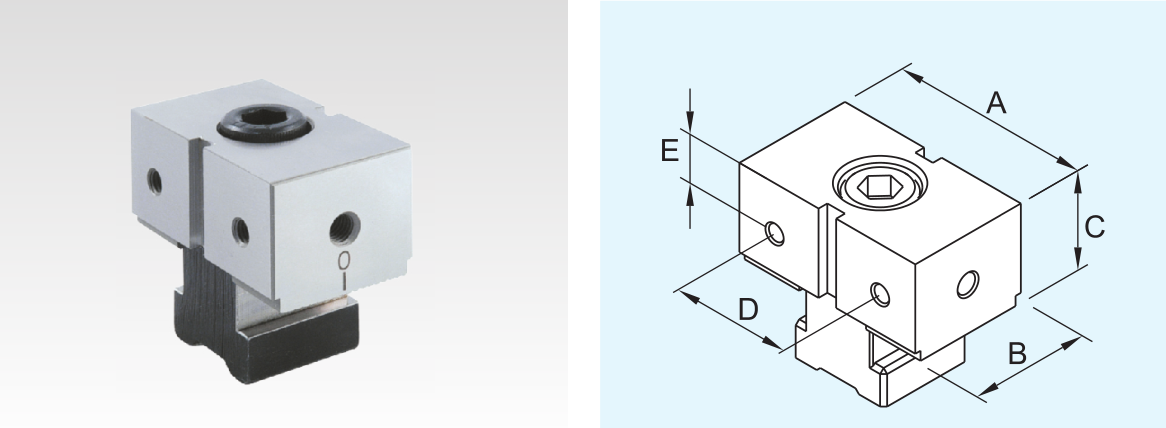

Stationary wedge-heavy duty

Optional Accessory Parts SVF 1



For use on B series

TYPE A B C D E kg
SVF-AB02-50 50 50 25 30 12.5 0.6
SVF-AB02-72 72 74 40 44 21.5 2.0
SVF-AB02-100 100 75 43 64 22.0 2.6

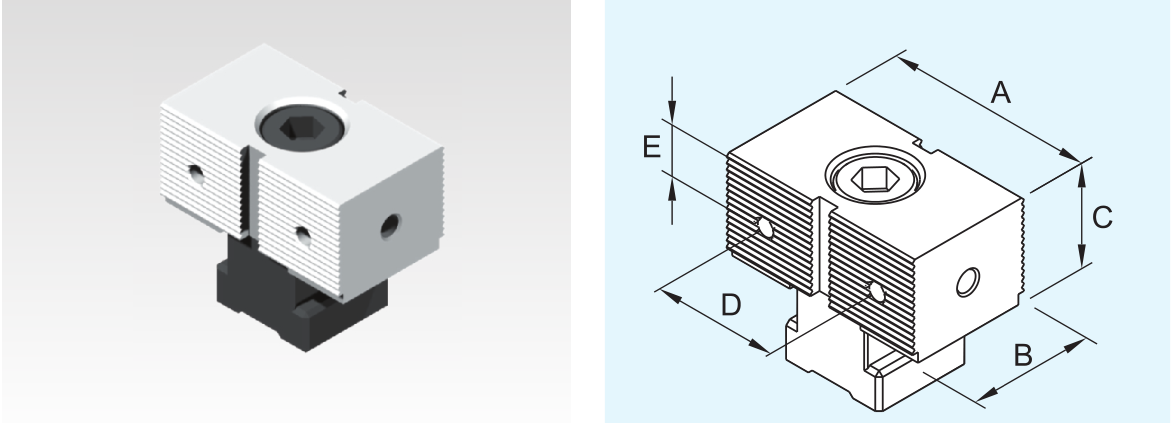

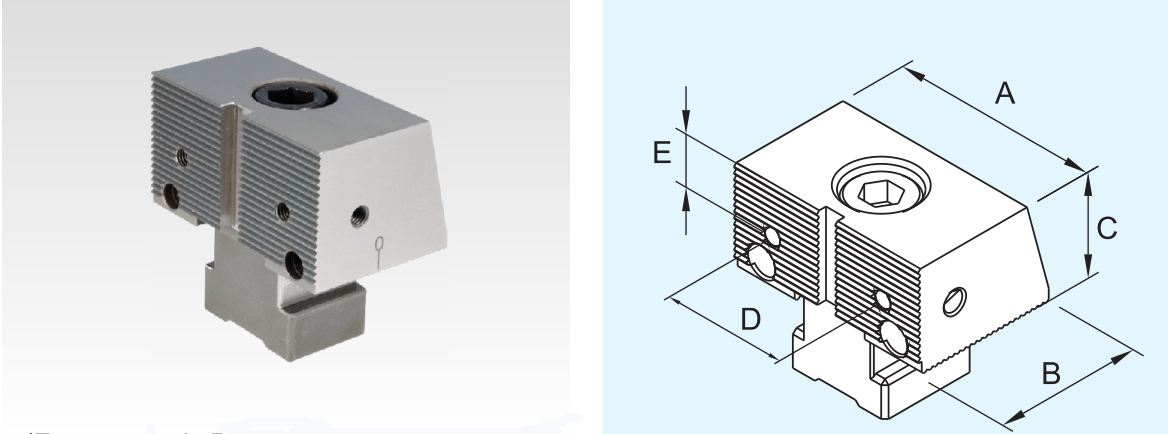

Serrated statinary wedge-heavy duty

Optional Accessory Parts SVF 2

For use on B series

TYPE A B C D E kg
SVF-ABG02-50 50 50 25 30 12.5 0.6
SVF-ABG02-72 72 74 40 44 21.5 2.0
SVF-ABG02-100 100 75 43 64 22.0 2.6

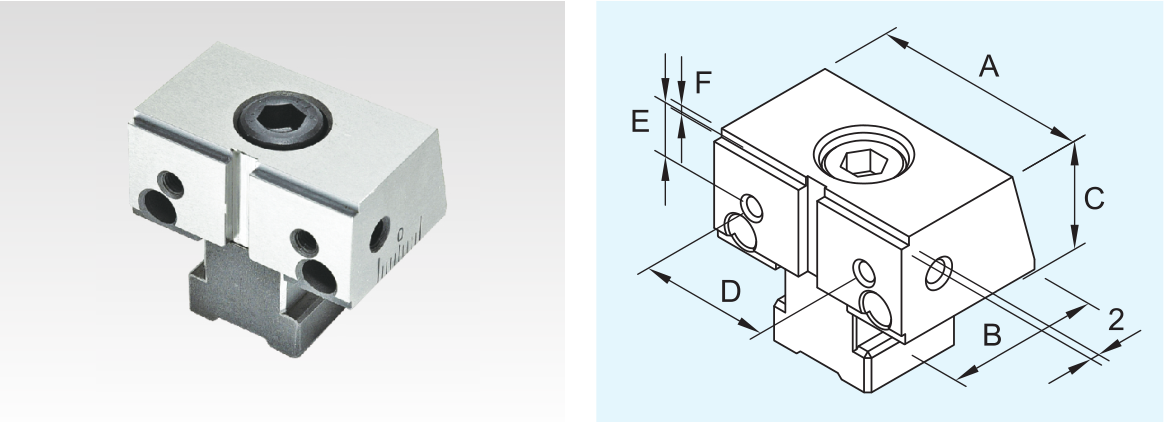

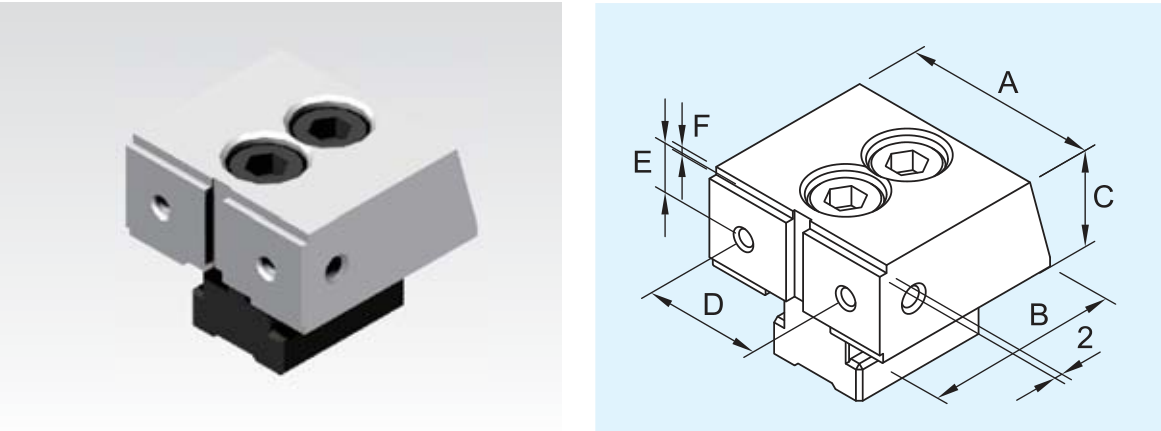

Step stationary wedge-heavy duty

Optional Accessory Parts SVF 3

For use on B series

TYPE A B C D E F kg
SVF-ABS02-502 50 50 25 30 12.5 2 0.6
SVF-ABS02-505 50 50 25 30 12.5 5 0.6
SVF-ABS02-722 72 74 40 44 21.5 2 2.0
SVF-ABS02-725 72 74 40 44 21.5 5 2.0
SVF-ABS02-1002 100 75 43 64 22.0 2 2.6
SVF-ABS02-1005 100 75 43 64 22.0 5 2.6

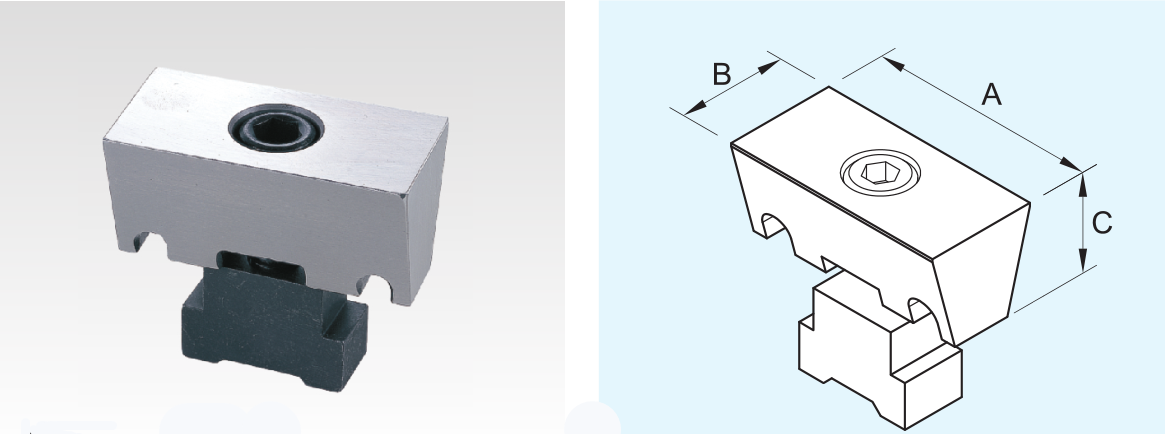

Stationary wedge-standard duty

Optional Accessory Parts SVF 4

For use on A,BE& C series

TYPE A B C D E kg
SVF-AB03-50 50 35 25 30 12.5 0.4
SVF-AB03-72 72 48 40 44 21.5 1.1
SVF-AB03-100 100 48 43 64 22.0 1.7

Serrated staionary sedge-standard duty

Optional Accessory Parts SVF 5

For use on A,BE& C series

TYPE A B C D E kg
SVF-ABG03-50 50 35 25 30 12.5 0.4
SVF-ABG03-72 72 48 40 44 21.5 1.1
SVF-ABG03-100 100 48 43 64 22.0 1.7

Step stationary wedge-standard duty

Optional Accessory Parts SVF 6



 For use on A,BE& C series

TYPE A B C D E kg
SVF-ABS03-502 50 35 25 30 12.5 0.4
SVF-ABS03-505 50 35 25 30 12.5 0.4
SVF-ABS03-722 72 48 40 44 21.5 1.1
SVF-ABS03-725 72 48 40 44 21.5 1.1
SVF-ABS03-1002 100 48 43 64 22.0 1.7
SVF-ABS03-1005 100 48 43 64 22.0 1.7

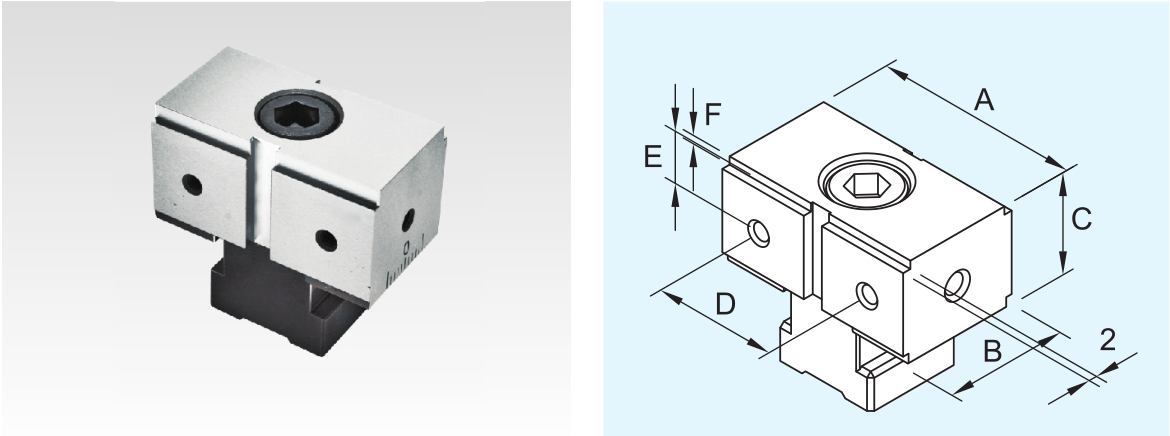

Moveable jaw

Optional Accessory Parts SVF 7

For use all series

TYPE A B C D E kg
SVF-AB04-50 50 12 24.3 30 12.5 0.2
SVF-AB04-72 72 18 39.3 44 21.5 0.6
SVF-AB04-100 100 21 42.0 64 22.0 1.0

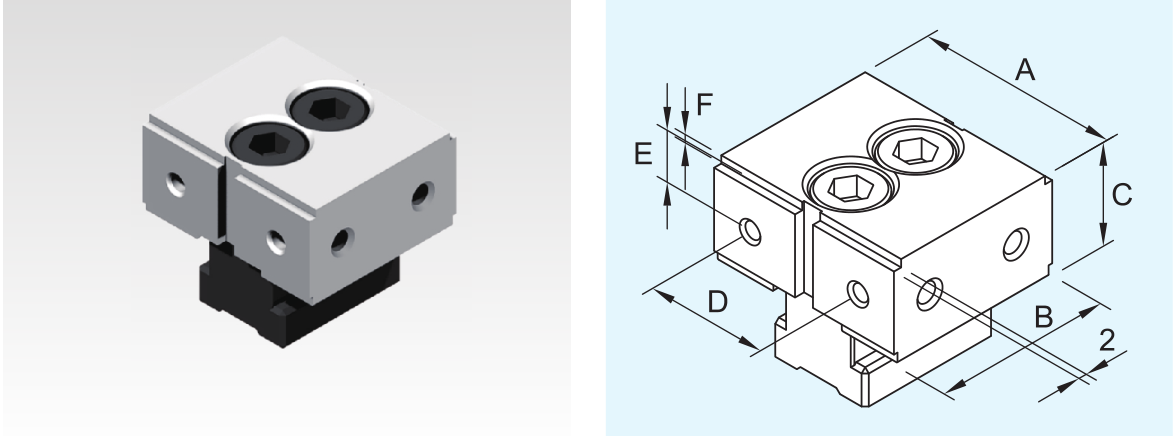

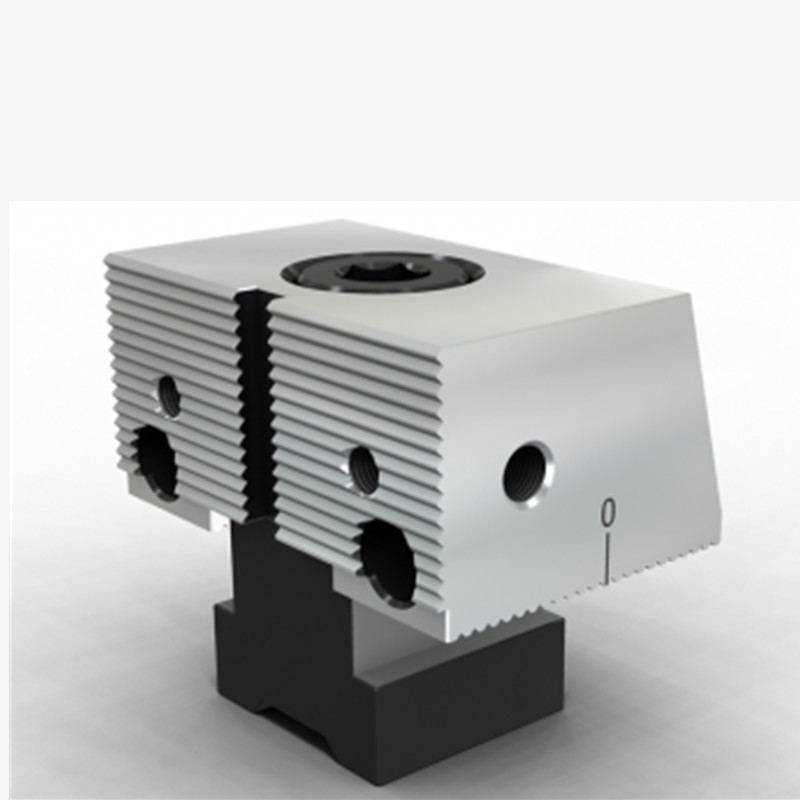

Serrated moveable jaw

Optional Accessory Parts SVF 8

 For use all series

TYPE A B C D E kg
SVF-ABG04-50 50 12 24.3 30 12.5 0.2
SVF-ABG04-72 72 18 39.3 44 21.5 0.6
SVF-ABG04-100 100 21 42.0 64 22.0 1.0

Step moveable jaw

Optional Accessory Parts SVF 9



 For use all series

TYPE A B C D E F kg
SVF-ABS04-502 50 12 24.3 30 12.5 2 0.2
SVF-ABS04-505 50 12 24.3 30 12.5 5 0.2
SVF-ABS04-722 72 18 39.3 44 21.5 2 0.6
SVF-ABS04-725 72 18 39.3 44 21.5 5 0.6
SVF-ABS04-1002 100 21 42.0 64 22.0 2 1.0
SVF-ABS04-1005 100 21 42.0 64 22.0 5 1.0

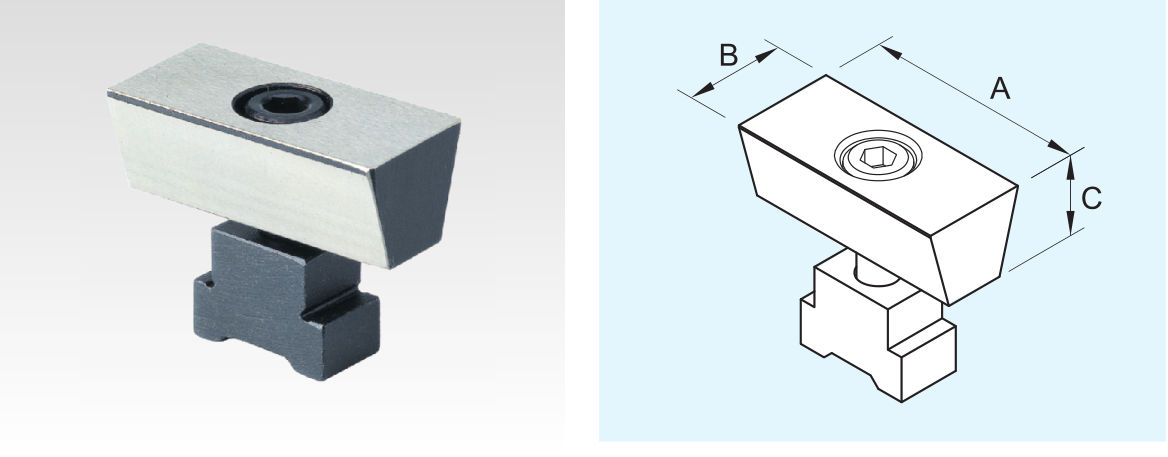

Moveable wedge

Optional Accessory Parts SVF 10

For use on A series

TYPE A B C kg
SVF-A01-50 50 24 22 0.2
SVF-A01-72 72 35 35 0.6
SVF-A01-100 100 45 38 1.2

Fixed jaw-heavy duty

Optional Accessory Parts SVF 11

For use on B&C series

TYPE A B C D E kg
SVF-B01-50 50 44 25 30 12.5 0.5
SVF-B01-72 72 65 40 44 21.5 1.8
SVF-B01-100 100 70 43 64 22.0 2.6

Serrated fixed jaw-heavy duty

Optional Accessory Parts SVF 12

For use on B&C series

TYPE A B C D E kg
SVF-BG01-50 50 44 25 30 12.5 0.5
SVF-BG01-72 72 65 40 44 21.5 1.8
SVF-BG01-100 100 70 43 64 22.0 2.6

Step fixed jaw-heavy duty

Optional Accessory Parts SVF 13

For use on B&C series

TYPE A B C D E F kg
SVF-BS01-502 50 44 25 30 12.5 2 0.5
SVF-BS01-505 50 44 25 30 12.5 5 0.5
SVF-BS01-722 72 65 40 44 21.5 2 1.8
SVF-BS01-725 72 65 40 44 21.5 5 1.8
SVF-BS01-1002 100 70 43 64 22.0 2 2.6
SVF-BS01-1005 100 70 43 64 22.0 5 2.6

 Moveable wedge

Optional Accessory Parts SVF 14

For use B&BE series

TYPE A B C kg
SVF-B02-50 50 22.5 18.0 0.2
SVF-B02-72 72 35.0 29.0 0.6
SVF-B02-100 100 45.0 32.9 1.3

Fixed jaw-standard duty

Optional Accessory Parts SVF 15

For use B&BE series

TYPE A B C D E kg
SVF-B03-50 50 30 25 30 12.5 0.4
SVF-B03-72 72 40 40 44 21.5 1.1
SVF-B03-100 100 44 43 64 22.0 1.7

Serrated fixed jaw-standard duty

Optional Accessory Parts SVF 16

For use B&BE series

TYPE A B C D E kg
SVF-BG03-50 50 30 25 30 12.5 0.4
SVF-BG03-72 72 40 40 44 21.5 1.1
SVF-BG03-100 100 44 43 64 22.0 1.7

Step fixed jaw-standard duty

Optional Accessory Parts SVF 17

For use B&BE series

TYPE A B C D E F kg
SVF-BS03-502 50 30 25 30 12.5 2 0.4
SVF-BS03-505 50 30 25 30 12.5 5 0.4
SVF-BS03-722 72 40 40 44 21.5 2 1.1
SVF-BS03-725 72 40 40 44 21.5 5 1.1
SVF-BS03-1002 100 44 43 64 22.0 2 1.7
SVF-BS03-1003 100 44 43 64 22.0 5 1.7

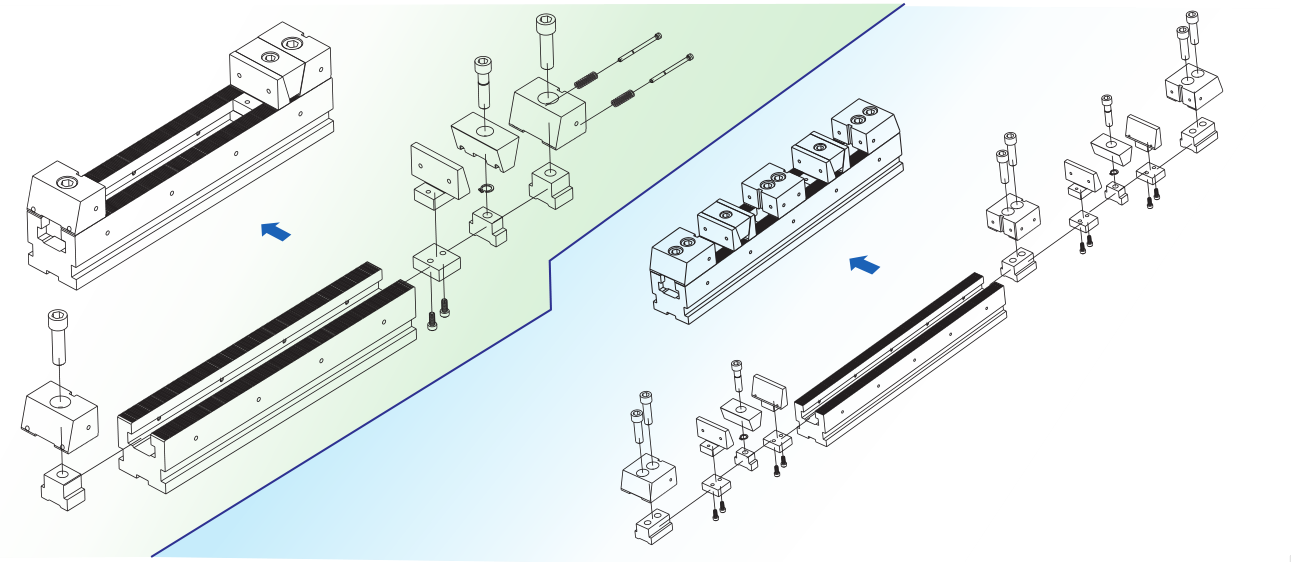

SVF-A Assembled

Optional Accessory Parts SVF 18

                                                                                                                                                   SVF-B Assembled

Fixed soft jaw

Optional Accessory Parts SVF 19

TYPE A B C D E
SVF-S01-50 50 17 25 5 0.2
SVF-S01-50W 80 27 25 5 0.4
SVF-S01-72 72 19 40 8 0.4
SVF-S01-72W 115 30 40 8 1.1
SVF-S01-100 100 25 43 10 0.9
SVF-S01-100W 150 35 43 10 1.8

Moveable soft jaw

Optional Accessory Parts SVF 20

TYPE A B C D kg
SVF-S02-50 50 21 24.5 13 0.3
SVF-S02-50W 80 34 24.5 13 07
SVF-S02-72 72 26 39.5 19 1.0
SVF-S01-72W 115 40 39.5 19 1.9
SVF-S01-100 100 35 42.5 25 2.0
SVF-S01-100W 150 50 42.5 25 3.2

Hardened V jaw

Optional Accessory Parts SVF 21

TYPE A B C D E H CLAMP(MAX) kg
SVF-S03-50 50 25 5 42 2 54.98 Φ70 0.2
SVF-S03-72 72 40 8 62 3 82.45 Φ110 0.6
SVF-S03-100 100 43 10 62 4 90.24 Φ160 1.2

Parallel

Optional Accessory Parts SVF 22

TYPE A B C D H K kg
SVF-S04-50-17 49.5 5 30 6 17 12.3 0.02
SVF-S04-50-20 49.5 5 30 6 20 12.3 0.04
SVF-S04-50-22 49.5 3 30 6 22 12.3 0.03
SVF-S04-72-25 71.5 5 44 7 25 18.4 0.07
SVF-S04-72-30 71.5 5 44 7 30 18.4 0.08
SVF-S04-72-35 71.5 5 44 7 35 18.4 0.10
SVF-S04-72-37 71.5 3 44 7 37 18.4 0.15
SVF-S04-100-29 99.5 8 64 9 29 21.0 0.18
SVF-S04-100-33 99.5 8 64 9 33 21.0 0.21
SVF-S04-100-38 99.5 8 64 9 38 21.0 0.24
SVF-S04-100-40 99.5 5 64 9 40 21.0 0.10

Space -work piece stop plate

Optional Accessory Parts SVF 23

TYPE A B kg
SVF-S05-10 49.5 5 0.02
SVF-S05-15 49.5 5 0.04
SVF-S05-23 49.5 3 0.03
SVF-S05-100-15 71.5 5 0.07
SVF-S05-100-20 71.5 5 0.08
SVF-S05-100-25 71.5 5 0.10

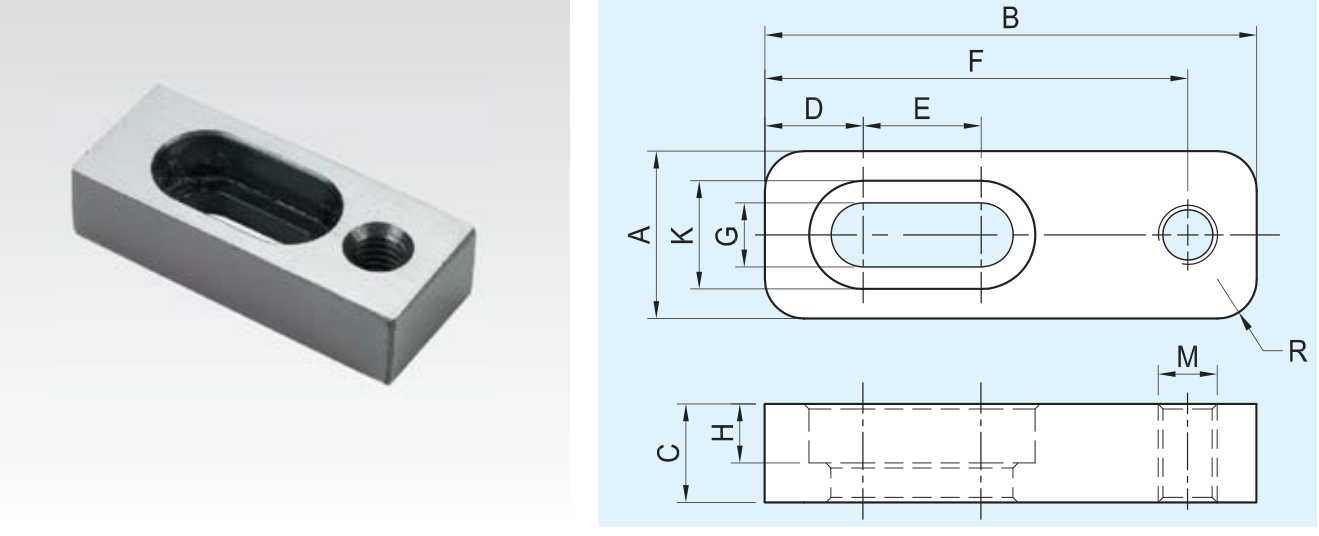

Work piece stop plate

Optional Accessory Parts SVF 24

TYPE A B C D E F G H K M R kg
SVF-S06-50 17 45 10 10.0 12 38 6.5 6.0 11 M6 4 0.03
SVF-S06-72 17 50 10 10.0 12 43 6.5 6.0 11 M6 4 0.04
SVF-S06-100 25 55 15 11.5 16 45 9.0 8.5 14 M8 5 0.14

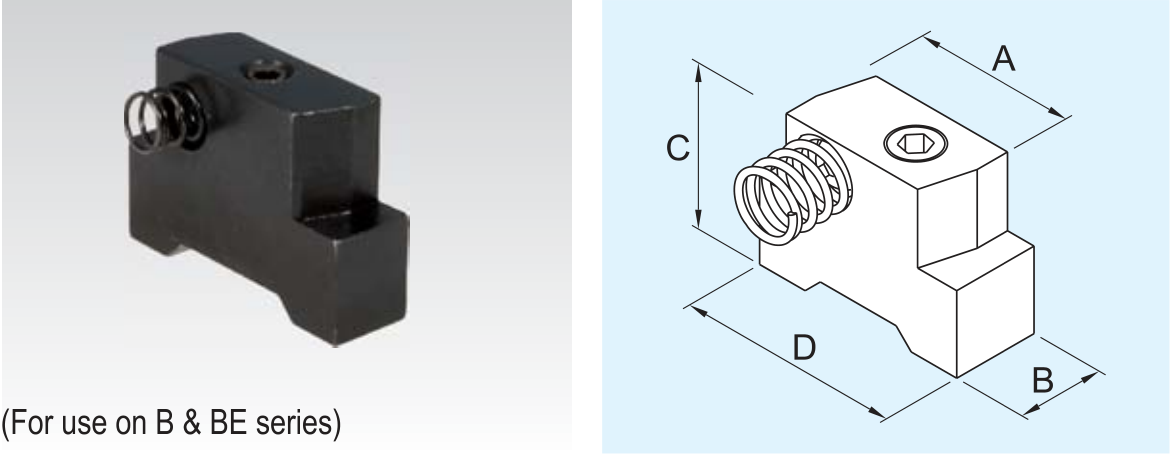

Spring loaded T-nut

Optional Accessory Parts SVF 25

TYPE A B C D kg
SVF-S07-50 19 10.2 19 25 0.04
SVF-S07-72 30 12.2 29 40 0.05
SVF-S07-100 45 14.0 29 56 0.05

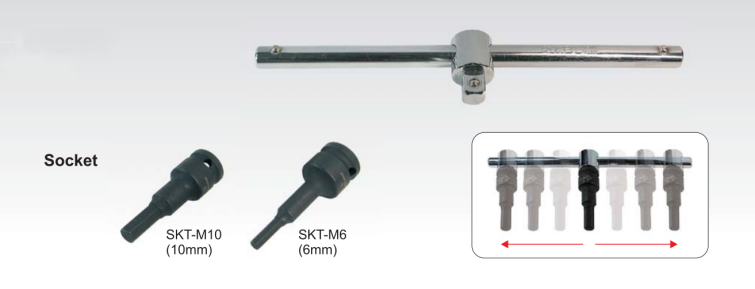

T-handle adjustable socket driver (SKD-T 1/2 L10)

Optional Accessory Parts SVF 26



For



Optional Accessory Parts SVF 27T-Slot nut



Optional Accessory Parts SVF 28Clamp



Optional Accessory Parts SVF 29



Screw



Optional Accessory Parts SVF 30

Threaded dowel pin



Optional Accessory Parts SVF 31



Locating key



Optional Accessory Parts SVF 32







Hexagonal diver
  MODEL NO. QTY MODEL NO. QTY MODEL NO. QTY MODEL NO. QTY MODEL NO. QTY MODEL NO. QTY
50 PT06-1812



4PCS



 SVF-P01-50



4 PCS



 CAP-M12-40L Same as hole PT11-1234



2 PCS



PT27-1810

CAP-M6-10L

 2 PCS

SPN-M6HEX

SPN-M8HEX

1 PC

1 PC
72 PT06-1816



4PCS



 SVF-P01-72



4PCS



 CAP-M16-50L Same as hole PT11-1642



2 PCS



PT27-1810

CAP-M6-10L

 2 PCS

SPN-M10HEX

SPN-M12HEX





1 PC

1 PC
100 PT06-1816



4PCS



 SVF-P01-72



4PCS



 CAP-M16-50L Same as hole PT11-1642



2 PCS



PT27-1810

CAP-M6-10L

 2 PCS

SPN-M12HEX

SPN-M14HEX



1 PC

1 PC
