| Place of Origin: | CHINA |
|---|---|
| Model Number: | SVF-A |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |

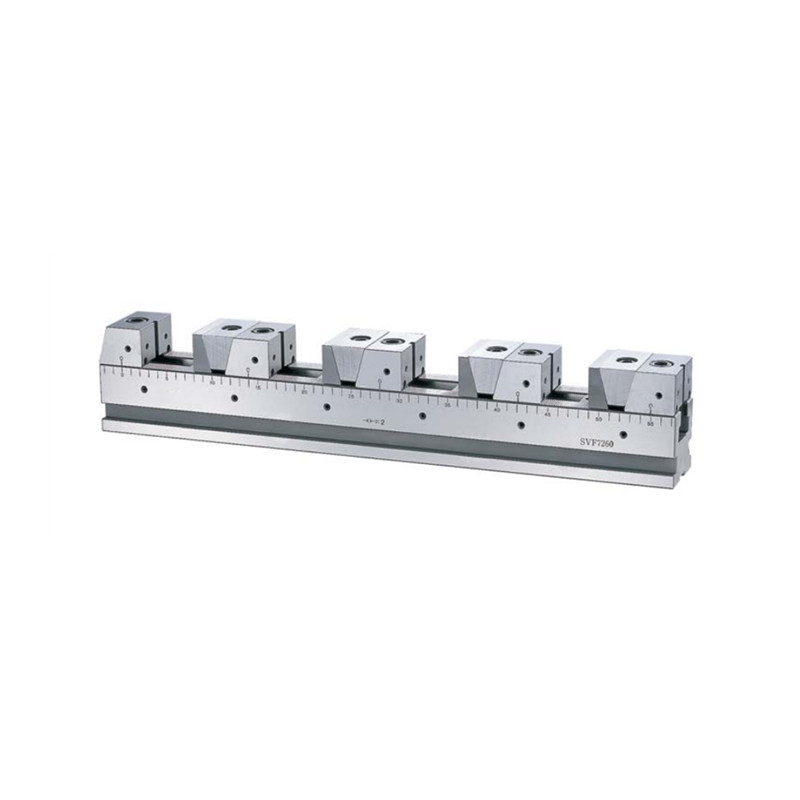

| Product Name: | SVF-A FLEXIBLE VISE | Material: | 100% Tool Steel |
|---|---|---|---|
| Heat Treated: | HRC 55° & Ground | Feature: | High Capacity High Flexibility |
| Size: | Refer To The Specification | ||
| High Light: | pneumatic air vise,pneumatic milling vise |
||
One way clamping
Material 100% tool steel
Heat treated HRC 55° & ground
Clamping force:
SVF-50 : 1000 kgf
SVF-72 : 2000 kgf
SVF-100 : 3000 kgf

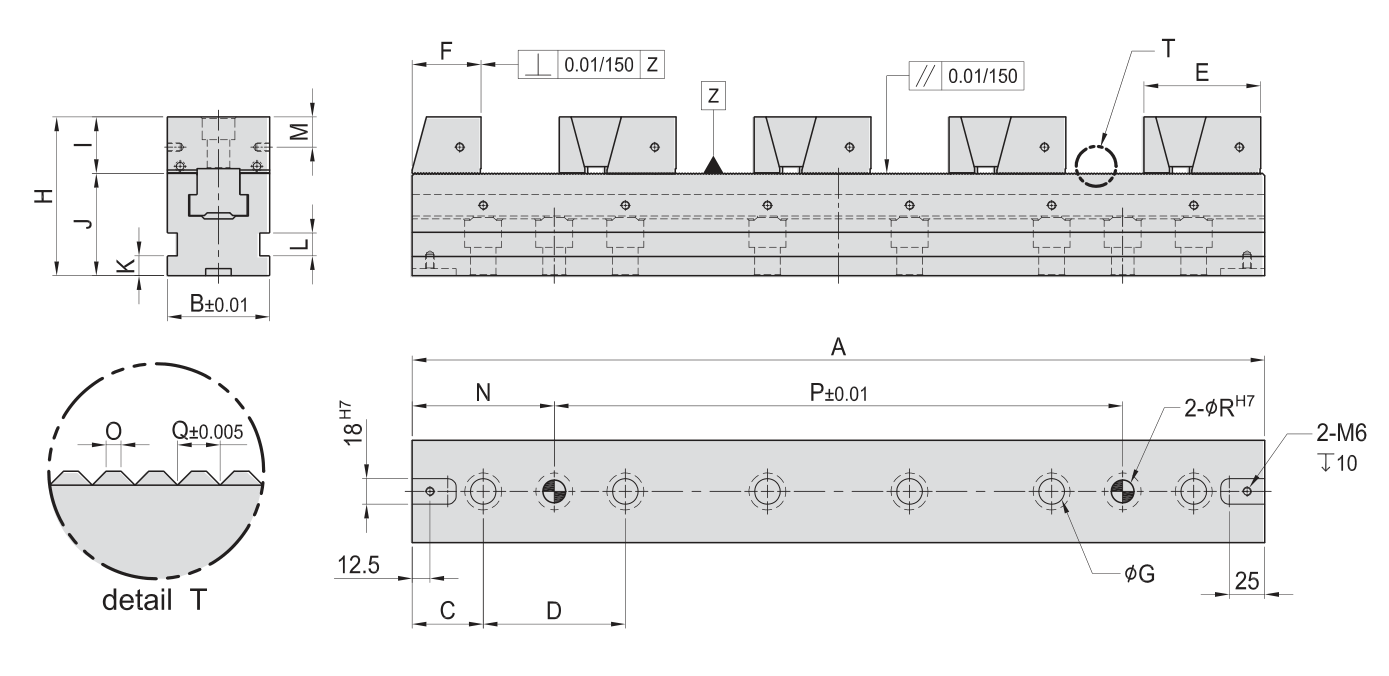

| MODEL NO. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | kg |
| SVF-A-5030-80* | 300 | 50 | 30 | 80 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 70 | 0.50 | 160 | 1.5 | 12 | 6.5 |
| SVF-A-5030-100* | 300 | 50 | 50 | 100 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 100 | 0.50 | 100 | 1.5 | 12 | 6.5 |
| SVF-A-5040-80 | 400 | 50 | 40 | 80 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 80 | 0.50 | 240 | 1.5 | 12 | 8.5 |
| SVF-A-5040-100 | 400 | 50 | 50 | 100 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 100 | 0.50 | 200 | 1.5 | 12 | 8.5 |
| SVF-A-5050-80 | 500 | 50 | 50 | 80 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 90 | 0.50 | 320 | 1.5 | 12 | 10.0 |
| SVF-A-5050-100 | 500 | 50 | 50 | 100 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 100 | 0.50 | 300 | 1.5 | 12 | 10.0 |
| SVF-A-5060-80 | 600 | 50 | 60 | 80 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 100 | 0.50 | 400 | 1.5 | 12 | 11.5 |
| SVF-A-5060-100 | 600 | 50 | 50 | 100 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 100 | 0.50 | 400 | 1.5 | 12 | 11.5 |
| SVF-A-5070-80 | 700 | 50 | 70 | 80 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 110 | 0.50 | 480 | 1.5 | 12 | 13.0 |
| SVF-A-5070-100 | 700 | 50 | 50 | 100 | 60.6 | 35 | 14 | 75 | 24.8 | 50 | 10 | 12 | 12.5 | 100 | 0.50 | 500 | 1.5 | 12 | 13.0 |
| SVF-A-7240-100 | 400 | 72 | 50 | 100 | 82.2 | 48 | 18 | 112 | 39.7 | 72 | 14 | 16 | 21.3 | 100 | 0.70 | 200 | 2.0 | 16 | 19.0 |
| SVF-A-7250-100 | 500 | 72 | 50 | 100 | 82.2 | 48 | 18 | 112 | 39.7 | 72 | 14 | 16 | 21.3 | 100 | 0.70 | 300 | 2.0 | 16 | 24.5 |
| SVF-A-7260-100 | 600 | 72 | 50 | 100 | 82.2 | 48 | 18 | 112 | 39.7 | 72 | 14 | 16 | 21.3 | 100 | 0.70 | 400 | 2.0 | 16 | 27.0 |
| SVF-A-7270-100 | 700 | 72 | 50 | 100 | 82.2 | 48 | 18 | 112 | 39.7 | 72 | 14 | 16 | 21.3 | 100 | 0.70 | 500 | 2.0 | 16 | 30.0 |
| SVF-A-10040-100* | 400 | 100 | 50 | 100 | 93.2 | 48 | 18 | 115 | 43.1 | 72 | 14 | 16 | 22.2 | 100 | 0.85 | 200 | 2.5 | 16 | 29.0 |
| SVF-A-10050-100 | 500 | 100 | 50 | 100 | 93.2 | 48 | 18 | 115 | 43.1 | 72 | 14 | 16 | 22.2 | 100 | 0.85 | 300 | 2.5 | 16 | 37.0 |
| SVF-A-10060-100 | 600 | 100 | 50 | 100 | 93.2 | 48 | 18 | 115 | 43.1 | 72 | 14 | 16 | 22.2 | 100 | 0.85 | 400 | 2.5 | 16 | 41.0 |
| SVF-A-10070-100 | 700 | 100 | 50 | 100 | 93.2 | 48 | 18 | 115 | 43.1 | 72 | 14 | 16 | 22.2 | 100 | 0.85 | 500 | 2.5 | 16 | 45.0 |

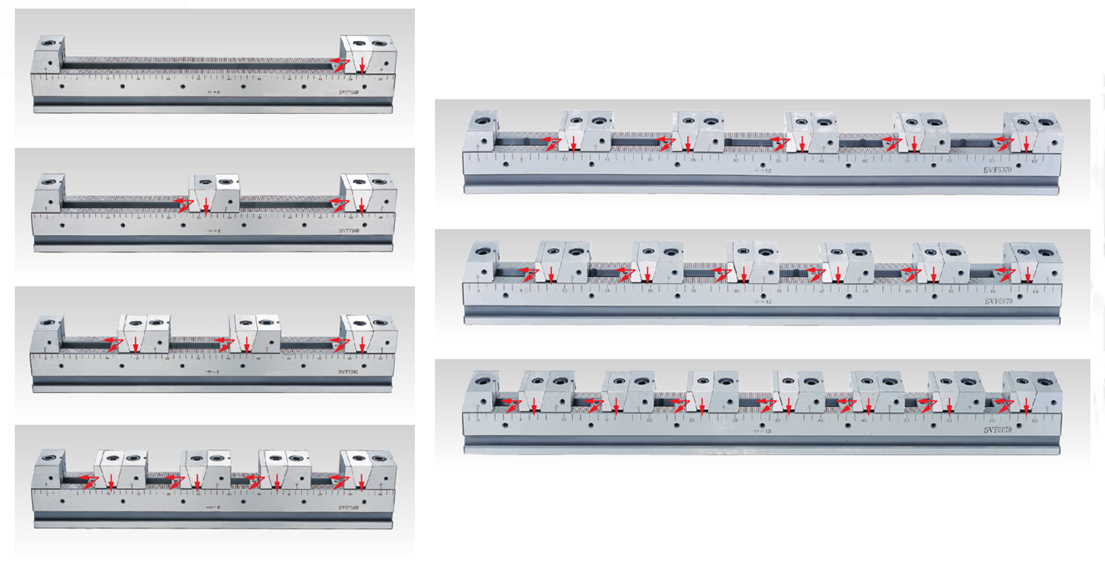

(SVF vises listed above come equipped to clam 1-4 parts, if additional part clamping is required please order optional accessories as listed on parts pages)
Forcing direction
Maximum width of the workpieces which can be clamped
|
MODEL NO. |
1 PCS
|
2 PCS
|
3 PCS |
4 PCS
|
| SVF-A-5030 | 203 | 71 | 27 | -- |
| SVF-A-5040 | 303 | 121 | 60 | 30 |
| SVF-A-5050 | 403 | 171 | 94 | 55 |
| SVF-A-5060 | 503 | 221 | 127 | 80 |
| SVF-A-5070 | 603 | 271 | 160 | 105 |
| SVF-A-7240 | 269 | 93 | 35 | -- |
| SVF-A-7250 | 369 | 143 | 68 | 30 |
| SVF-A-7260 | 469 | 193 | 101 | 55 |
| SVF-A-7270 | 569 | 243 | 135 | 80 |
| SVF-A-10040 | 258 | 82 | 24 | -- |
| SVF-A-10050 | 358 | 132 | 57 | 19 |
| SVF-A-10060 | 458 | 182 | 90 | 44 |
| SVF-A-10070 | 558 | 232 | 124 | 69 |
|
MODEL NO. |
5 PCS
|
6 PCS
|
7 PCS
|
8 PCS
|
9 PCS
|
| SVF-A-5030 | -- | -- | -- | -- | -- |
| SVF-A-5040 | -- | -- | -- | -- | -- |
| SVF-A-5050 | 32 | 16 | 20 | -- | -- |
| SVF-A-5060 | 52 | 33 | 34 | -- | -- |
| SVF-A-5070 | 72 | 50 | -- | 22 | 13 |
| SVF-A-7240 | -- | -- | -- | -- | -- |
| SVF-A-7250 | -- | -- | -- | -- | -- |
| SVF-A-7260 | 28 | -- | -- | -- | -- |
| SVF-A-7270 | 48 | 26 | -- | -- | -- |
| SVF-A-10040 | -- | -- | -- | -- | -- |
| SVF-A-10050 | -- | -- | -- | -- | -- |
| SVF-A-10060 | 17 | -- | -- | -- | -- |
| SVF-A-10070 | 37 | -- | -- | -- | -- |
