STANDARD FULL GRIP PIE JAWS FOR B215 15 INCH POWER CHUCK

Basic Information
Place of Origin: CHINA
Brand Name: OMATEI
Model Number: PJ-15
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: STANDARD FULL GRIP PIE JAWS FOR B215 15 INCH POWER CHUCK Material: 45#Steel/Aluminum
Function: Clamping Feature: High Quality /High Precision
Size: Refer To The Specification Service: ODM/OEM Is Available
High Light:

steel pie jaws

,

aluminum pie jaws

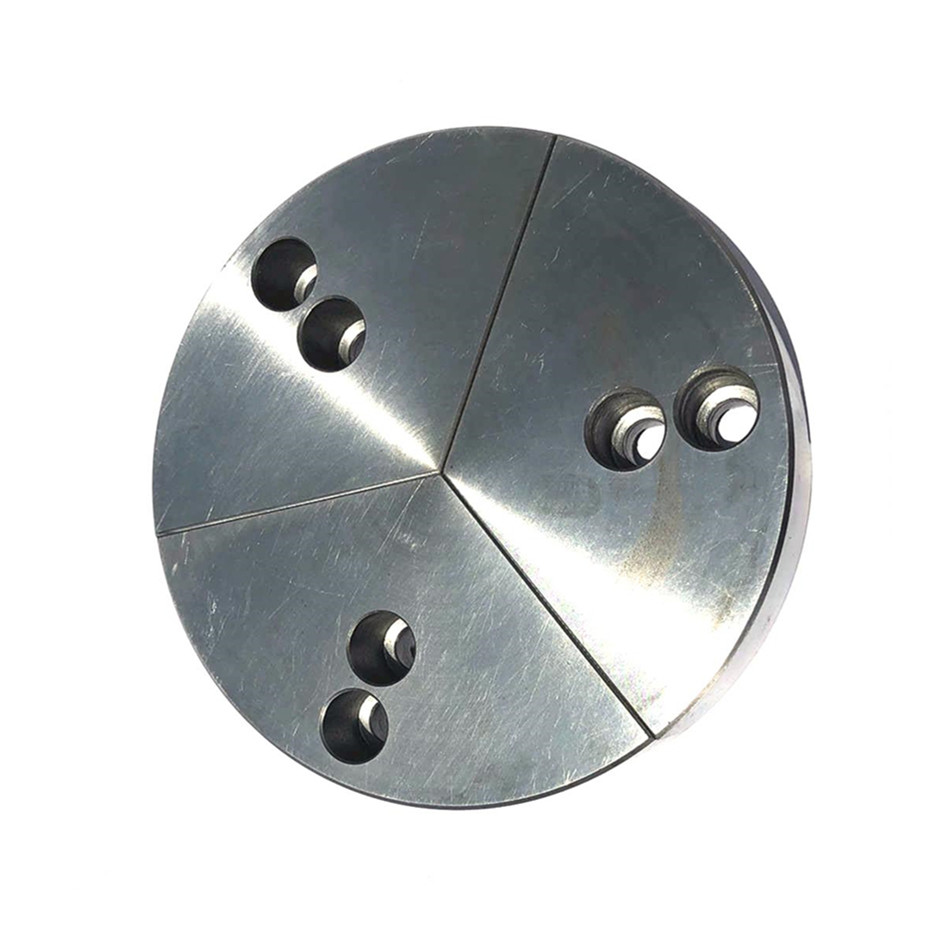

STANDARD FULL GRIP PIE JAWS FOR B215 15 INCH POWER CHUCK

Brand:OMATEI

Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

STANDARD FULL GRIP PIE JAWS FOR B215 15 INCH POWER CHUCK 0

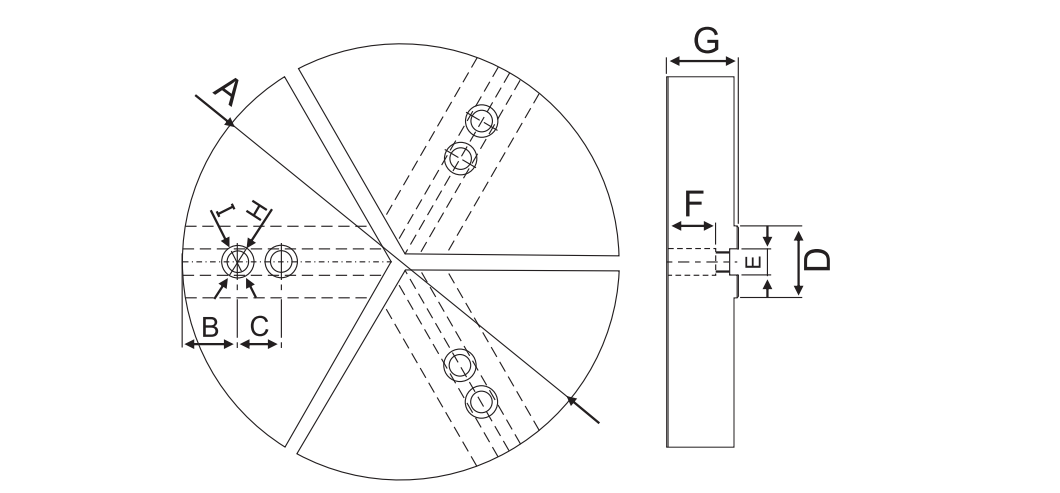

Serration Pitch:1.5mmx60° UNIT : mm

Model/Spec A B C D E F G H I GW KG
PJ-15 370 37 43 62 22/25.5 44 62 32 22 45.8



Customized spec can be made.

Other option of serration pitch: 3.0*60°
Subject to technical changes
