Product Name: | HIGHER FULL GRIP PIE JAWS FOR B208 8 INCH HYDRAULIC POWER CHUCK | Material: | 45#Steel/Aluminum |
---|---|---|---|
Function: | Clamping | Feature: | High Quality /High Precision/Higher |
Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
Highlight: | cnc lathe chuck jaws,steel pie jaws |

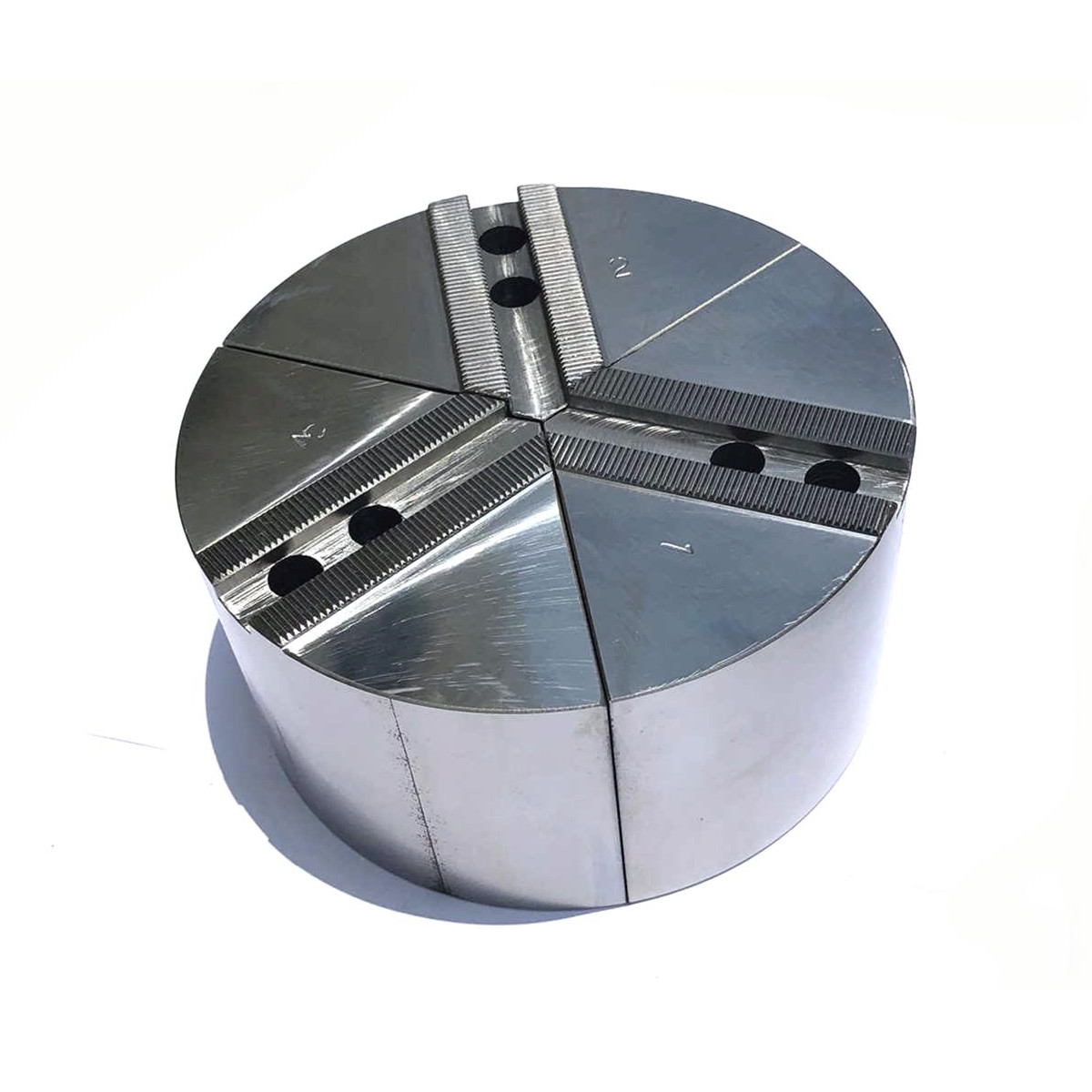

HIGHER FULL GRIP PIE JAWS FOR B208 8 INCH HYDRAULIC POWER CHUCK
Brand:OMATEI
Selection Guidance
1.Chuck brand and model name
2.Workpiece size and the gripping height
Advantage
1. For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2. Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3. Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4. Customized and non-standard jaws and be designed and OEM.
Serration Pitch:1.5mmx60° UNIT : mm

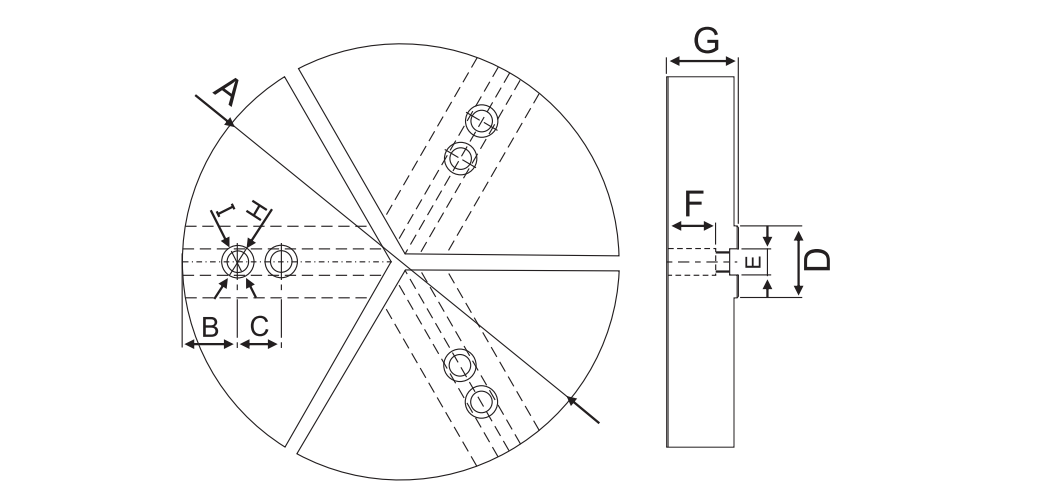

Model | A | B | C | D | E | F | G | H | I | GW KG/SET |
PJ-08H50/60/70 | 200 | 24 | 25 | 35 | 14 | 34/44/54 | 50/60/70 | 19 | 13 | 14/16.8/19.6 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
