| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | BIB,BFB, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | BIB BFB Precision jig board for vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | pneumatic machine vice, rotary vise for milling machine |
||

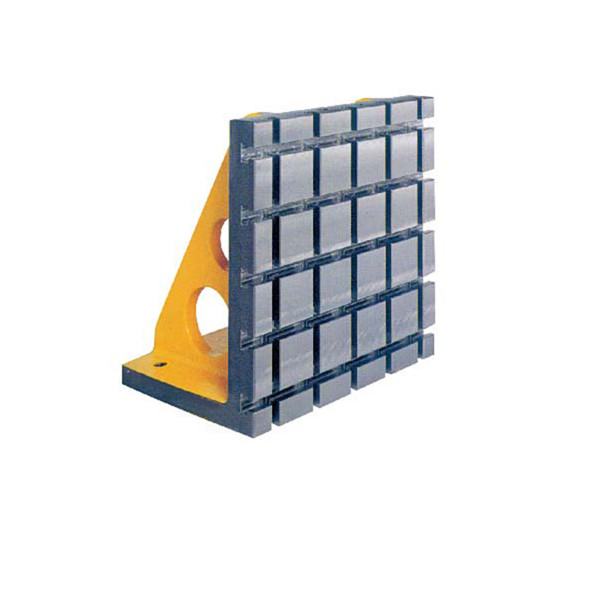

BIB BFB Precision jig board for vise

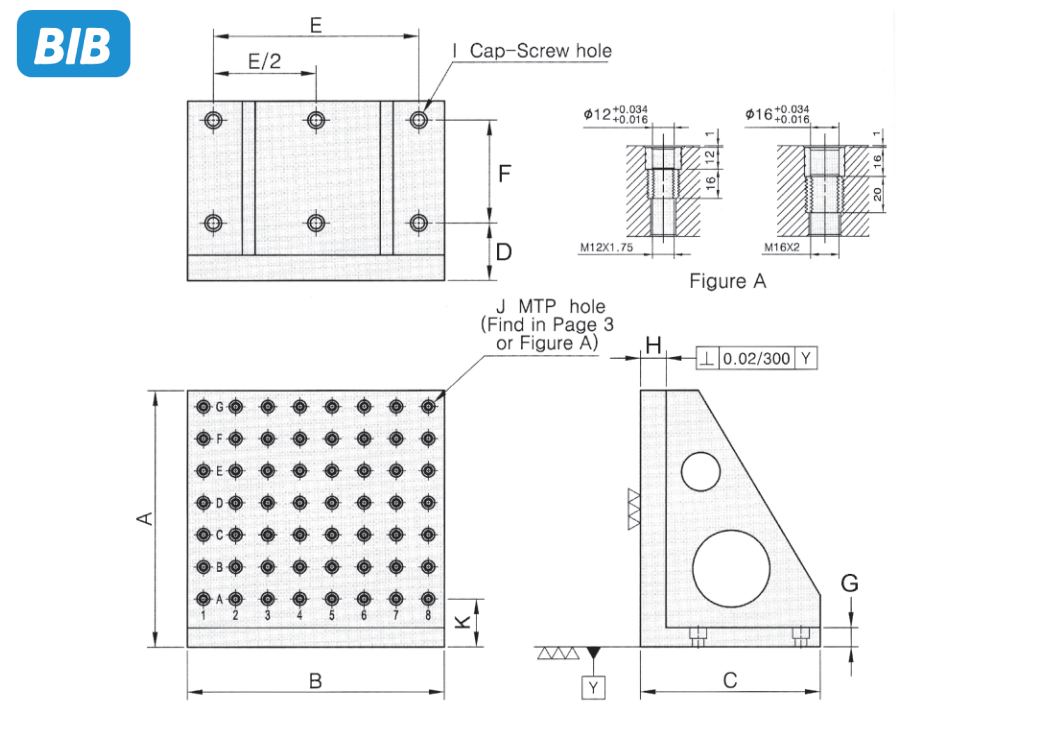

| MODEL | A | B | C | D | E | F | G | H | I | J | K | L | W.G. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BIB300x300-12 | 300 | 300 | 220 | 90 | 250 | 100 | 30 | 40 | ⌀18 | M12 | 75 | 50 | |
| BIB400x400-12 | 400 | 400 | 280 | 90 | 320 | 160 | 30 | 40 | ⌀18 | M12 | 75 | 87 | |
| BIB500x500-12 | 500 | 500 | 345 | 90 | 400 | 200 | 35 | 50 | ⌀18 | M12 | 75 | 176 | |
| BlB630x630-12 | 630 | 630 | 435 | 100 | 500 | 250 | 40 | 50 | ⌀18 | M12 | 40 | 300 | |
| BlB800x800-12 | 800 | 800 | 525 | 115 | 640 | 320 | 45 | 50 | ⌀18 | M12 | 75 | 477 | |
| BIB300x300-16 | 300 | 300 | 220 | 90 | 250 | 100 | 30 | 40 | ⌀18 | M12 | 75 | 46 | |
| BIB400x400-16 | 400 | 400 | 280 | 90 | 320 | 160 | 30 | 40 | ⌀18 | M16 | 75 | 85 | |
| BIB500x500-16 | 500 | 500 | 345 | 90 | 400 | 200 | 35 | 50 | ⌀18 | M16 | 75 | 170 | |
| BIB630x630-16 | 630 | 630 | 435 | 100 | 500 | 250 | 40 | 50 | ⌀18 | M16 | 40 | 295 | |
| BIB800x800-16 | 800 | 800 | 525 | 115 | 640 | 320 | 45 | 50 | ⌀18 | M16 | 75 | 470 | |

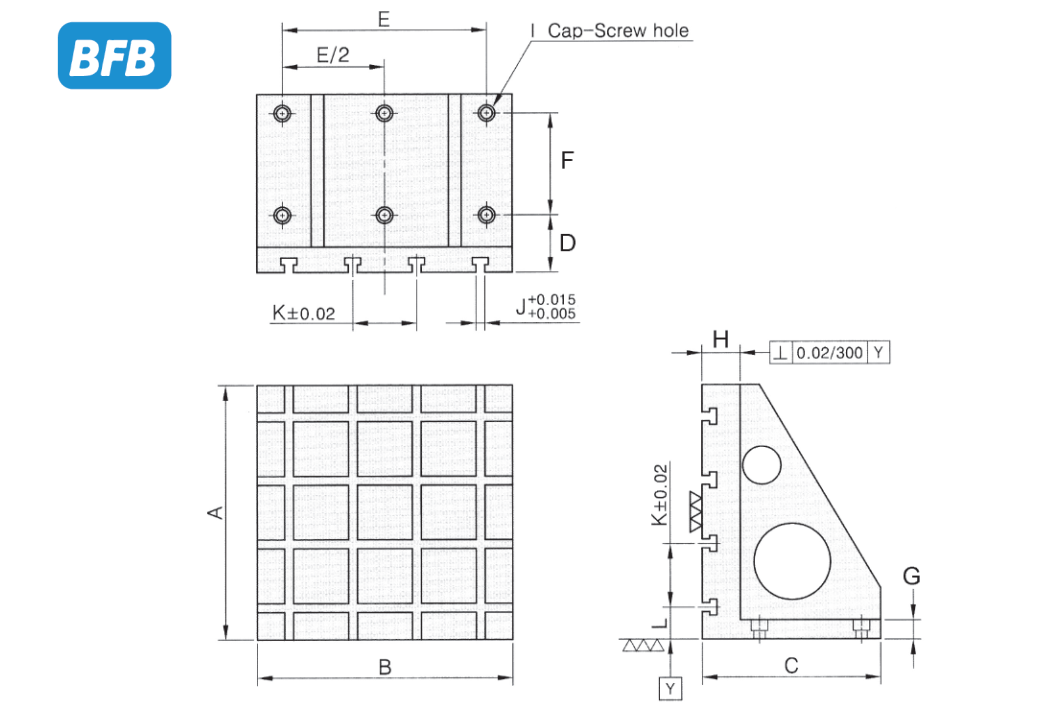

| BFB300x300-14 | 300 | 300 | 220 | 90 | 250 | 100 | 30 | 60 | ⌀18 | 14 | 100 | 50 | 52 |
| BFB400x400-14 | 400 | 400 | 300 | 90 | 320 | 160 | 30 | 60 | ⌀18 | 14 | 100 | 50 | 101 |
| BFB500x500-14 | 500 | 500 | 350 | 90 | 400 | 200 | 35 | 60 | ⌀18 | 14 | 100 | 50 | 184 |
| BFB630x630-14 | 630 | 630 | 450 | 100 | 500 | 250 | 40 | 65 | ⌀18 | 14 | 125 | 65 | 316 |
| BFB800x800-14 | 800 | 800 | 550 | 115 | 640 | 320 | 45 | 75 | ⌀18 | 14 | 150 | 100 | 566 |
| BFB300x300-18 | 300 | 300 | 220 | 90 | 250 | 100 | 30 | 60 | ⌀18 | 18 | 100 | 50 | 51 |
| BFB400x400-18 | 400 | 400 | 300 | 90 | 320 | 160 | 30 | 60 | ⌀18 | 18 | 100 | 50 | 101 |
| BFB500x500-18 | 500 | 500 | 350 | 90 | 400 | 200 | 35 | 60 | ⌀18 | 18 | 100 | 50 | 175 |
| BFB630x630-18 | 630 | 630 | 450 | 100 | 500 | 250 | 40 | 65 | ⌀18 | 18 | 125 | 65 | 285 |
| BFB800x800-18 | 800 | 800 | 550 | 115 | 640 | 320 | 45 | 75 | ⌀18 | 18 | 150 | 100 | 543 |
