| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | BCB,HCB,CBC, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | BCB HCB CBC Double face T slot for vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | pneumatic machine vice, cnc milling vise |
||

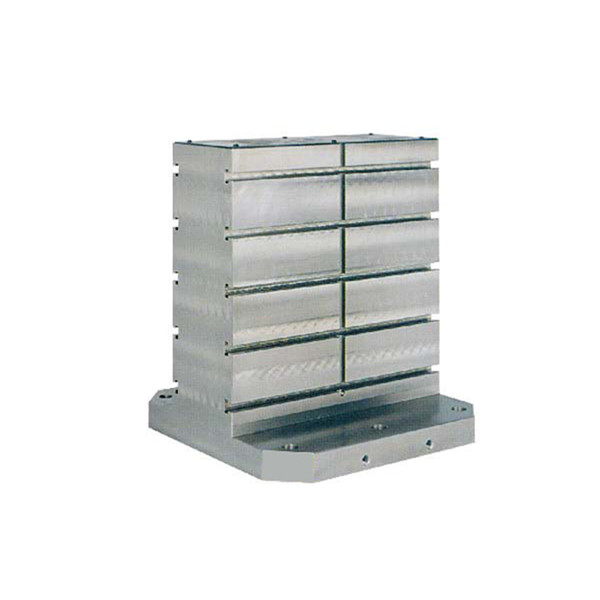

BCB HCB CBC Double face T slot for vise

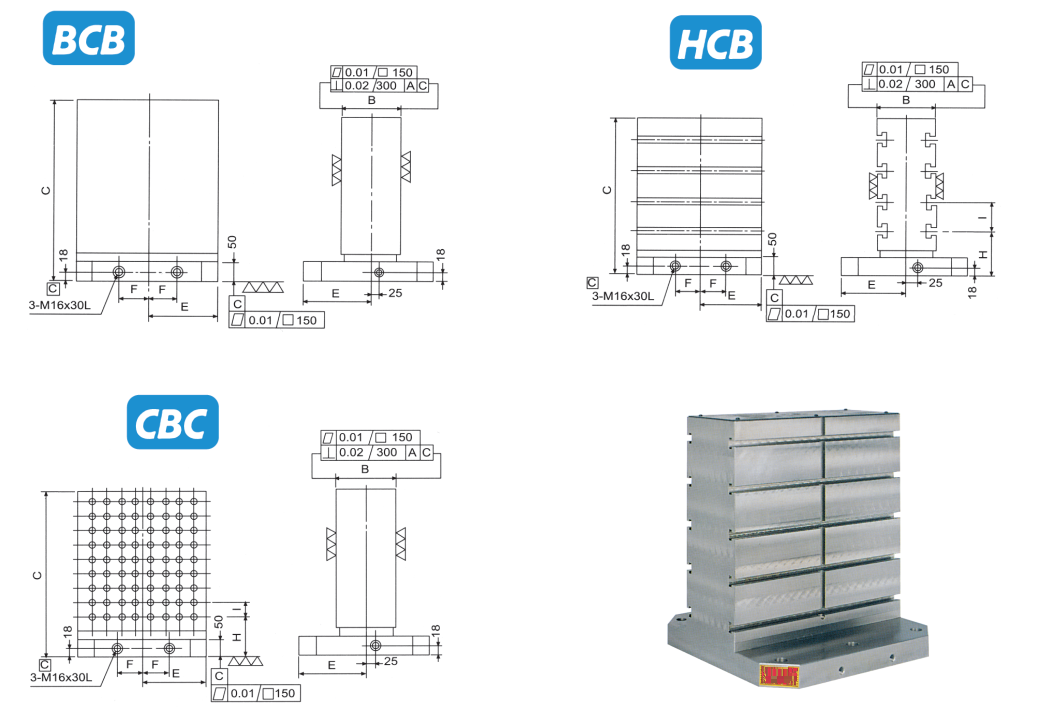

| MODEL | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| BCB-400x150x500P | 400 | 150 | 500 | 320 | 200 | 55 | 50 | |||
| BCB-500x200x600P | 500 | 200 | 600 | 400 | 250 | 75 | 60 | |||
| BCB-630x250x700 P | 630 | 250 | 700 | 500 | 315 | 100 | 65 | |||
| BCB-800x300x800P | 800 | 300 | 800 | 640 | 400 | 135 | 80 | |||
| HCB-400x150x500S | 400 | 150 | 500 | 320 | 200 | 55 | 50 | 100 | 100x4 | 18 |
| HCB-500x200x600S | 500 | 200 | 600 | 400 | 250 | 75 | 60 | 100 | 100x5 | 18 |
| HCB-630x250x700S | 630 | 250 | 700 | 500 | 315 | 100 | 65 | 150 | 125x5 | 18 |
| HCB-800x300x800S | 800 | 300 | 800 | 640 | 400 | 135 | 80 | 150 | 150x5 | 18 |
| CBC-400x150x500V | 400 | 150 | 500 | 320 | 200 | 55 | 50 | 125 | 50 | M16-7x8x2 |
| CBC-500x200x600V | 500 | 200 | 600 | 400 | 250 | 75 | 60 | 125 | 50 | M16-9x10-2 |
| CBC-630x250x700V | 630 | 250 | 700 | 500 | 315 | 100 | 65 | 125 | 50 | M16-11x12x2 |
| CBC-800x300x800V | 800 | 300 | 800 | 640 | 400 | 135 | 80 | 125 | 50 | M16-15x14x2 |
