Place of Origin: | CHINA |
---|---|
Brand Name: | NTH |
Model Number: | BJB,HIB,HJC, |
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | Good and firm package is suitable for sea and air shipping |
Delivery Time: | 3 work days available |
Payment Terms: | Western Union, T/T |
Supply Ability: | 1000 sets/M |

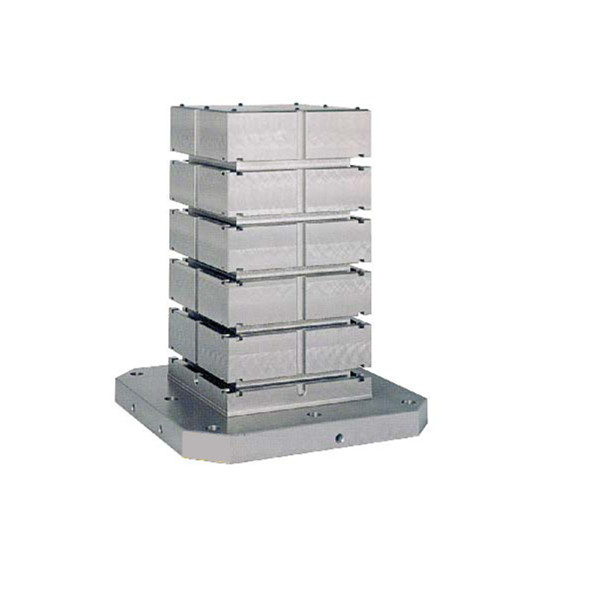

Product Name: | 4 Face T Slots For Vise | Material: | Nodular Cast Iron |
---|---|---|---|
Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
High Light: | rotary vise for milling machine,cnc milling vise |

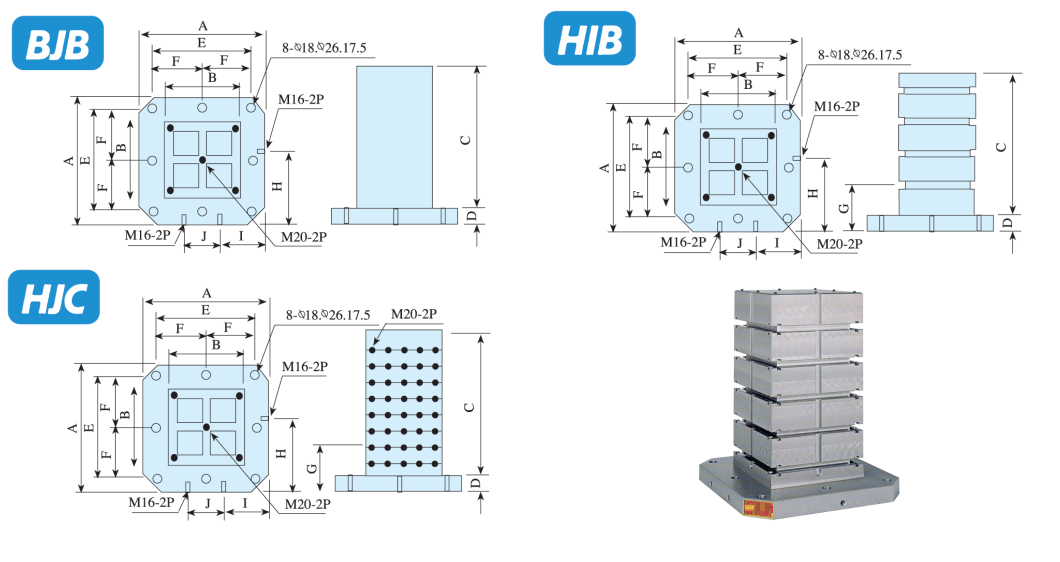

MODEL | A | B | C | D | E | F | G | H | I | J | K | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
BJB500x300B | 500 | 300 | 550 | 50 | 400 | 200 | 275 | 175 | 150 | |||
BJB500x350B | 500 | 350 | 500 | 50 | 400 | 200 | 275 | 175 | 150 | |||
BJB630x350B | 630 | 350 | 650 | 50 | 500 | 250 | 340 | 215 | 200 | |||
BJB630x400B | 630 | 400 | 650 | 50 | 500 | 250 | 340 | 215 | 200 | |||
BJB630x500B | 630 | 500 | 650 | 50 | 500 | 250 | 340 | 215 | 200 | |||
BJB800x550B | 800 | 550 | 800 | 50 | 640 | 320 | 425 | 265 | 270 | |||
HIB500x300T | 500 | 300 | 550 | 50 | 400 | 200 | 150 | 275 | 175 | 150 | 18 | 100X5 |
HIB500x350T | 500 | 350 | 500 | 50 | 400 | 200 | 150 | 275 | 175 | 150 | 18 | 100X5 |
HIB630x350T | 630 | 350 | 650 | 50 | 500 | 250 | 150 | 340 | 215 | 200 | 18 | 125X4 |
HIB630x400T | 630 | 400 | 650 | 50 | 500 | 250 | 150 | 340 | 215 | 200 | 18 | 125X5 |
HIB630x500T | 630 | 500 | 650 | 50 | 500 | 250 | 150 | 340 | 215 | 200 | 18 | 125X5 |
HIB800x550T | 800 | 550 | 800 | 50 | 640 | 320 | 150 | 425 | 265 | 270 | 18 | 150X5 |
HJC500x300H | 500 | 300 | 550 | 50 | 400 | 200 | 150 | 275 | 175 | 150 | M16 | 100X5 |
HJC500x350H | 500 | 350 | 500 | 50 | 400 | 200 | 150 | 275 | 175 | 150 | M16 | 100X5 |
HJC630x350H | 630 | 350 | 650 | 50 | 500 | 250 | 150 | 340 | 215 | 200 | M16 | 100X4 |
HJC630x400H | 630 | 400 | 650 | 50 | 500 | 250 | 150 | 340 | 215 | 200 | M16 | 100X6 |
HJC630x500H | 630 | 500 | 650 | 50 | 500 | 250 | 150 | 340 | 215 | 200 | M16 | 100X6 |
HJC800x550H | 800 | 550 | 800 | 50 | 640 | 320 | 150 | 425 | 265 | 270 | M16 | 100X7 |
