Place of Origin: | CHINA |
---|---|
Brand Name: | NTH |
Model Number: | HN-100,HN-150, |
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | Good and firm package is suitable for sea and air shipping |
Delivery Time: | 3 work days available |
Payment Terms: | Western Union, T/T |
Supply Ability: | 1000 sets/M |

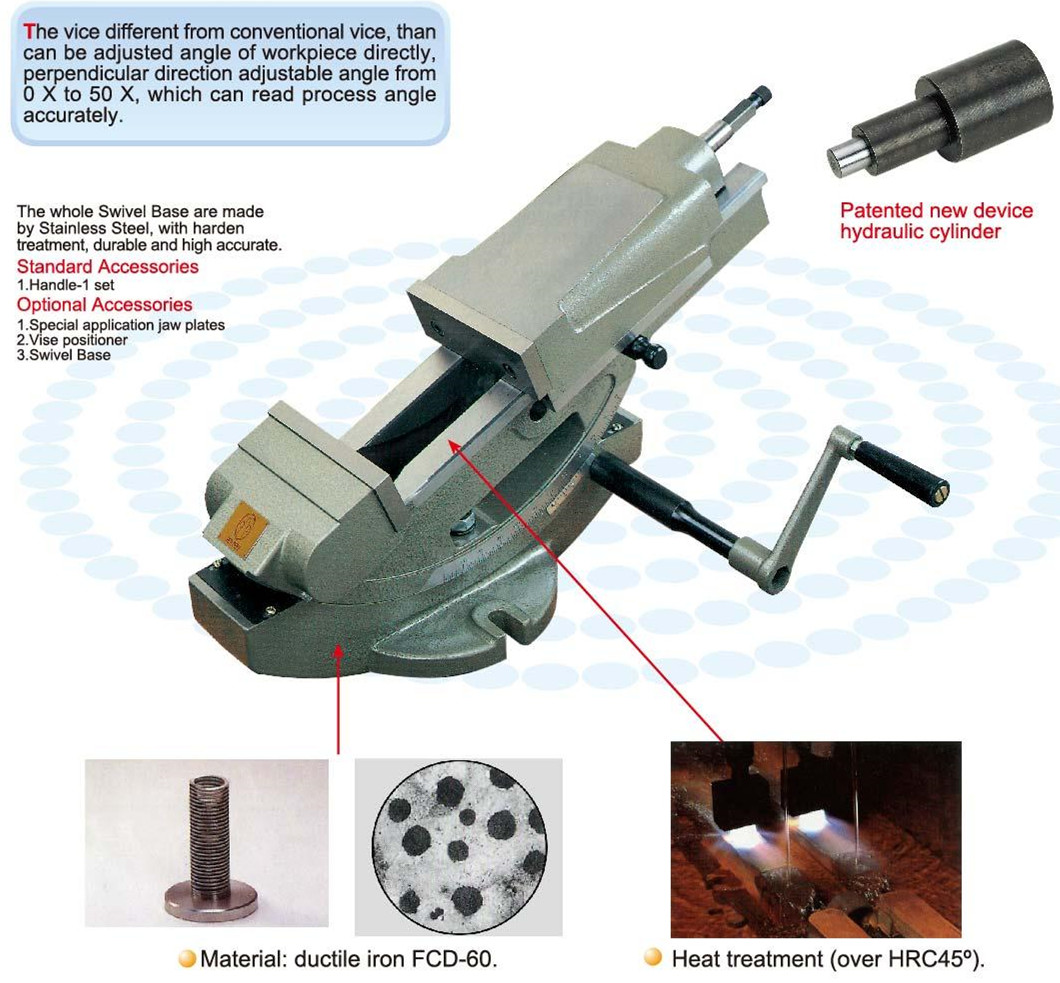

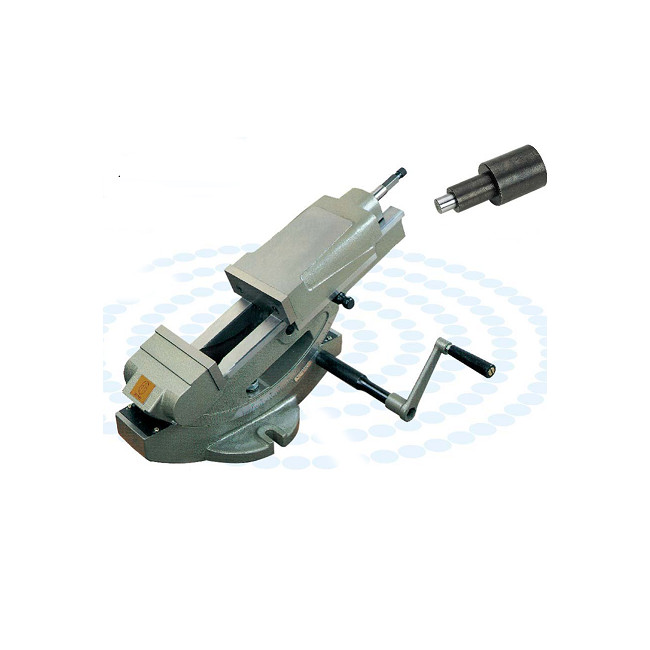

Product Name: | Hydraulic Pressure Tilting Precision Vice | Material: | Nodular Cast Iron |
---|---|---|---|
Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
High Light: | rotary vise for milling machine,cnc milling vise |

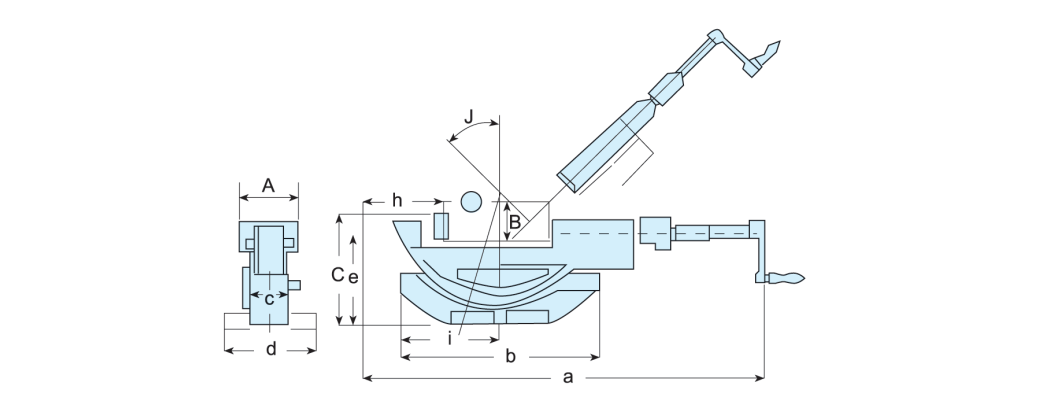

MODEL | A | B | C | a | b | c | d | e | h | i | j | Body weight | Base weight | Clamping force |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HN-100 | 100 | 36 | 170 | 525 | 330 | 65 | 162 | 177 | 90 | 172 | 50 | 24kg | 6kg | 2540kgf |
HN-150 | 154 | 53 | 300 | 801 | 415 | 95 | 242 | 237 | 121 | 241 | 50 | 68kg | 14kg | 4400kgf |
