| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | HS-100,HS-125,HS-150,HS-200, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

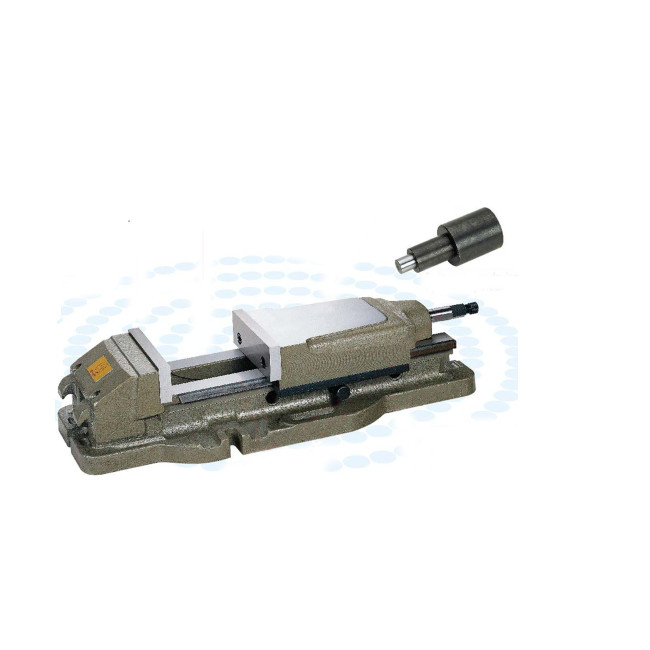

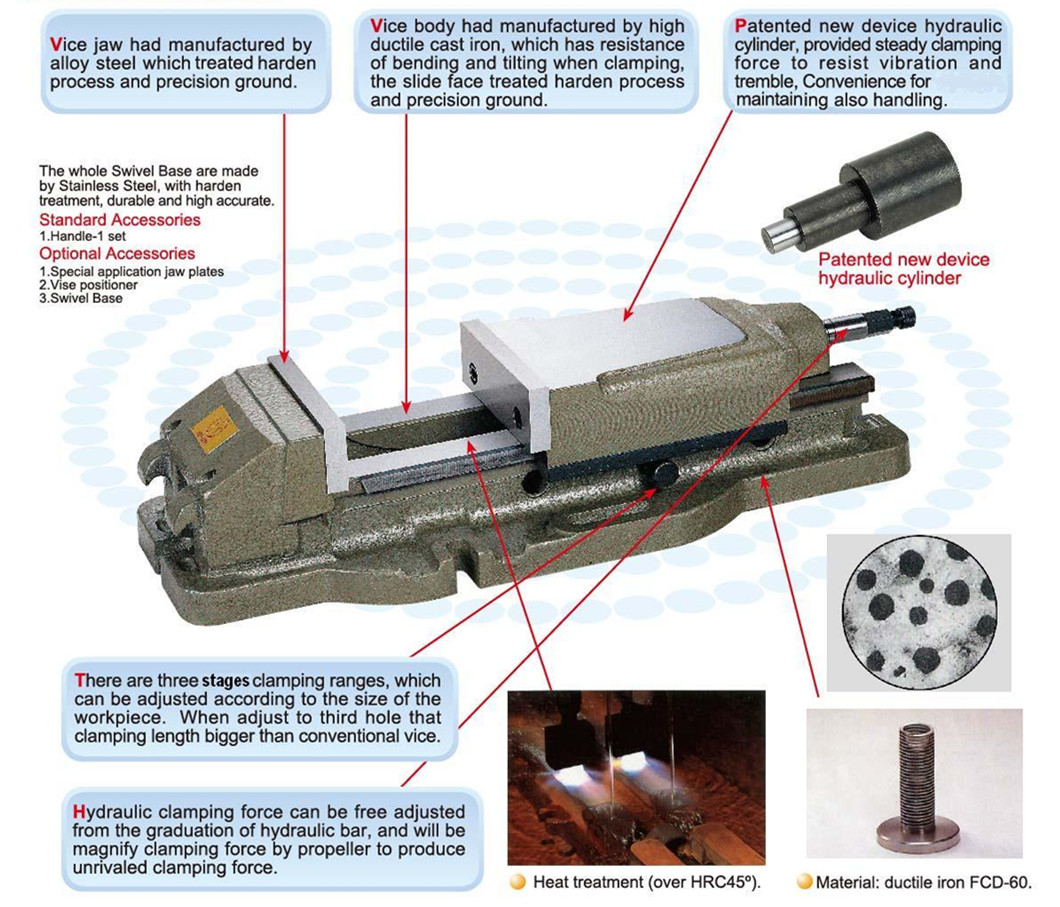

| Product Name: | Hydraulic Pressure Precision Vice | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| High Light: | pneumatic machine vice,cnc milling vise |
||
| MODEL | A | B | C | a | b | c | d | e | f | g | h | i | Clamping force | Body weight | Base weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HS-100 | 100 | 36 | 170 | 525 | 430 | 130 | 160 | 94 | 60 | 78 | 100 | 155 | 2500kgf | 16kg | 6kg |
| HS-125 | 125 | 46 | 220 | 670 | 540 | 165 | 185 | 118 | 72 | 97 | 117 | 185 | 3500kgf | 32kg | 10kg |
| HS-150 | 150 | 51 | 300 | 800 | 620 | 200 | 240 | 133 | 82 | 116 | 125 | 247 | 4400kgf | 54kg | 16kg |
| HS-200 | 200 | 62 | 300 | 900 | 700 | 240 | 280 | 162 | 100 | 160 | 165 | 266 | 5500kgf | 95kg | 30kg |
