| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MPV-160LL,MPV-200LL,MB-160LL,MB-200LL, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |
| Product Name: | Super Precision Extra Open Powerful Vice | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| Highlight: | pneumatic machine vice,cnc milling vise |
||

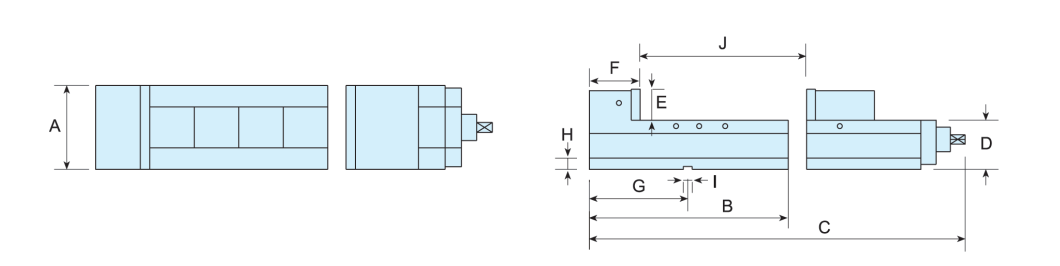

| MODEL | A | B | C | D | E | F | G | H | I | J | N.W. | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPV-160LL | 160 | 203 | 478 | 100 | 60 | 103 | 100 | 23 | 18 | 150-Limit | 50kg | 4400kgf |
| MPV-200LL | 200 | 208 | 488 | 110 | 60 | 108 | 100 | 23 | 18 | 150-Limit | 70kg | 5500kgf |
| MB-160LL | 160 | 203 | 433 | 100 | 60 | 103 | 100 | 23 | 18 | 150-Limit | 50kg | - |
| MB-200LL | 200 | 208 | 443 | 110 | 60 | 108 | 100 | 23 | 18 | 150-Limit | 70kg | - |
