| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | VSC-100,VSC-130,VSC-160,VSC-200, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

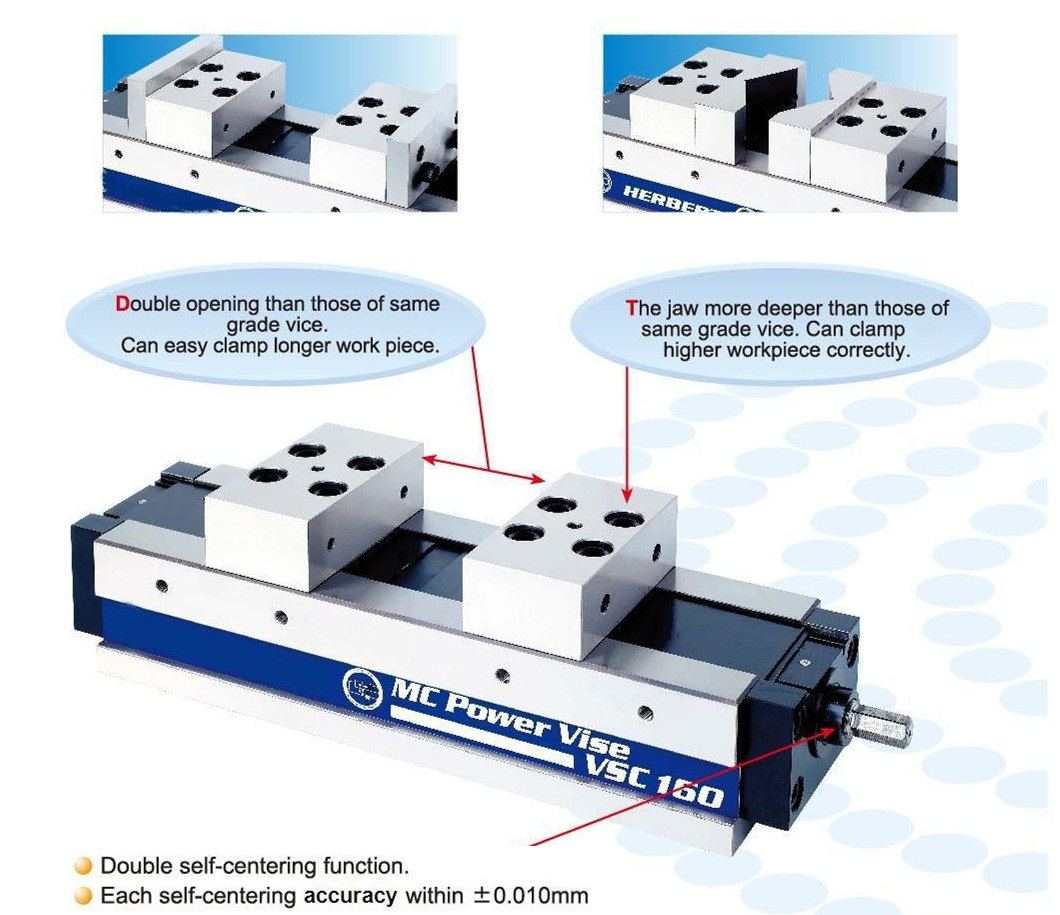

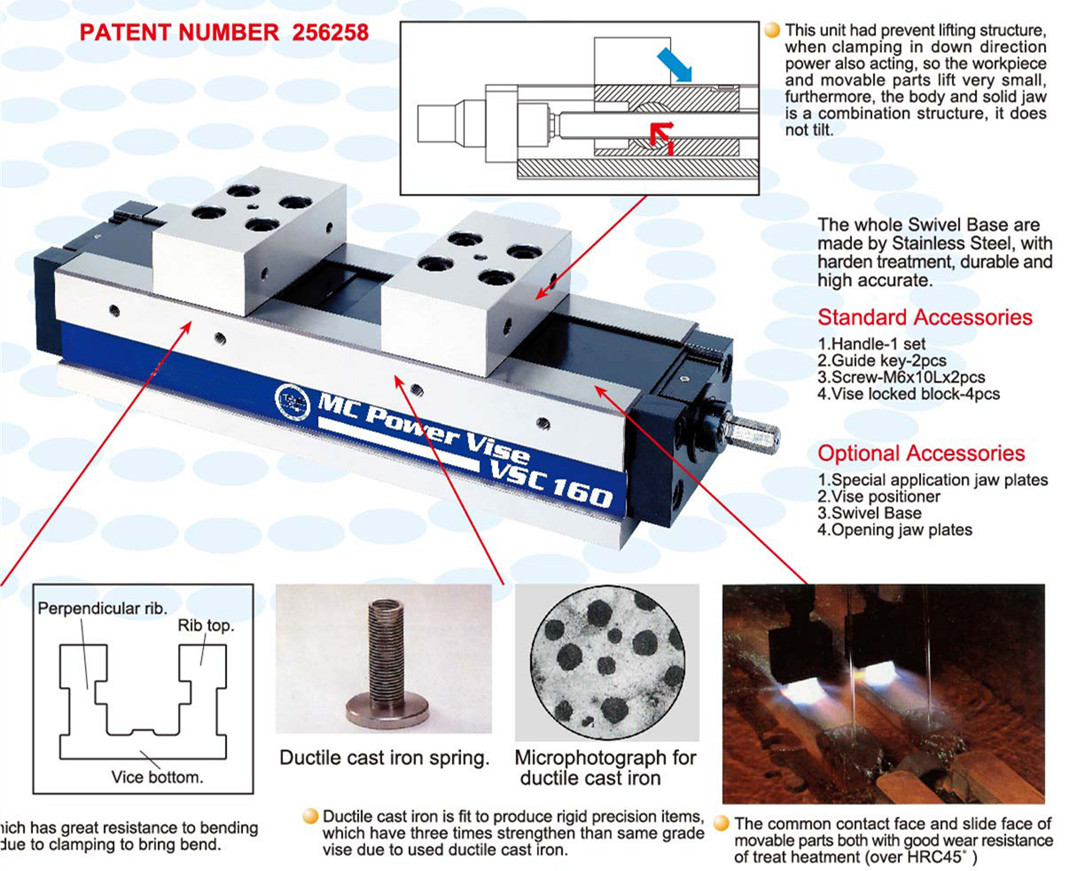

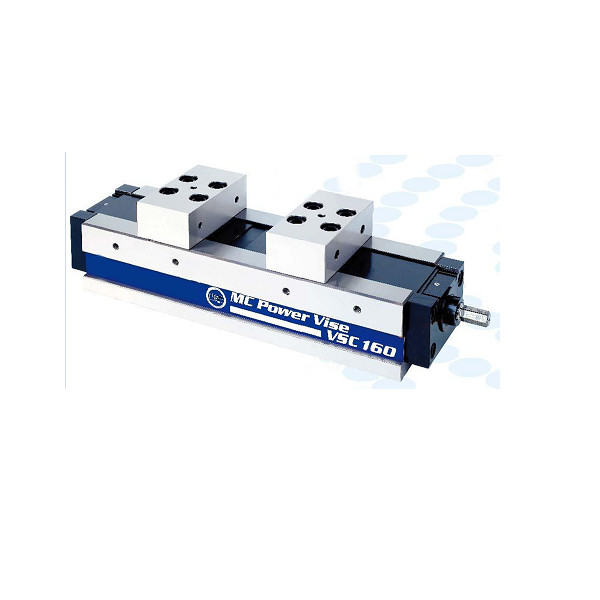

| Product Name: | Double Clamping Precision Vice | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| High Light: | pneumatic machine vice,cnc milling vise |
||

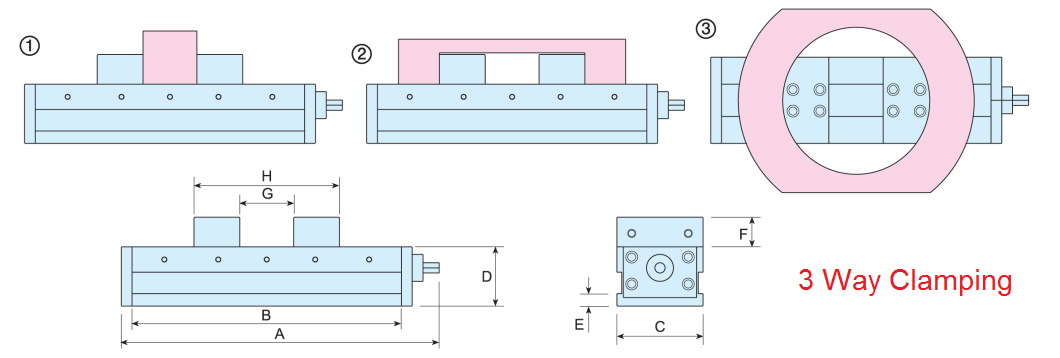

| MODEL | A | B | C | D | E | F | G | H | N .W. |
|---|---|---|---|---|---|---|---|---|---|
| VSC-100 | 410 | 135 | 101 | 95 | 23 | 40 | 60-170 | 220-305 | 30kg |
| VSC-130 | 510 | 150 | 130 | 100 | 23 | 50 | 60-250 | 220-405 | 40kg |
| VSC-160 | 590 | 165 | 160 | 110 | 23 | 55 | 60-320 | 230-485 | 60kg |
| VSC-200 | 665 | 180 | 200 | 120 | 23 | 60 | 60-365 | 260-560 | 100kg |
