| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Certification: | CE |
| Model Number: | MPV-100A,MPV-130A,MPV-160A,MPV-200A, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

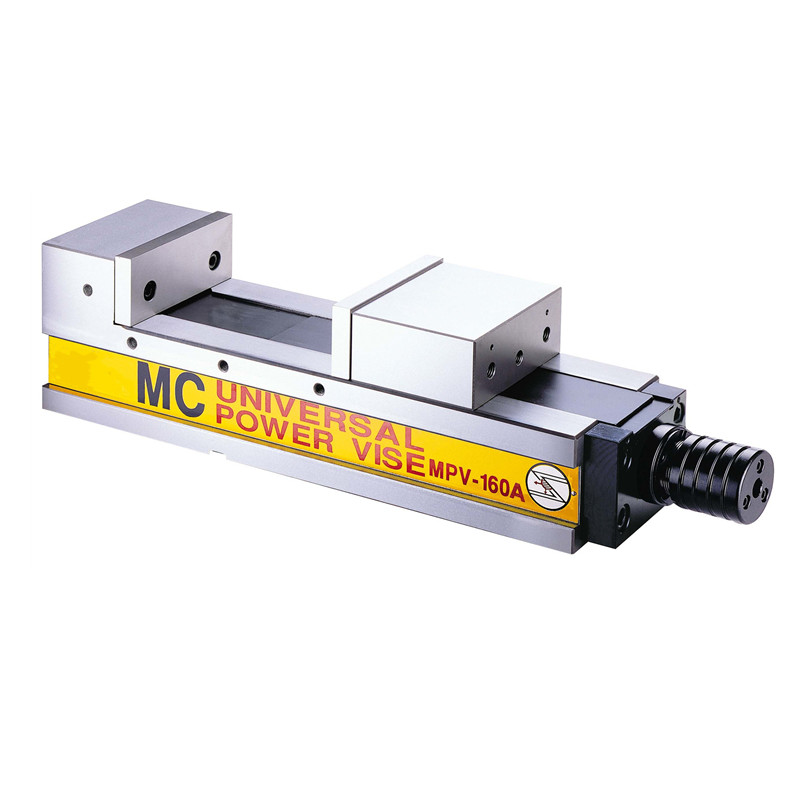

| Product Name: | Powerful Type Super Precision Vice | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| Highlight: | rotary vise for milling machine,cnc milling vise |
||

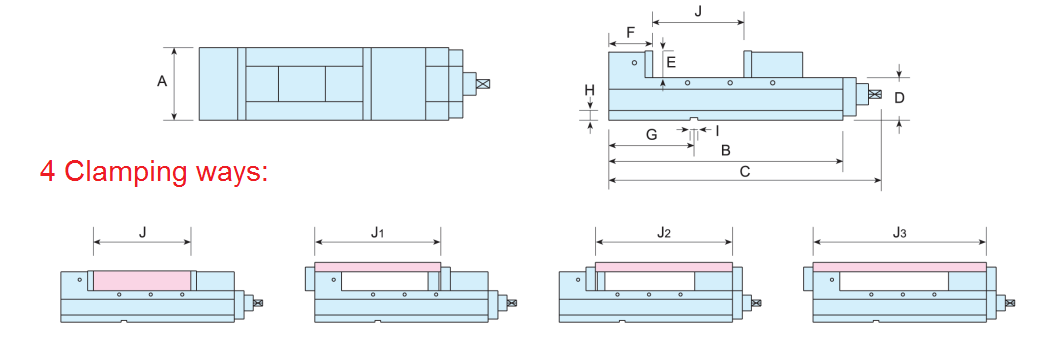

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N .W. | G.W | CLAMPING FORCE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPV-100A | 100 | 400 | 530 | 85 | 45 | 80 | 110 | 23 | 18 | 200 | 230 | 260 | 340 | 32kg | 35kg | 4000kgf |
| MPV-130A | 130 | 450 | 580 | 95 | 50 | 85 | 135 | 23 | 18 | 240 | 285 | 320 | 405 | 45kg | 48kg | 4500kgf |
| MPV-160A | 160 | 550 | 680 | 100 | 60 | 103 | 200 | 23 | 18 | 300 | 380 | 400 | 500 | 63kg | 66kg | 5000kgf |
| MPV-200A | 200 | 600 | 730 | 110 | 60 | 108 | 220 | 23 | 18 | 340 | 438 | 470 | 578 | 92kg | 104kg | 5500kgf |
