VCP-G VCP-L Mechanical type super precision vise

Basic Information

Place of Origin:	CHINA
Brand Name:	NTH
Model Number:	Mechanical type super precision vise

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Good and firm package is suitable for sea and air shipping
Delivery Time:	3 work days available
Payment Terms:	Western Union, T/T
Supply Ability:	1000 sets/M

Contact Now

Product Name:	Mechanical Type Super Precision Vise	Material:	Nodular Cast Iron
Usage:	Gripping	Feature:	High Precision/Stable/High Quality
Size:	Refer To The Specification	Precision:	Within 0.02mm/100mm
High Light:	pneumatic machine vice , rotary vise for milling machine

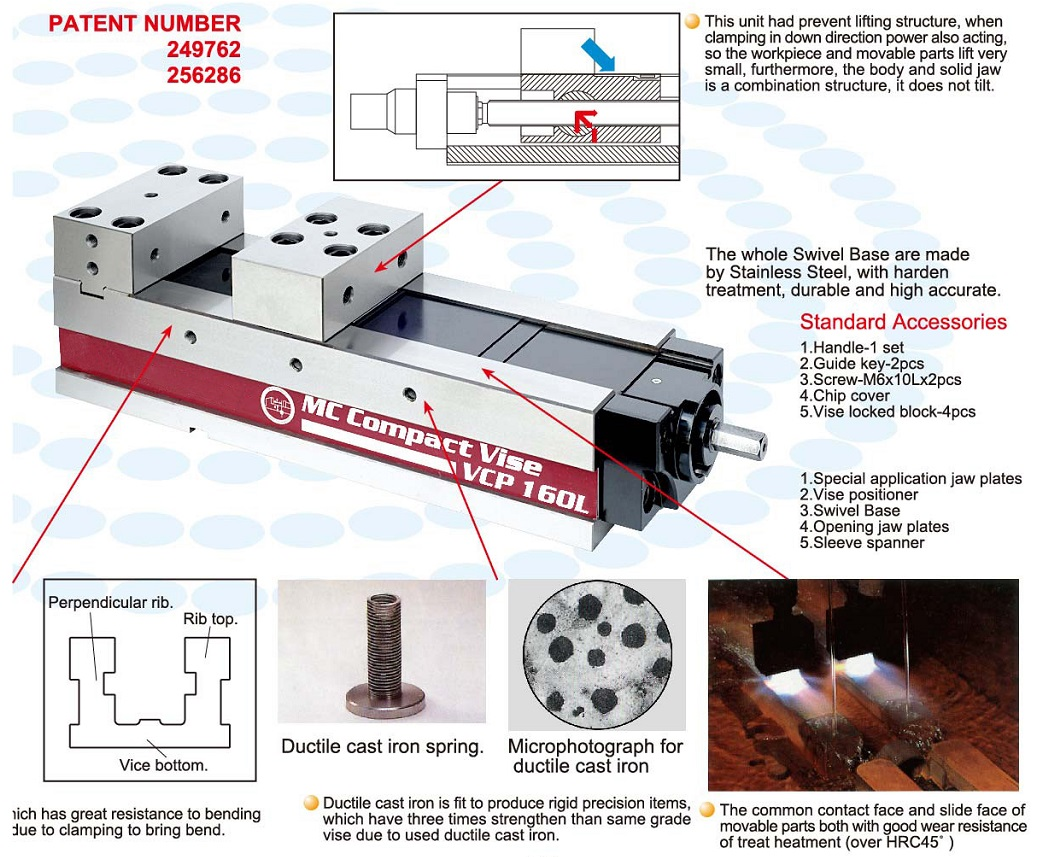

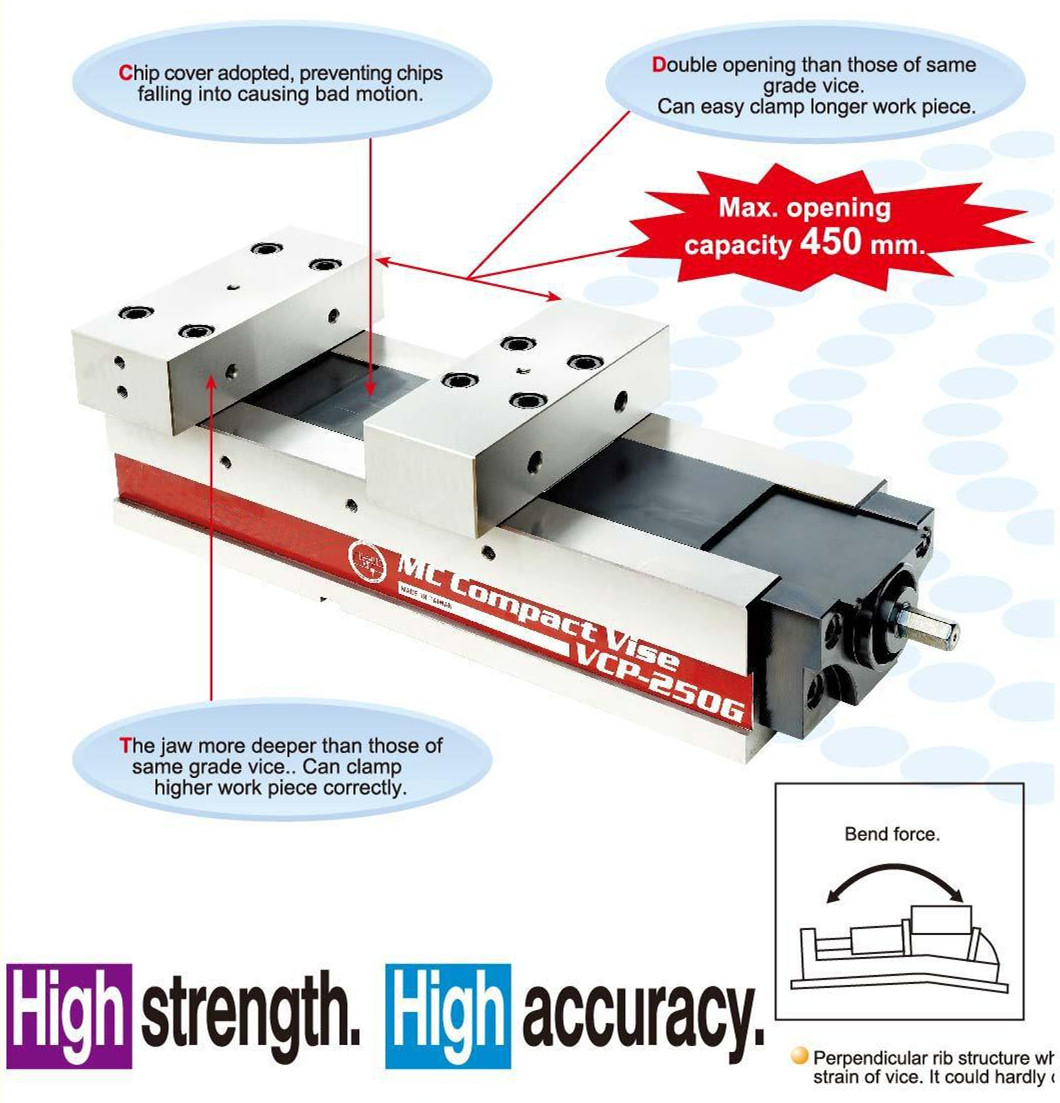

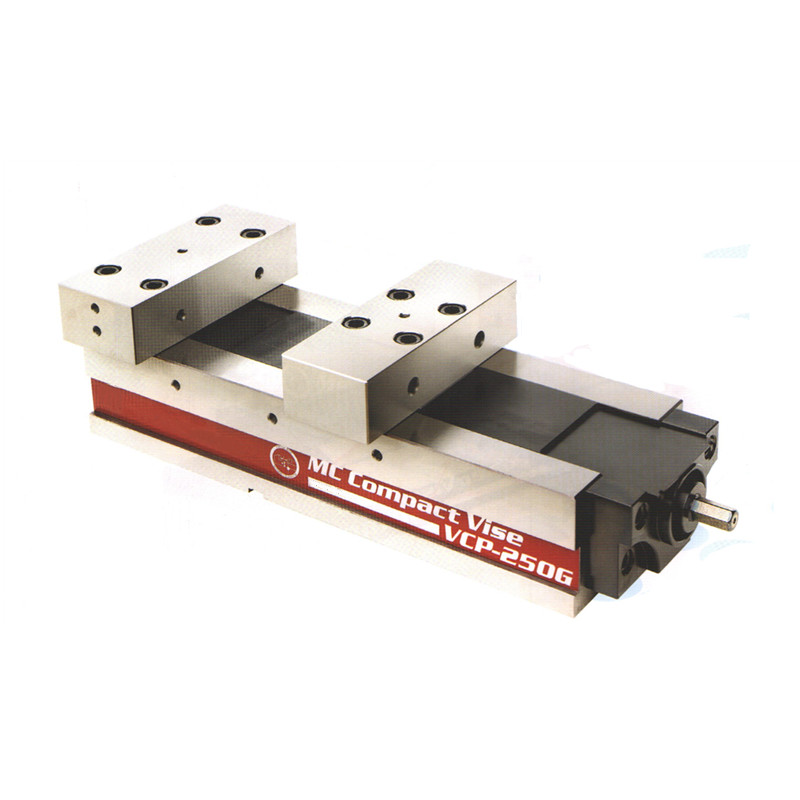

Mechanical type super precision vise

VCP-G VCP-L Mechanical type super precision vise 0

VCP-G VCP-L Mechanical type super precision vise 1

MODEL	A	B	C	D	E	F	G	H	I	J	J1	N .W.	G.W.	Clamping force
VCP-200G	200	590	680	110	55	85	150	23	18	400	485	68kg	73kg	-
VCP-250G	250	665	755	120	60	100	220	23	18	450	550	ll0kg	126kg	-
VCP-160L	160	590	680	110	55	85	150	23	18	400	485	66kg	71kg	-
VCP-200L	200	665	755	120	60	100	220	23	18	450	550	ll0kg	117kg	-

VCP-G VCP-L Mechanical type super precision vise 2
