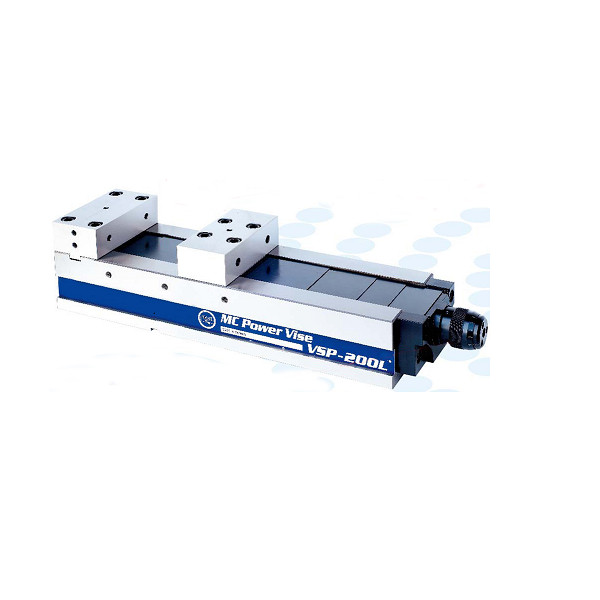

VSP-L Super long open type vice

VSP-L Super long open type vice
VSP-L Super long open type vice
Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: VSP-160L,VSP-200L
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days available
Payment Terms: Western Union, T/T
Supply Ability: 1000 sets/M
Contact Now
Product Name: Super Long Open Type Vice Material: Nodular Cast Iron
Usage: Gripping Feature: High Precision/Stable/High Quality
Size: Refer To The Specification Precision: Within 0.02mm/100mm
High Light:

rotary vise for milling machine

,

cnc milling vise

Super long open type vice

VSP-L Super long open type vice 0

VSP-L Super long open type vice 1

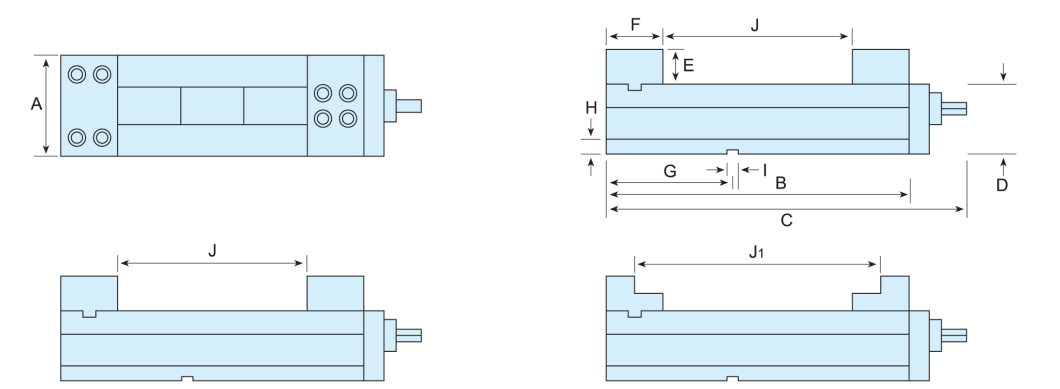

MODEL A B C D E F G H I J J1 N.W. G.W. Clamping force
VSP-160L 160 590 715 110 55 85 150 23 18 400 480 69kg 72kg 5000kgf
VSP-200L 200 665 790 120 60 100 220 23 18 450 550 115kg 120kg 5000kgf

VSP-L Super long open type vice 2
