VSP-G Super width fixed pressure powerful precision vise

Basic Information

Place of Origin:	CHINA
Brand Name:	NTH
Model Number:	VSP-200G,VSP-250G,

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Good and firm package is suitable for sea and air shipping
Delivery Time:	3 work days available
Payment Terms:	Western Union, T/T
Supply Ability:	1000 sets/M

Contact Now

Product Name:	Super Width Fixed Pressure Powerful Precision Vise	Material:	Nodular Cast Iron
Usage:	Gripping	Feature:	High Precision/Stable/High Quality
Size:	Refer To The Specification	Precision:	Within 0.02mm/100mm
High Light:	rotary vise for milling machine , cnc milling vise

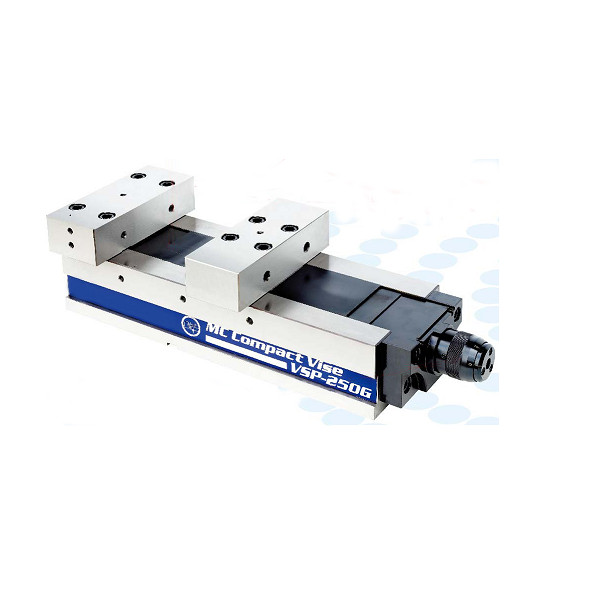

Super width fixed pressure powerful precision vise

VSP-G Super width fixed pressure powerful precision vise 0

VSP-G Super width fixed pressure powerful precision vise 1

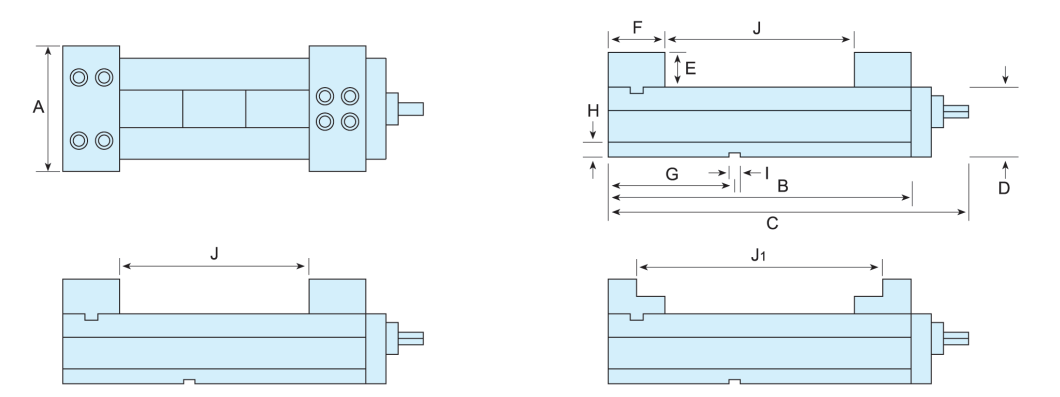

MODEL	A	B	B	D	E	F	G	H	I	J	J1	N .W.	G.W.	Clamping force
VSP-200G	200	590	715	110	55	85	150	23	18	400	480	70kg	75kg	5000kgf
VSP-250G	250	665	790	120	60	100	220	23	18	450	550	120kg	128kg	5000kgf

VSP-G Super width fixed pressure powerful precision vise 2
