| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MBT-160 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

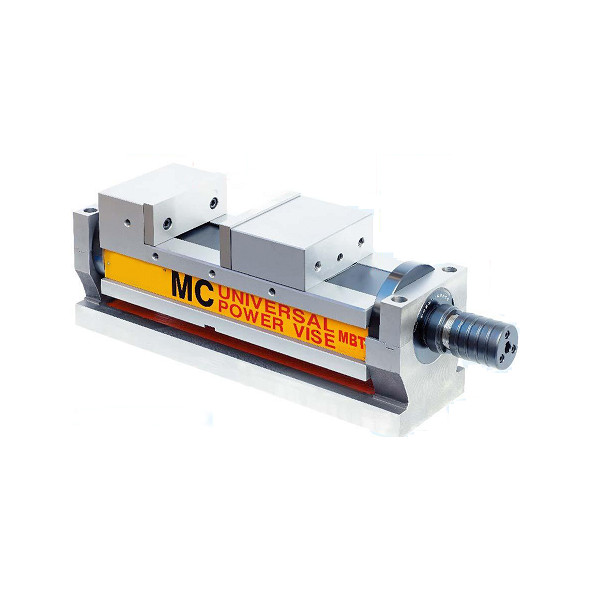

| Product Name: | Double Wrench Mechanical Type Precision Vice | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| High Light: | rotary vise for milling machine,cnc milling vise |
||
|

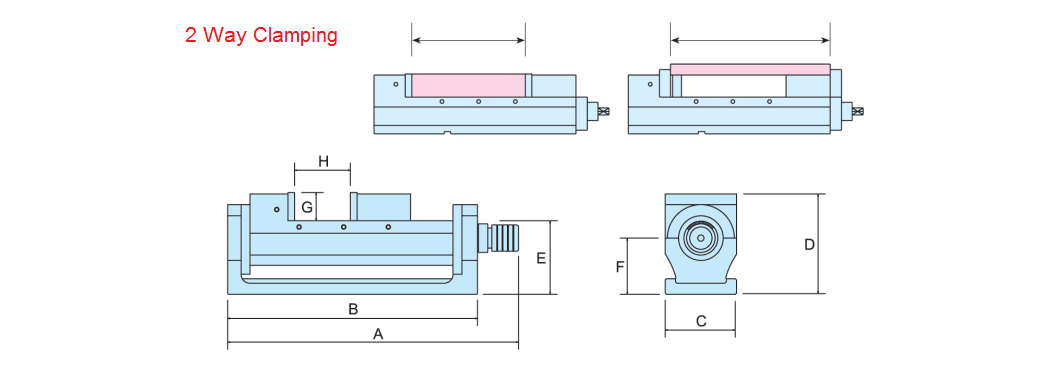

MODEL |
A | B | C | D | E | F | G | H |
ADJUSTABLE ANGLE |
N.W. |
G.W. |
POWER |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBT-160 | 645 | 550 | 160 | 225 | 165 | 126 | 63 | 200 | 0°-50° | 75kg | 80kg | 5500kgf |
