| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TMV-100,TMV-130,TMV-160 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

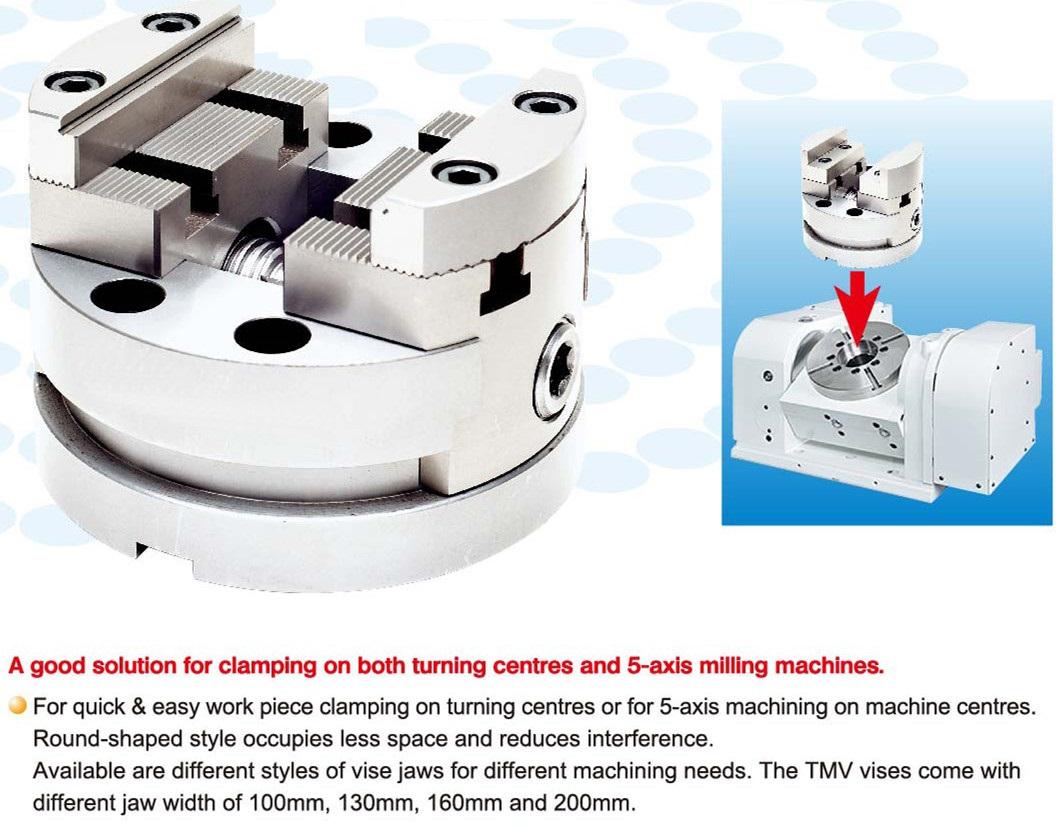

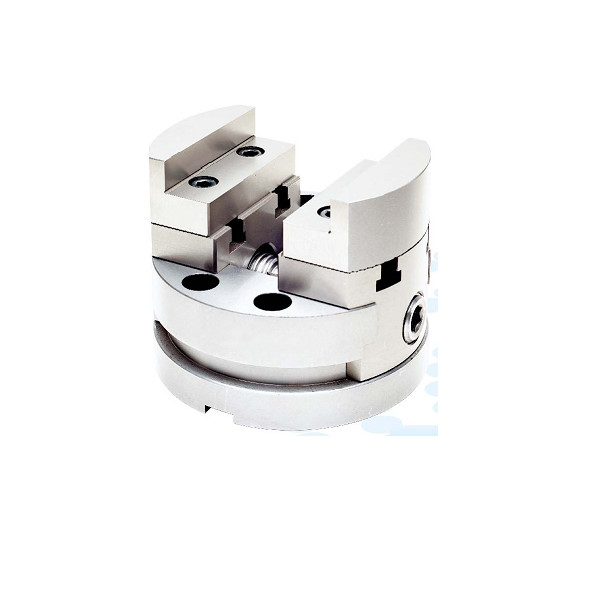

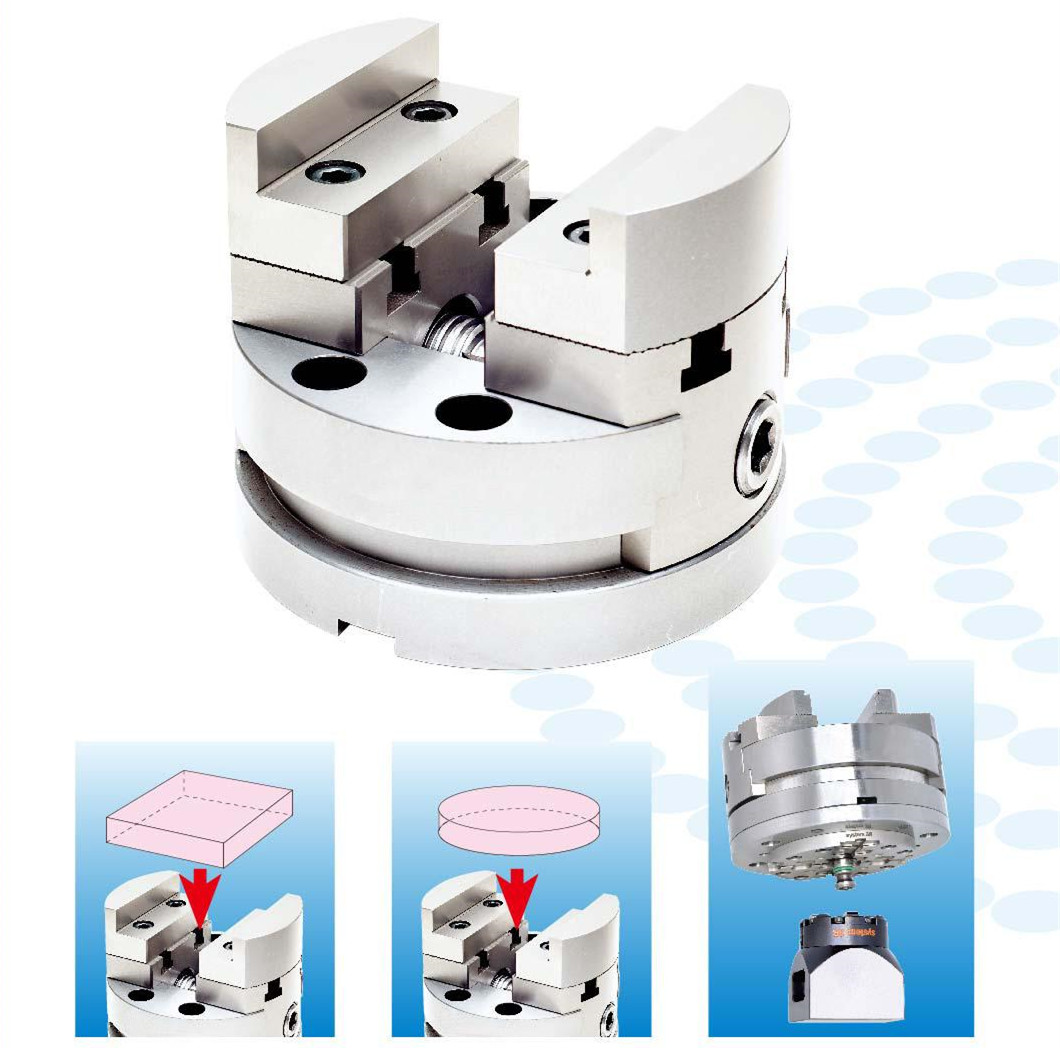

| Product Name: | Special Purpose Vise For 5 Side Machining Centers | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Axis: | 5 Axis |
| High Light: | rotary vise for milling machine,cnc milling vise |
||

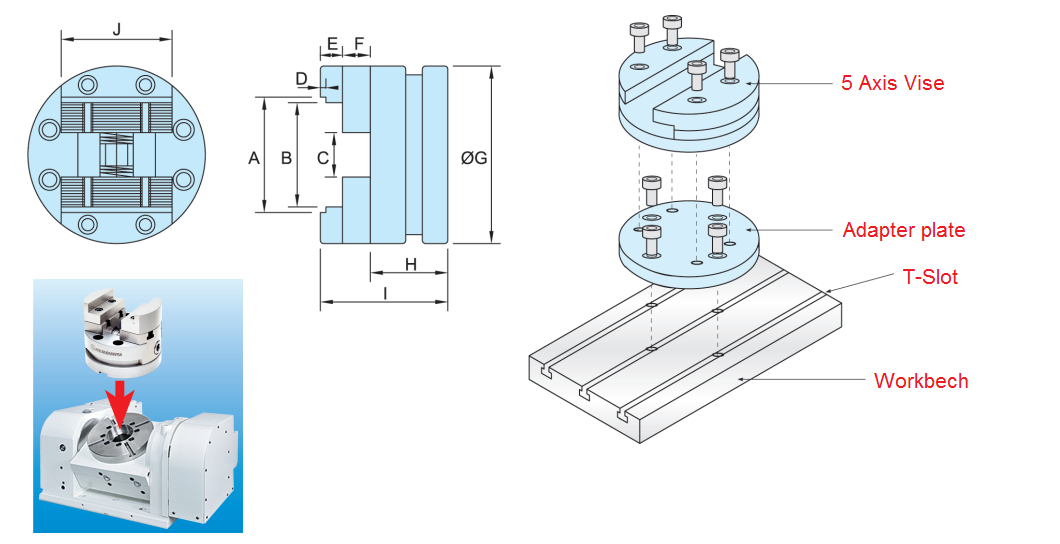

| MODEL | A | B | C | D | E | F | G | H | I | J |
| TMV-100 | 105 | 95 | 40 | 5 | 20 | 25 | 160 | 70 | 115 | 100 |
| TMV-130 | 135 | 125 | 50 | 5 | 20 | 25 | 210 | 80 | 125 | 130 |
| TMV-160 | 165 | 155 | 60 | 5 | 25 | 25 | 250 | 90 | 140 | 160 |
