MB-AB Double wrench mechanical type precision vice

Basic Information

Place of Origin:	CHINA
Brand Name:	NTH
Model Number:	MB-100AB,MB-130AB,MB-160AB,MB-200AB,

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Good and firm package is suitable for sea and air shipping
Delivery Time:	3 work days available
Payment Terms:	Western Union, T/T
Supply Ability:	1000 sets/M

Contact Now

Product Name:	Double Wrench Mechanical Type Precision Vice	Material:	Nodular Cast Iron
Usage:	Gripping	Feature:	High Precision/Stable/High Quality
Size:	Refer To The Specification	Precision:	Within 0.02mm/100mm
High Light:	rotary vise for milling machine , cnc milling vise

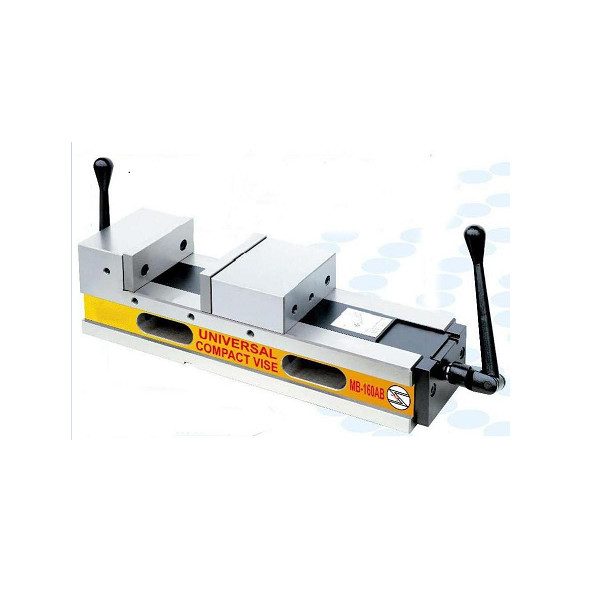

Double wrench mechanical type precision vice

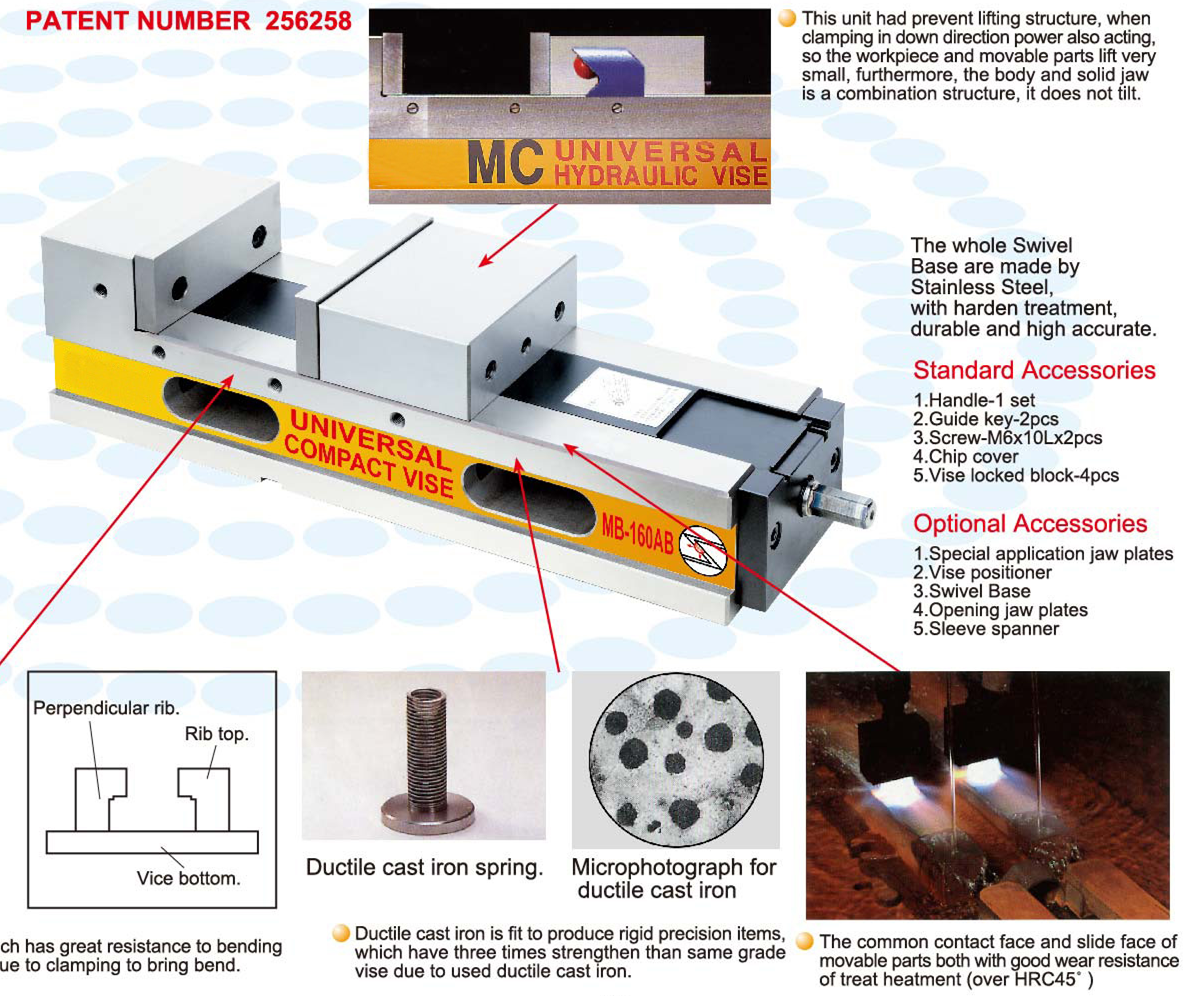

MB-AB Double wrench mechanical type precision vice 0

MB-AB Double wrench mechanical type precision vice 1

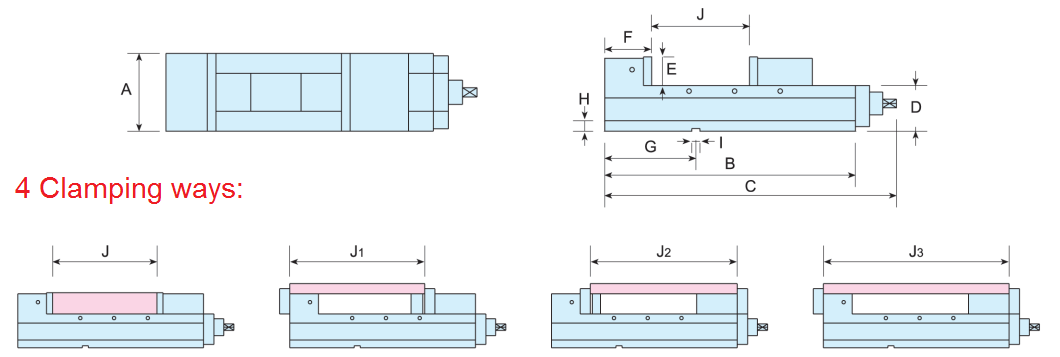

MODEL	A	B	C	D	E	F	G	H	I	J	J1	J2	J3	N.W.	G.W.
MB-100AB	100	400	445	85	45	80	110	23	18	200	230	260	340	27kg	30kg
MB-130AB	130	450	495	95	50	85	135	23	18	240	285	320	405	40kg	43kg
MB-160AB	160	550	595	100	60	103	200	23	18	300	380	400	500	58kg	61kg
MB-200AB	200	600	645	110	65	108	220	23	18	340	438	470	578	87kg	99kg

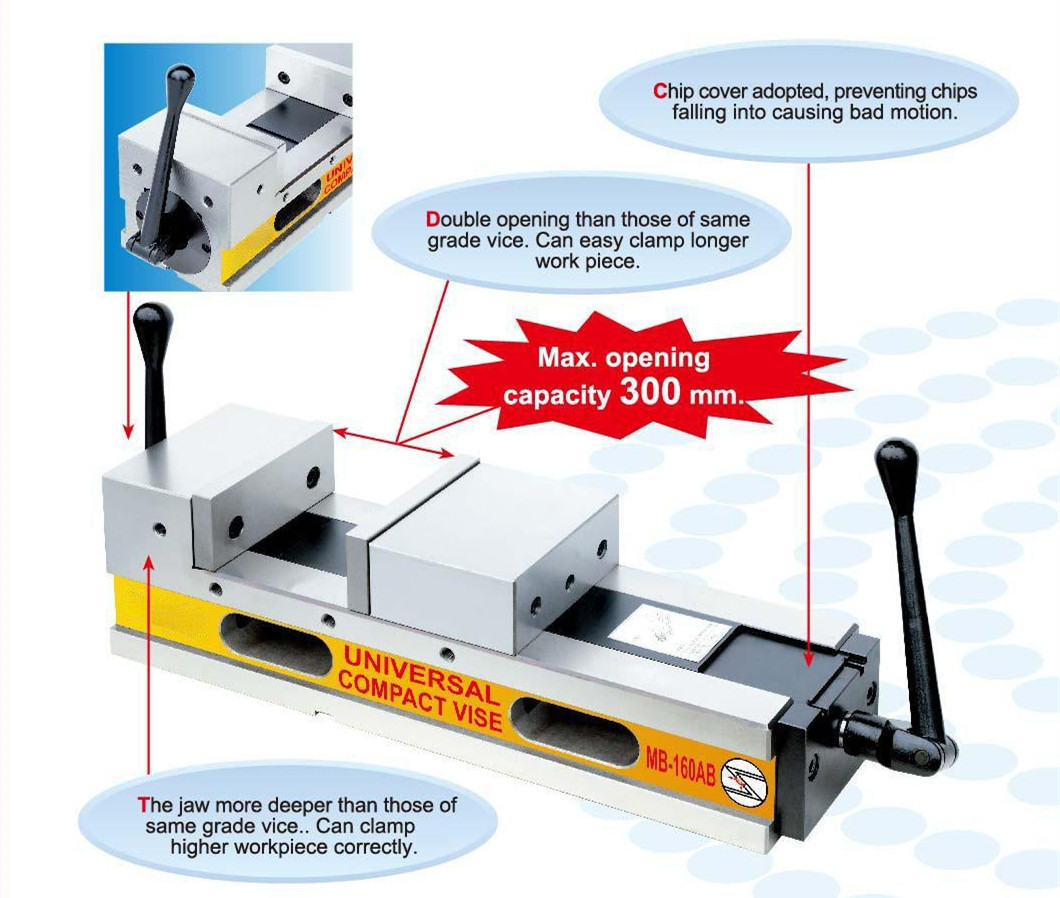

MB-AB Double wrench mechanical type precision vice 2
