| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | OMSR-D1, OMSR-D2, OMSR-D3, OMSR-D4, OMSR-D5, OMSR-D6, OMSR-D7, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HIGH PRECISION SELF CENTERING STEADY REST OMSR-D MODEL | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | Creative Design/Wide Clamping/High Precision | |
| Usage: | Fixture/Gripping/Prop Up | Service: | Cylinders Differing From Standard Available On Request |
| Highlight: | hydraulic self centering steady rest, lathe steady rest |
||

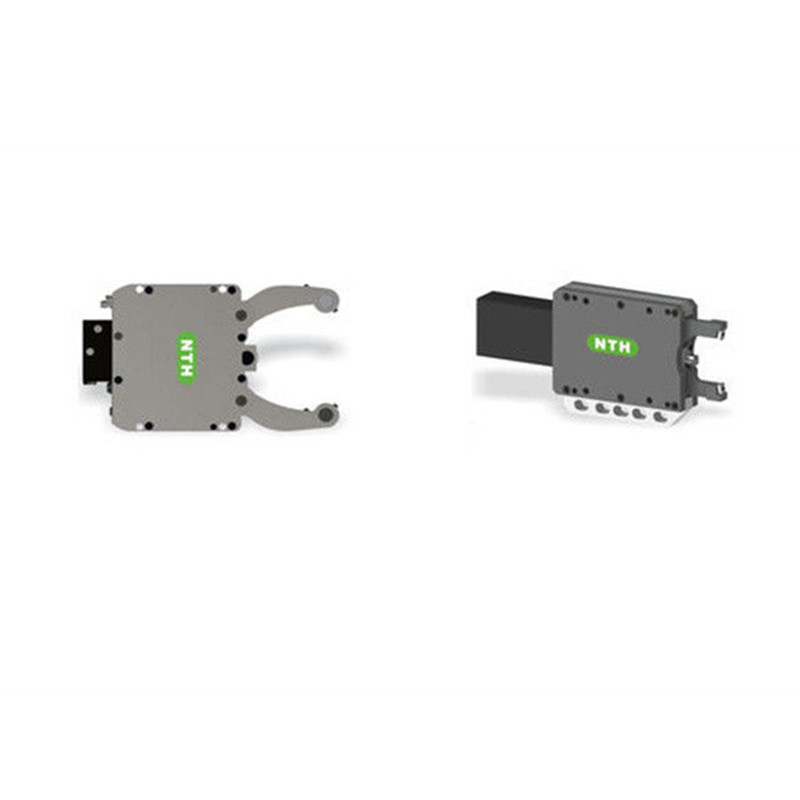

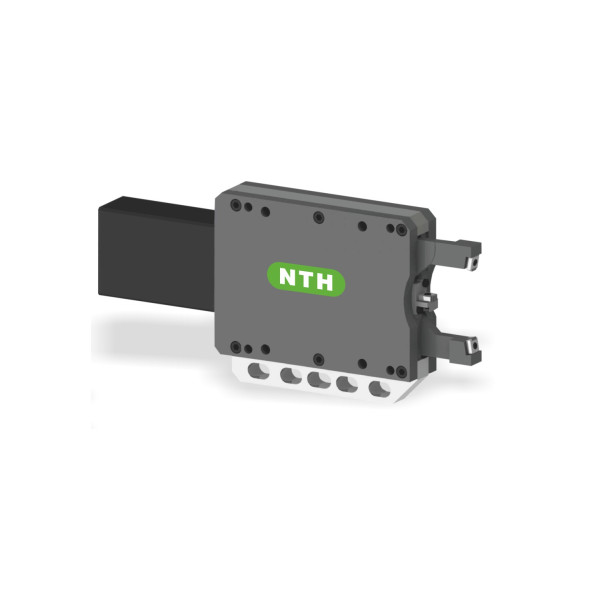

HIGH PRECISION SELF CENTERING STEADY REST OMSR-D MODEL
HIGH PRECISION SELF CENTERING STEADY REST OMSR-D MODEL
APPLICATION/ADVANTAGES
Support of shaft type workpieces on grinding machinesParticularly
suitable for the machining of crankshafts and camshafts
Rapid set up of the Steady Rest to the grinding center with the fine adjustment
Suitable for Follow down grinding

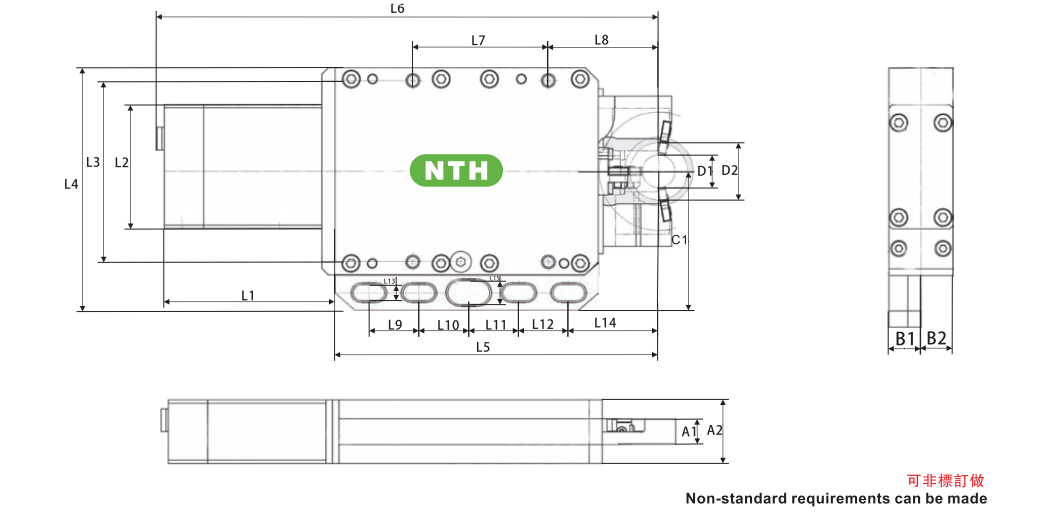

| NTH-OMSR Model Spec | OMSR-D1 | OMSR-D2 | OMSR-D3 | OMSR-D4 | OMSR-D5 | OMSR-D6 | OMSR-D7 |
|---|---|---|---|---|---|---|---|
| D1(mm) | 3 | 12 | 28 | 44 | 60 | 74 | 87 |
| D2(mm) | 18 | 28 | 44 | 60 | 74 | 87 | 100 |
| L1(mm) | 93.5 | 124.1 | 124.1 | 124.1 | 145.1 | 145.1 | 145.1 |
| L2(mm) | 70 | 77 | 77 | 77 | 91 | 91 | 91 |
| L3(mm) | / | 120.6 | 120.6 | 120.6 | 190.5 | 190.5 | 190.5 |
| L4(mm) | 120 | 166.2 | 166.2 | 166.2 | 216 | 216 | 216 |
| L5(mm) | 162 | 222.5 | 222.5 | 222.5 | 408 | 408 | 408 |
| L6(mm) | 249.5 | 351.1 | 351.1 | 351.1 | 557.6 | 557.6 | 557.6 |
| L7(mm) | / | 94.7 | 94.7 | 94.7 | / | / | / |
| L8(mm) | / | 88.4 | 88.4 | 88.4 | / | / | / |
| L9(mm) | 25 | 31.7 | 31.7 | 31.7 | / | / | / |
| L10(mm) | 25 | 27.4 | 27.4 | 27.4 | / | / | / |
| L11(mm) | 25 | 27.3 | 27.3 | 27.3 | / | / | / |
| L12(mm) | 25 | 31.8 | 31.8 | 31.8 | / | / | / |
| L13(mm) | 9×4 | 13.46*5 | 13.46*5 | 13.46*5 | / | / | / |
| L14(mm) | 45 | 79 | 79 | 79 | / | / | / |
| L15(mm) | 13.46×1 | / | / | / | / | / | / |
| A1(mm) | 10 | 19 | 19 | 19 | 18.2 | 18.2 | 18.2 |
| A2(mm) | 30 | 45 | 45 | 45 | 55 | 55 | 55 |
| B1(mm) | 15 | 19 | 19 | 19 | / | / | / |
| B2(mm) | / | / | / | / | / | / | / |
| C1(mm) | 70 | 92.5 | 92.5 | 92.5 | 108 | 108 | 108 |
| Work pressure Max. (bar) | 50 | 45 | 45 | 45 | 35 | 35 | 35 |
| Work pressure (bar) | 20-50 | 15-30 | 15-30 | 15-30 | 10-30 | 10-30 | 10-30 |
| Repeatability accuracy (mm) | ±0.001 | ±0.001 | ±0.001 | ±0.001 | ±0.001 | ±0.001 | ±0.001 |
| Weight(KG) | 4.3 | 11.2 | 11.2 | 11.2 | 30 | 30 | 30 |
Cylinders differing from standard available on request,Subject to technical changes.
