| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | OMSR-F1 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SUPER COMPACTED SELF CENTERING STEADY REST OMSR-F MODEL | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | Creative Design,Wide Clamping | |
| Usage: | Fixture/Gripping/Prop Up | Service: | Cylinders Differing From Standard Available On Request |
| Highlight: | hydraulic self centering steady rest, lathe steady rest |
||

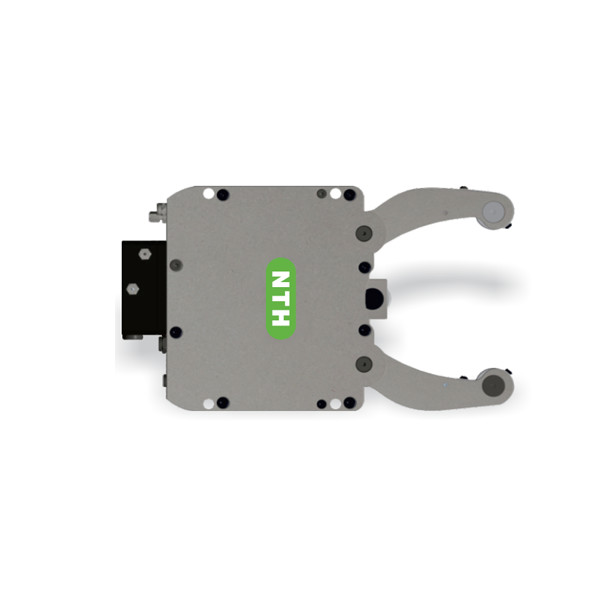

SUPER COMPACTED SELF CENTERING STEADY REST OMSR-F MODEL
Creative design,Wide clamping
Applicable for machining and milling
| NTH-OMSR Model Spec | OMSR-F1 |
| D1(mm) | 18 |
| D2(mm) | 162 |
| D3(mm) | 11 |
| D4(mm) | 40 |
| L1(mm) | 110 |
| L2(mm) | 140 |
| L3(mm) | 135 |
| L4(mm) | 320 |
| L5(mm) | 105 |
| L6(mm) | 235 |
| L7(mm) | 252 |
| L8(mm) | 48 |
| A1(mm) | 21 |
| A2(mm) | 40 |
| A3(mm) | / |
| B1(mm) | 85 |
| B2(mm) | / |
| B3(mm) | / |
| B4(mm) | / |
| B5(mm) | / |
| Work pressure Min./Max. (bar) | 8/70 |
| Max clamping force of the roller (daN) | 1000 |
| Position accuracy within the clamping range (mm) | 0.04 |
| Repeatability accuracy (mm) | 0.007 |
| Max line speed of the roller (m/min) | 725 |
| Weight(KG) | 50 |
Cylinders differing from standard available on request,Subject to technical changes.
Subject to technology changes without prior information
