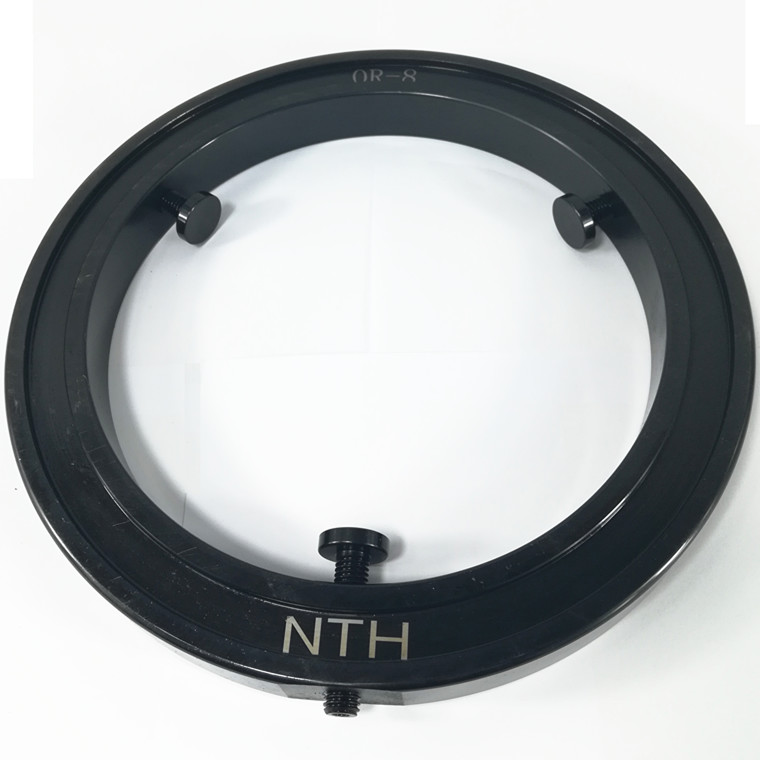

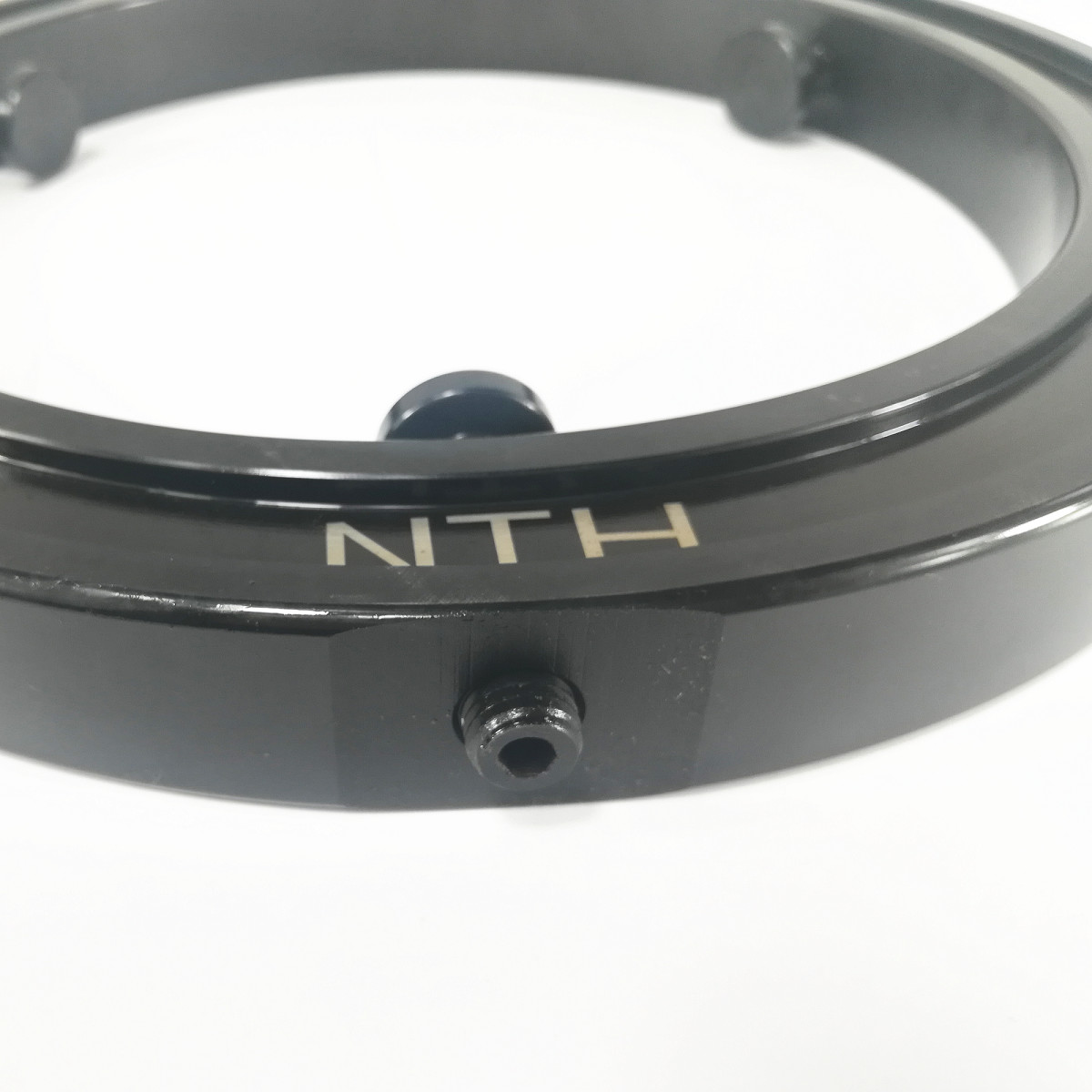

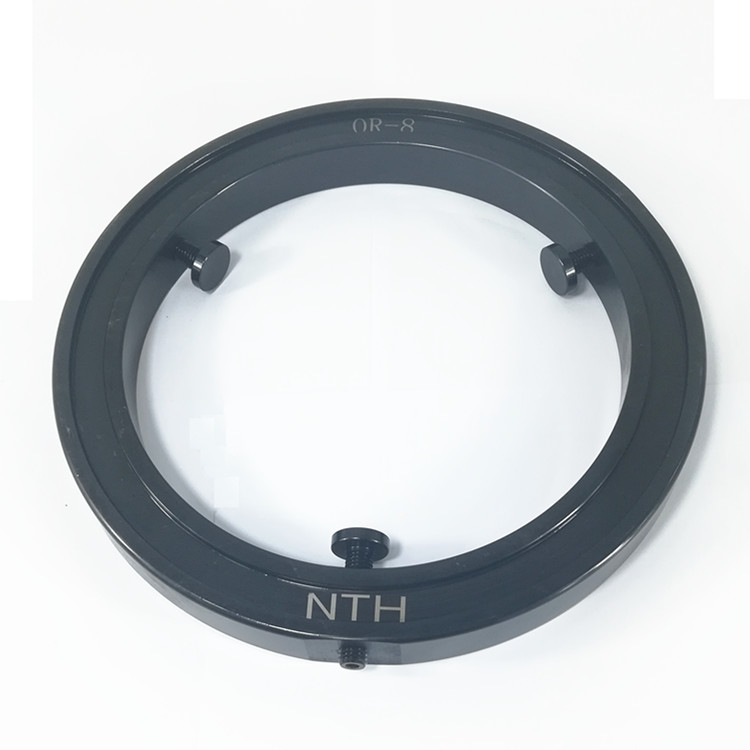

Jaw boring ring for outside diameter

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: OR-6,OR-8,OR-10
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: Jaw Boring Ring For Outside Diameter Material: Alloy Steel
Usage: Adjusting The High Accuracy Of Chuck During Machining Process. Feature: High Quality /High Precision/Abrision Proof
Size: Refer To The Specification Service: ODM/OEM Is Available
High Light:

chuck boring ring

,

manual boring tool

Jaw boring ring for outside diameter

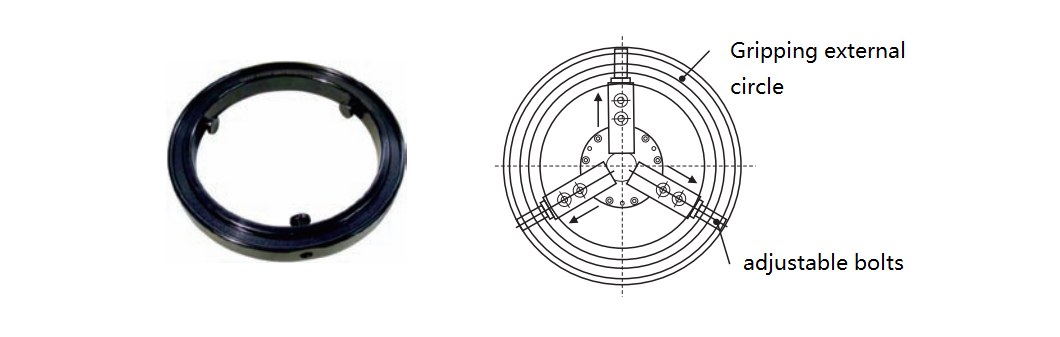

This Jaw boring ring is for machining the exteranl circle of the jaws,in order to expand the workpiece precisely

Jaw boring ring for outside diameter 0

Specification

Model
Range
For Chuck
OR-6 Ø140-Ø170 6″
OR-8 Ø170-Ø215 8″
OR-10 Ø215-Ø270 10″

Jaw boring ring for outside diameter 1

For OR-12 or OR-15 and other spec is available for customized order

Subject to technical changes
