| Product Name: | JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Quality /High Precision/Fine Adjusting | |
| Usage: | Adjusting The High Accuracy Of Chuck During Machining Process. | Service: | ODM/OEM Is Available |
| Highlight: | adjustable boring ring, chuck boring ring |
||

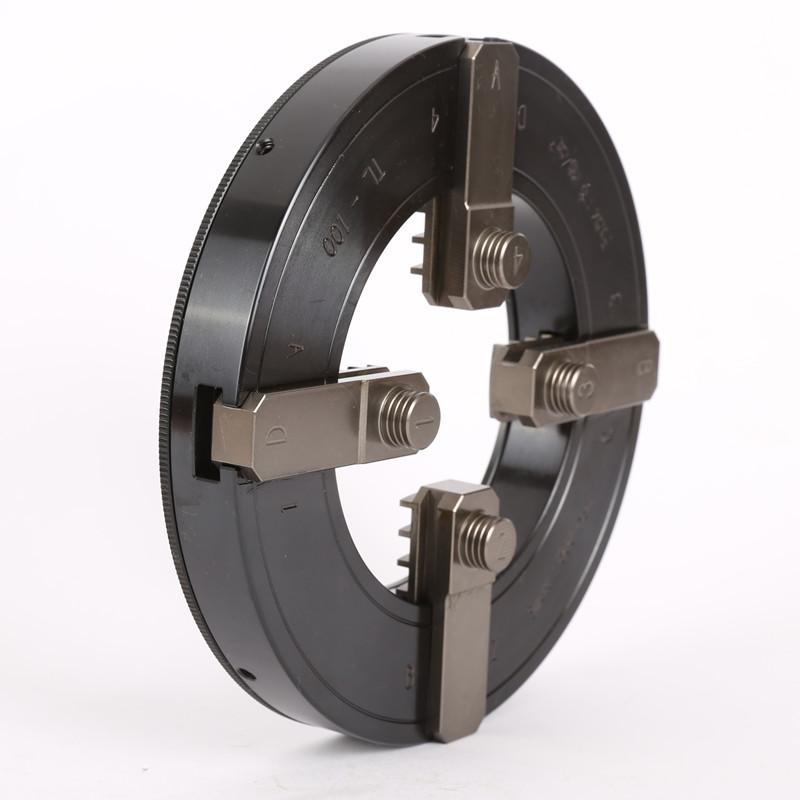

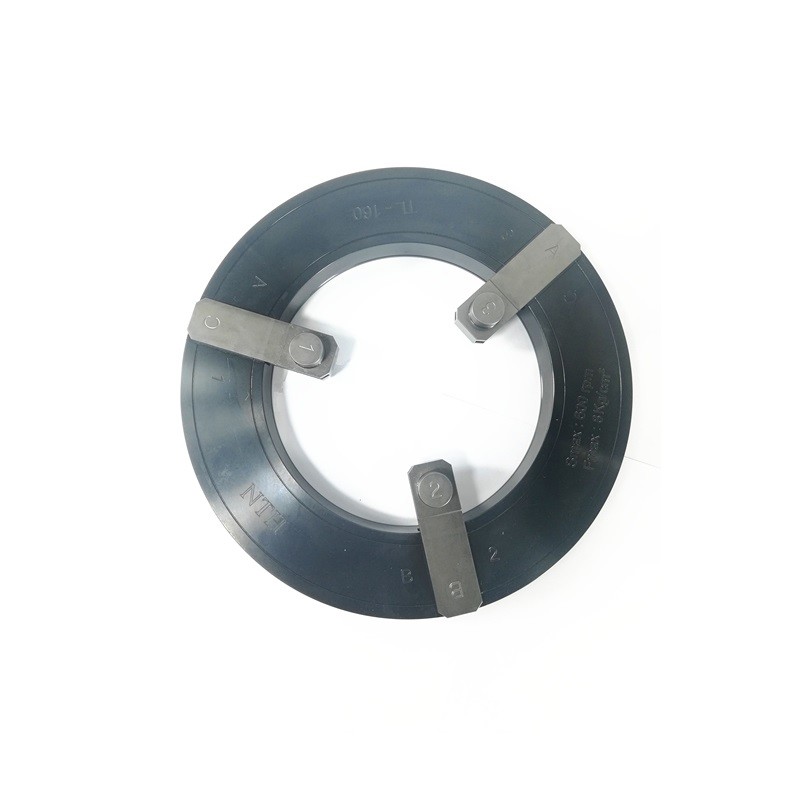

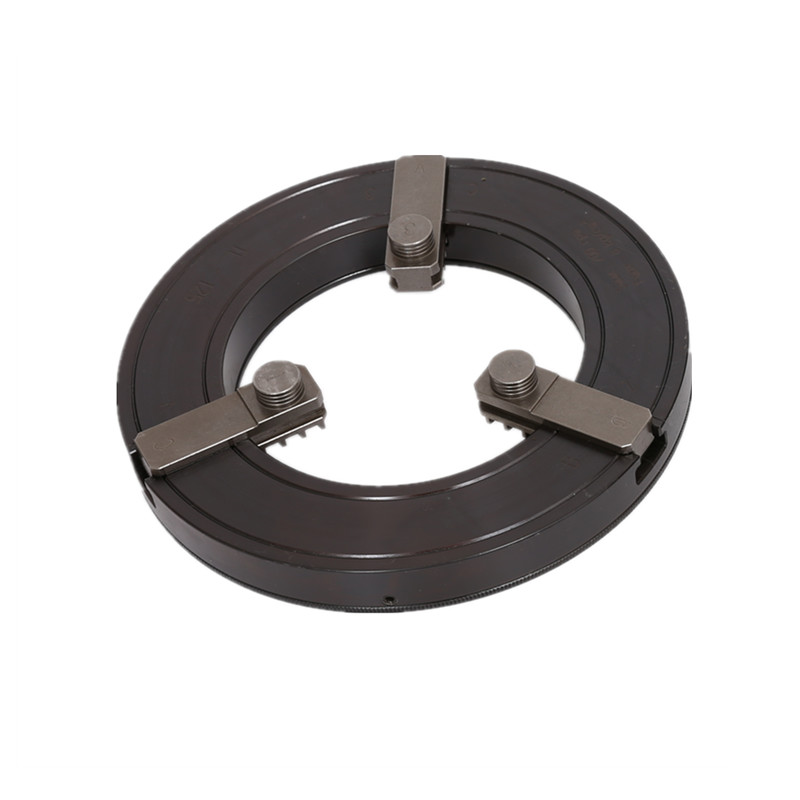

JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
JAW BORING FIXTURE FOR SOFT JAWS FINE ADJUSTING TYPE
FEATURE
To Suit for CNC lathe
This type jaw boring fixture with a continuous fine adjusting ring can provide accurate position, to reduce the abrasion of soft jaws.Soft jaws can be made to requirements size by this fixture easily. Only several simple process, soft jaws can be bored precisely.With anticlockwise lock, the machining field can be easily expended.

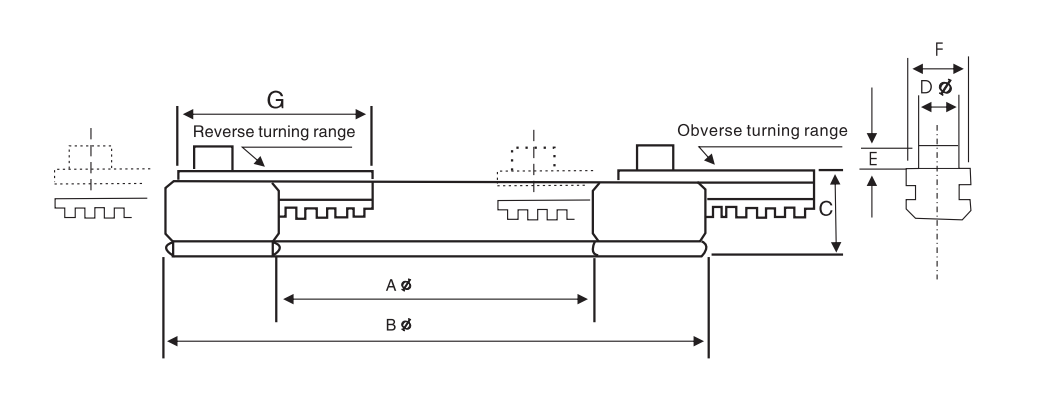

SPECIF ICATIONS UNIT :mm
Spec/Model | A | B | C | D | E | F | G | Jaw Stroke (Dia) | Max Gripping (Kgf) | Max RPM | Weight ( Kg ) | Matching Chuck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL-100 (TLF-100) | 100 | 170 | 26 | 13 | 7 | 19 | 61 | 7.4 | 1500 | 800 | 2.7 | 5"/6"/8" |
TL-125 (TLF-125) | 125 | 200 | 26 | 16.3 | 8 | 19 | 61 | 7.4 | 1500 | 700 | 3.5 | 6"/8"/10" |
TL-160 (TLF-160) | 160 | 248 | 31 | 18.3 | 8 | 24 | 80 | 8.5 | 1750 | 600 | 5.6 | 8"/10"/12" |
*TL : 3 jaw model
*TLF : 4 jaw model
Subject to technical changes
