| Product Name: | HIGH QUALITY JAW BORING RING FOR PRECISELY TURNING HYDRAULIC CHUCK SOFT JAWS | Material: | Alloy Steel |
|---|---|---|---|
| Usage: | Adjusting The High Accuracy Of Chuck During Machining Process. | Feature: | High Quality /High Precision |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
| High Light: | adjustable boring ring,chuck boring ring |
||

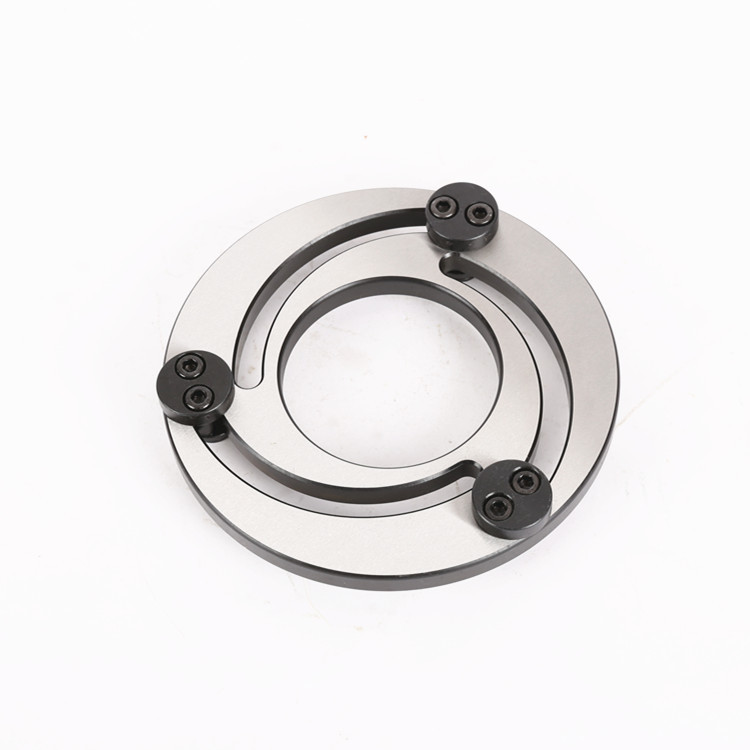

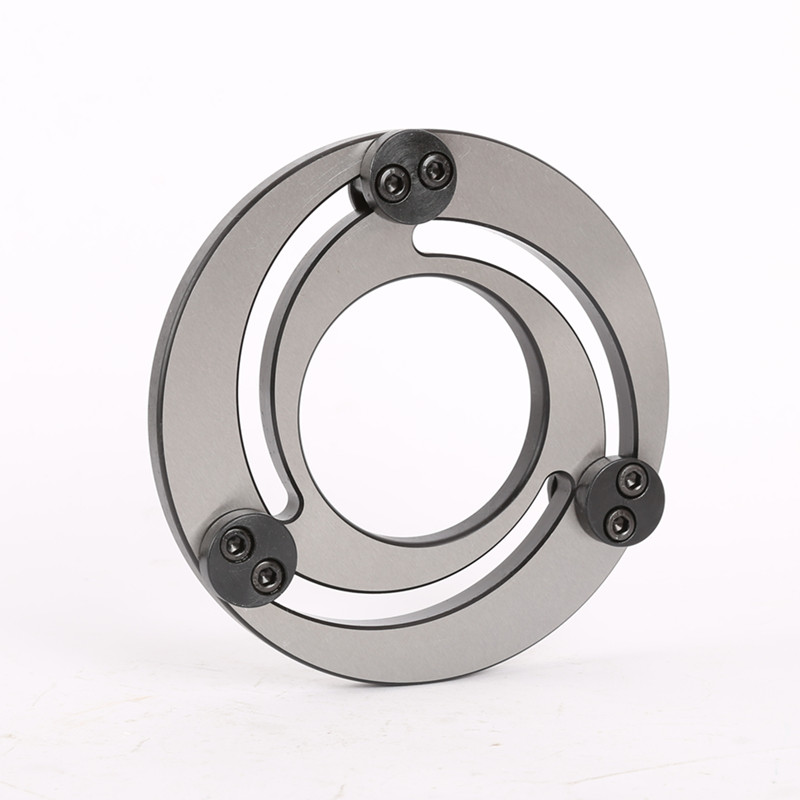

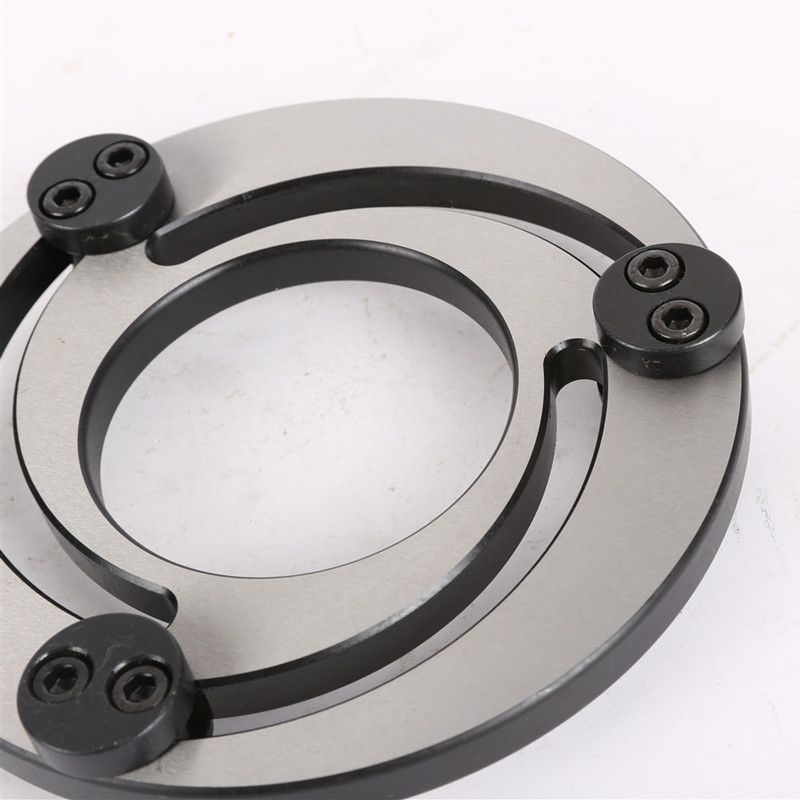

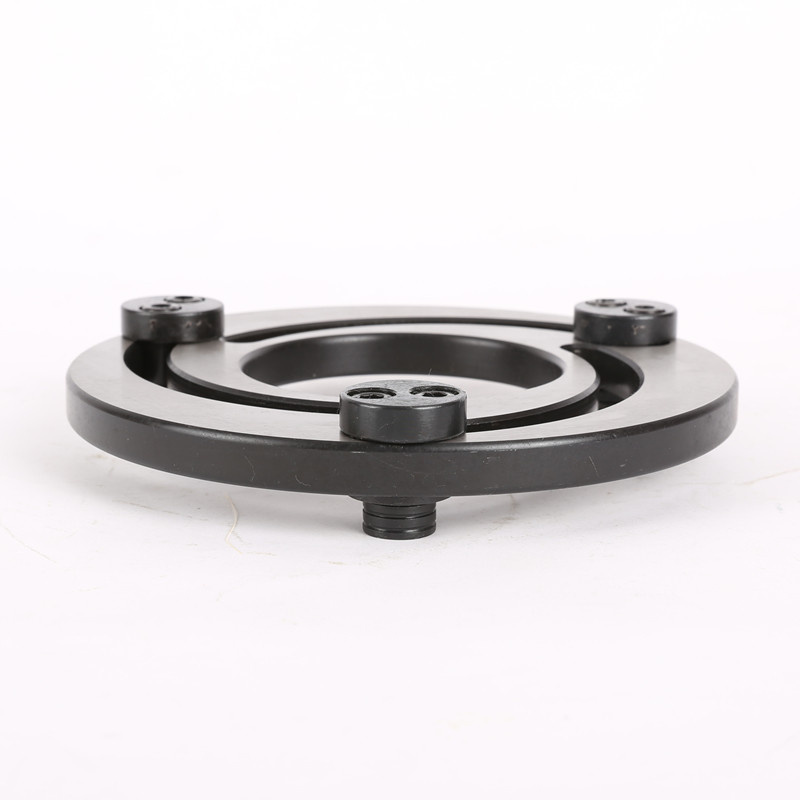

HIGH QUALITY JAW BORING RING FOR PRECISELY TURNING HYDRAULIC CHUCK SOFT JAWS
FEATURE
To Suit for CNC lathe
For adjusting the high accuracy of chuck during machining process.
The operation process as following:
1. Set the jaws to correct position.
2. Adjust the jaw boring ring to fit the bolt holes.
3. Lock the chuck to clamp the jaw boring ring.
4. Machining the required size.
5. Unlock the chuck.
6. If these steps are operated correctly, the clamping accuracy will be very precise.

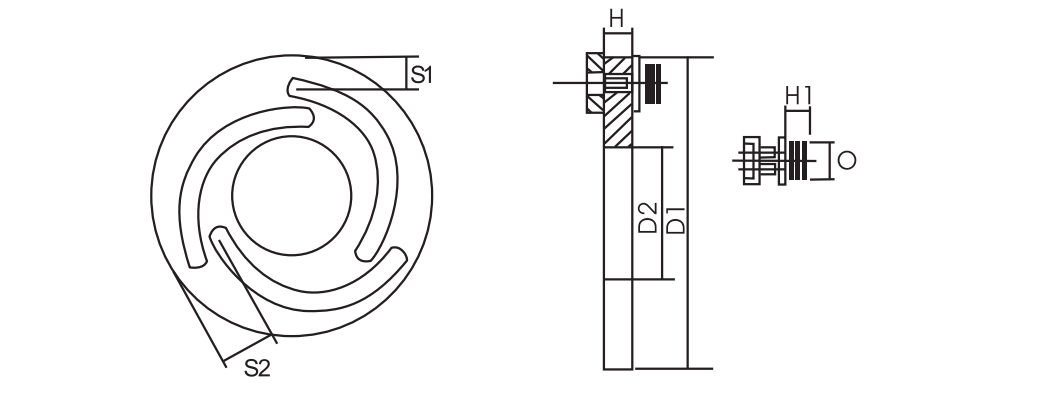

Size table
|
MODELS
|
H | D1 | D2 | S1 | S2 | G | H1 | O |
| JB-05 | 12 | 140 | 60 | 12 | 28 | 10 | 9 | 13.5 |
| JB-06 | 12 | 168 | 80 | 12 | 32 | 10 | 9 | 16.5 |
| JB-08 | 12 | 218 | 115 | 17 | 36 | 10 | 9 | 18.5 |
| JB-10 | 12 | 258 | 150 | 15 | 40 | 10 | 9 | 18.5 |
| JB-12T | 15 | 316 | 188 | 21 | 50 | 10 | 9 | 24.5 |
| JB-12NT | 15 | 316 | 188 | 21 | 50 | 10 | 9 | 21.5 |
| JB-15 | 20 | 380 | 230 | 23 | 52 | 12 | 16 | 31 |
For other spec like JB-21,JB-24,JB-32,JB-40,JB-63,JB-79 need customized order.
Subject to technical changes
