| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | HMG-6025,HMG-6040,HMG-6050,HMG-6063,HMG-9025,HMG-9040,HMG-9050,HMG-9063, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |
| Product Name: | Multigrip Vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| High Light: | pneumatic machine vice,rotary vise for milling machine |
||

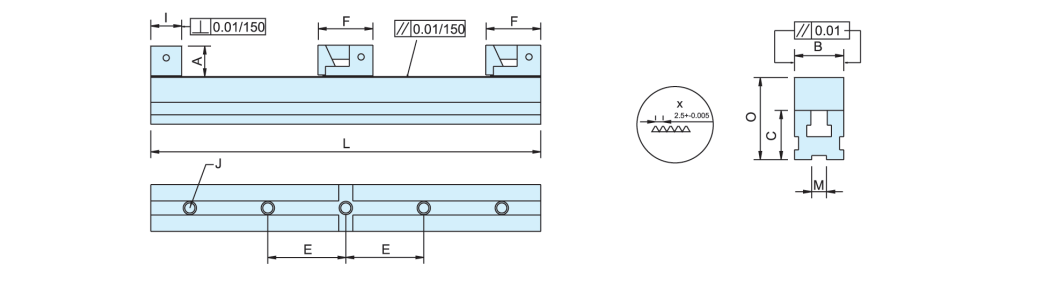

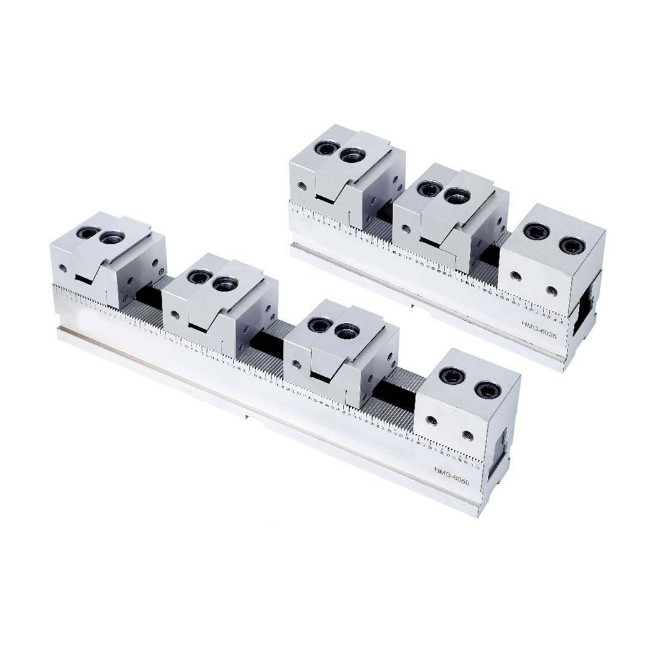

Multigrip vise
| MODEL | A | B | C | E | F | I | J | L | M | O | G.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HMG-6025 | 40 | 60 | 60 | 100 | 70 | 60 | M12 | 250 | 18 | 100 | 9kg |
| HMG-6040 | 40 | 60 | 60 | 100 | 70 | 60 | M12 | 400 | 18 | 100 | 14kg |
| HMG-6050 | 40 | 60 | 60 | 100 | 70 | 60 | M12 | 500 | 18 | 100 | 16kg |
| HMG-6063 | 40 | 60 | 60 | 100 | 70 | 60 | M12 | 630 | 18 | 100 | 20kg |
| MODEL | A | B | C | E | F | I | J | L | M | O | G.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HMG-9025 | 45 | 90 | 70 | 100 | 80 | 70 | MIG | 250 | 18 | 115 | 18kg |
| HMG-9040 | 45 | 90 | 70 | 100 | 80 | 70 | M16 | 400 | 18 | 115 | 25kg |
| HMG-9050 | 45 | 90 | 70 | 100 | 80 | 70 | M16 | 500 | 18 | 115 | 29kg |
| HMG-9063 | 45 | 90 | 70 | 100 | 80 | 70 | M16 | 630 | 18 | 115 | 38kg |
