| Product Name: | Soft Jaws Tongue and Groove Type for NTH Scroll Chuck Clamping | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Acceories For Chucks | Service: | ODM/OEM Is Available |
| Highlight: | NTH Scroll Chuck Clamping Soft Jaws, Tongue and Groove Type Soft Jaws |
||

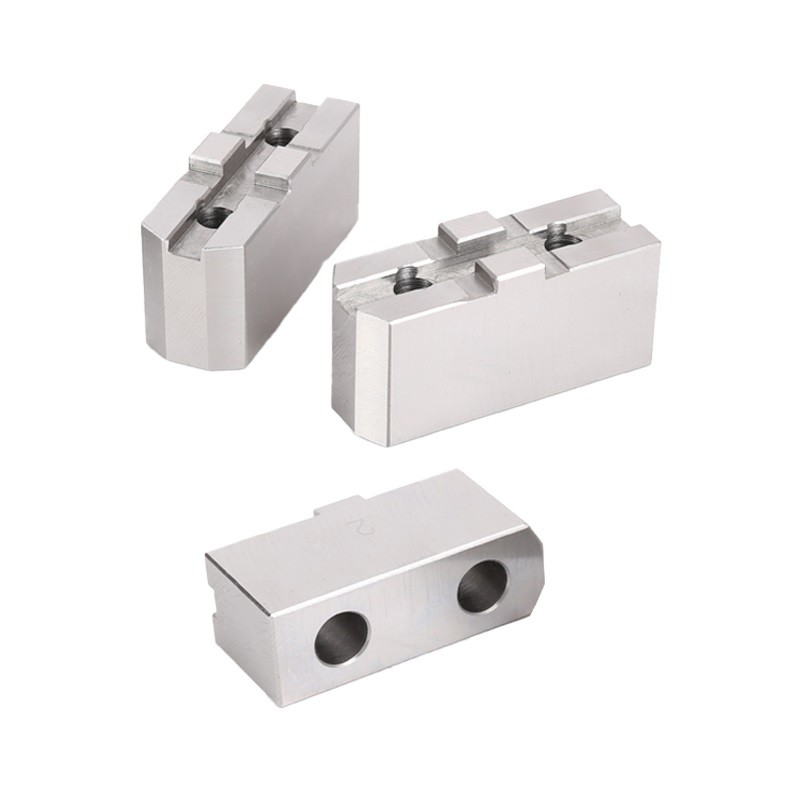

Soft Jaws Tongue and Groove Type for NTH Scroll Chuck Clamping
Brand:OMATEI
Where used:
1. It’s applicable for NTH SK-series manual chucks.
2. Non standard specification can be made.
Advantage:
1. As the standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2. The mounting surface is ground precisely and it can match the master jaws tightly with lower abrasion.
Production Catalogue Download:SOFT JAWS FOR NTH SCROLL CHUCK.pdf
(UNIT: mm)

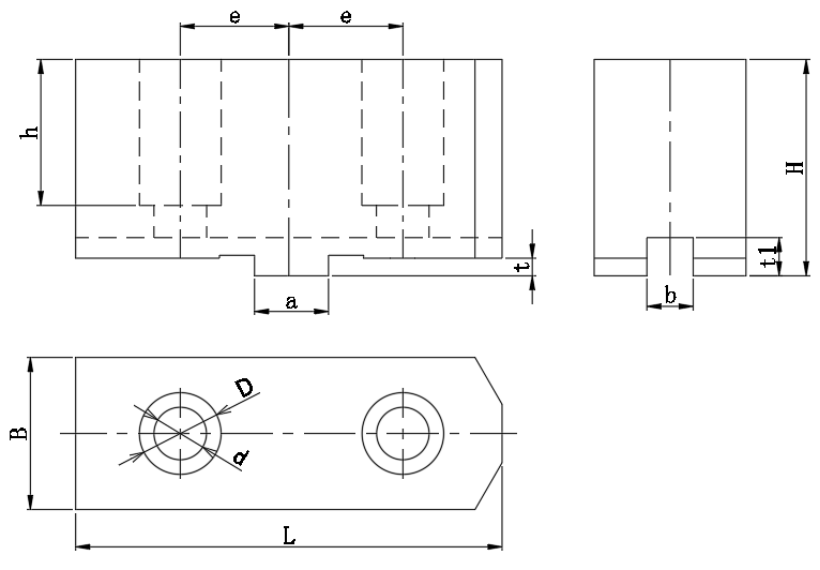

| MODEL/SPEC | L | B | H | h | D | d | a | e | b | t | t1 | G |
| NCP-04 | 52 | 19 | 30 | 21 | 11 | 6.5 | 9.53 | 12 | 7.94 | 2.5 | 5.5 | M6*1.0P |
| NCP-05 | 62 | 24 | 35 | 24 | 14 | 9 | 12.68 | 16 | 7.94 | 3 | 7.2 | M8*1.25P |
| NCP-06 | 73 | 26 | 37 | 25 | 17 | 11 | 12.68 | 19.05 | 7.94 | 3 | 7.2 | M10*1.5P |
| NCP-07 | 95 | 31 | 48 | 34 | 17 | 11 | 12.68 | 22.2 | 7.94 | 3 | 7.2 | M10*1.5P |
| NCP-08 | 95 | 31 | 48 | 34 | 17 | 11 | 12.68 | 22.2 | 7.94 | 3 | 7.2 | M10*1.5P |
| NCP-09 | 110 | 37 | 48 | 34 | 17 | 11 | 12.68 | 22.2 | 7.94 | 3 | 7.2 | M10*1.5P |
| NCP-10 | 110 | 37 | 48 | 34 | 19 | 13 | 19.03 | 27 | 12.7 | 3 | 7.2 | M12*1.75P |
| NCP-12 | 125 | 42 | 54 | 38 | 19 | 13 | 19.03 | 31.75 | 12.7 | 3 | 7.2 | M12*1.75P |
| NCP-14 | 125 | 42 | 54 | 38 | 19 | 13 | 19.03 | 31.75 | 12.7 | 3 | 7.2 | M12*1.75P |
| NCP-16 | 160 | 50 | 70 | 48 | 25 | 17 | 19.03 | 38.1 | 12.7 | 6 | 11.5 | M16*2.0P |
Note: Subject to the technical changes.
The customized can be made.
