| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | CP-04,CP-05,CP-06 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SOFT JAWS TONGUE AND GROOVE TYPE FOR SCROLL CHUCK | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Acceories For Chucks | Service: | ODM/OEM Is Available |
| High Light: | machining soft jaws,cnc soft jaws |
||

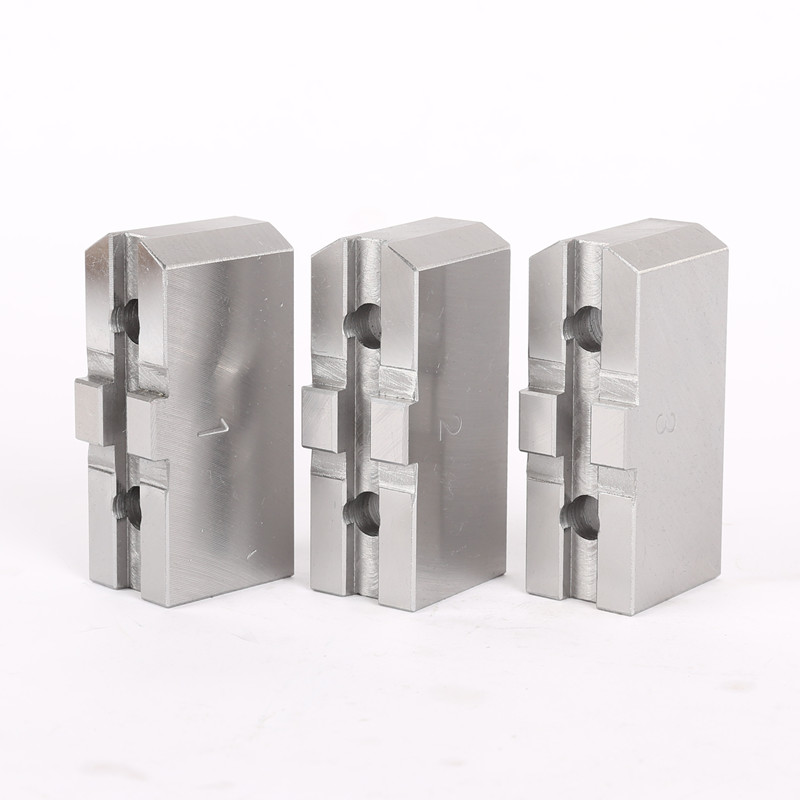

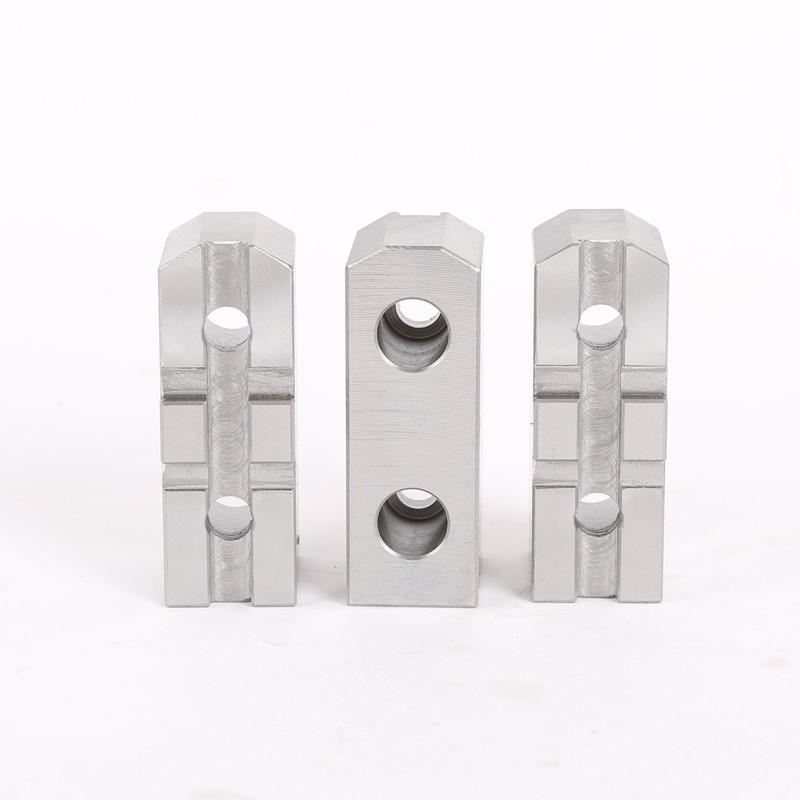

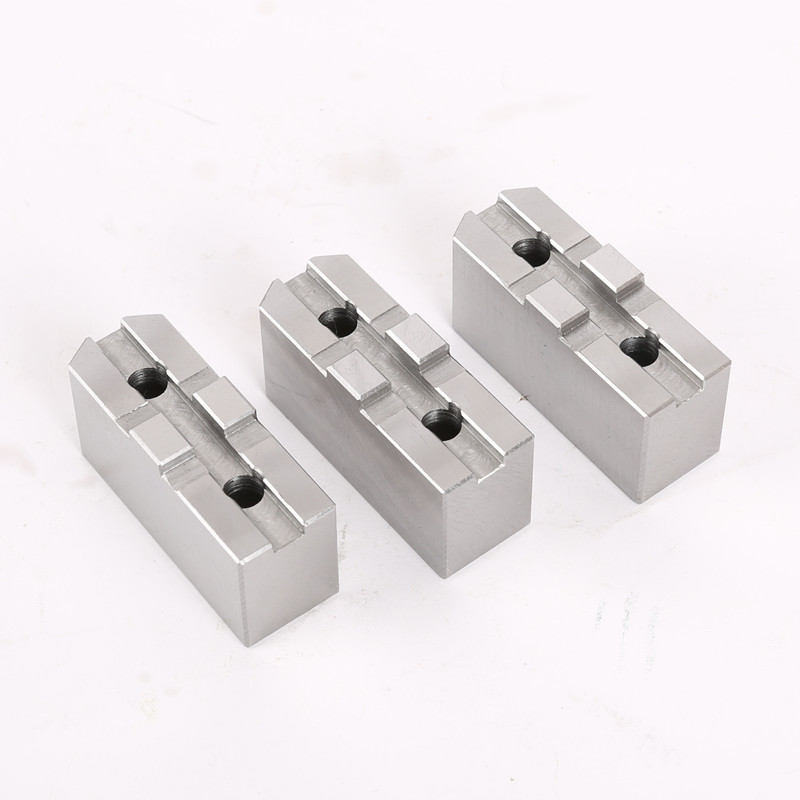

SOFT JAWS TONGUE AND GROOVE TYPE FOR SCROLL CHUCK
Brand:OMATEI
Selection Guidance
1, Workpiece size and the gripping height
2, Chuck brand and model name
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

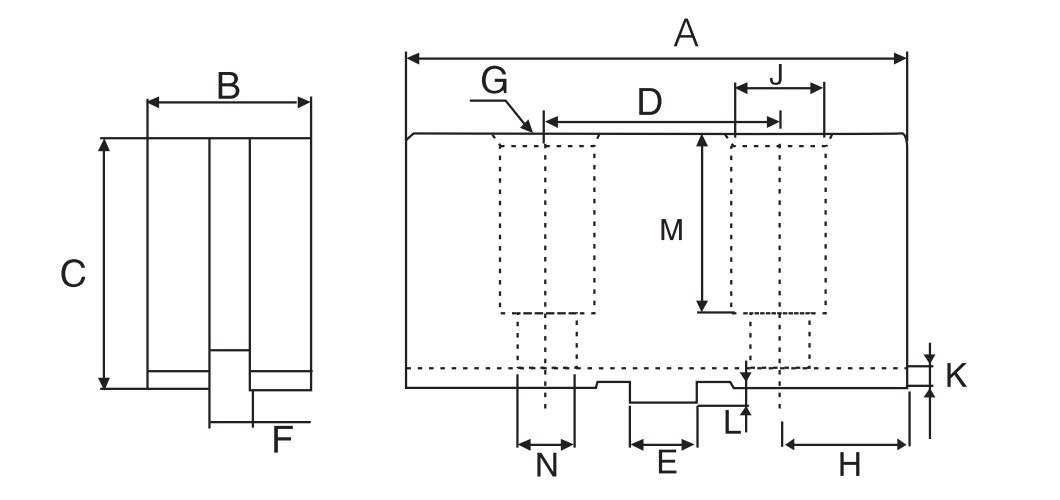

Specification Unit:mm
|
SPEC.MODEL |
Length A |
Width B |
Height C |
D |
Slot width E |
Slot depth F |
Screw G |
H |
J |
K |
L |
M |
N |
G.W.(Kg/set) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CP-04 | 52 | 19 | 30 | 24 | 9.53 | 7.94 | M6×1.0P | 14 | 11 | 3 | 2.5 | 21 | 7 | 0.45 |
| CP-05 | 62 | 24 | 35 | 32 | 12.68 | 7.94 | M8×1.25P | 15 | 14 | 3.5 | 3 | 24 | 9 | 0.9 |
| CP-06 | 73 | 26 | 37 | 38.1 | 12.68 | 7.94 | M8×1.25P | 17 | 14 | 3.5 | 3 | 25 | 9 | 1.2 |
|
CP-07 CP-08 |
95 | 31 | 48 | 44.45 | 12.68 | 7.94 | M10×1.5P | 25.3 | 17 | 3.8 | 3 | 34 | 11 | 2.65 |
|
CP-09 CP-10 |
110 | 37 | 48 | 53.98 | 19.03 | 12.7 | M12×1.75P | 28 | 19 | 4.2 | 3 | 34 | 13 | 3.8 |
| CP-12 | 125 | 42 | 54 | 63.5 | 19.03 | 12.7 | M12×1.75P | 31 | 19 | 4.2 | 3 | 38 | 13 | 5.3 |
| CP-16 | 160 | 50 | 70 | 76.2 | 19.03 | 12.7 | M16×2.0P | 42 | 25 | 5.5 | 6 | 48 | 17 | 11.5 |
| CP-20 | 160 | 55 | 80 | 76.2 | 19.03 | 12.7 | M20×2.5P | 42 | 32 | 5.5 | 6 | 58 | 21 | 15.5 |
| HE-2486 | 155 | 59 | 86 | 76.2 | 19.03 | 12.7 | M20 |
|
32 | 5 | 6 | 66 | 21 | 17.2 |
Subject to technical changes
