| Product Name: | SK 3 Jaw Universal Scroll Chuck Front And Back Mounted | Material: | Cast Iron/cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, cnc lathe chuck |
||

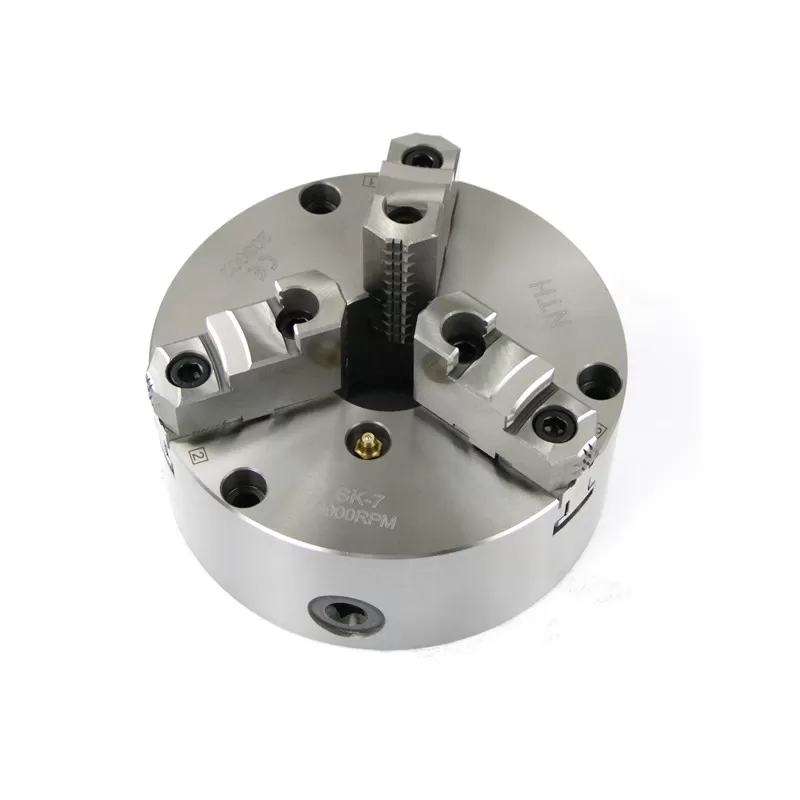

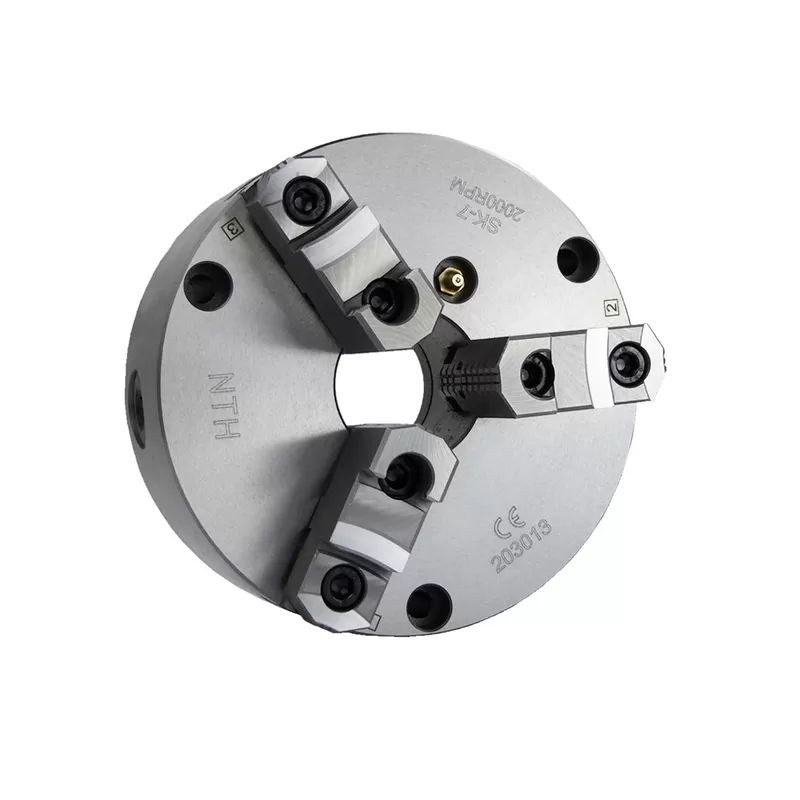

SK 3 Jaw Universal Scroll Chuck Front And Back Mounted
1. Plain back
2. Standard accessories: 1 set two-piece hard jaws
3. High accuracy on clamping repeatability
Specification UNIT:mm
| Model/Spec | Max. Allowable Torque N*m | Max. Gripping Force KN | Weight Kg | RPM | O.D Clamping Range mm | I.D. Clamping Range mm |
| SK-04 | 44 | 12 | 3.1 | 2500 | 3-90 | 32-84 |
| SK-05 | 63 | 15 | 4.4 | 2500 | 3-110 | 35-100 |
| SK-06 | 88 | 31 | 11.4 | 2000 | 8-160 | 55-150 |
| SK-07 | 107 | 31 | 12.2 | 2000 | 8-180 | 62-170 |
| SK-08 | 128 | 33 | 16.2 | 2000 | 8-180 | 62-170 |
| SK-09 | 147 | 37 | 21.2 | 2000 | 11-220 | 70-210 |
| SK-10 | 176 | 46 | 28 | 1800 | 12-260 | 80-250 |
| SK-12 | 206 | 55 | 41 | 1800 | 15-300 | 90-290 |
| SK-14 | 225 | 55 | 54 | 1500 | 15-350 | 100-330 |
| SK-16 | 245 | 60 | 74 | 1500 | 30-400 | 110-380 |
| SK-20 | 320 | 68 | 140 | 700 | 30-500 | 152-480 |
| SK-25 | 420 | 78 | 235 | 850 | 80-630 | 198-601 |
| SKB-25 | 420 | 78 | 208.5 | 850 | 160-630 | 274-601 |
| SK-32 | 460 | 88 | 442 | 500 | 150-800 | 240-750 |
| SK-40 | 500 | 115 | 590 | 400 | 250-1000 | 425-950 |
| SK-50 | 500 | 125 | 850 | 300 | 320-1250 | 490-1200 |

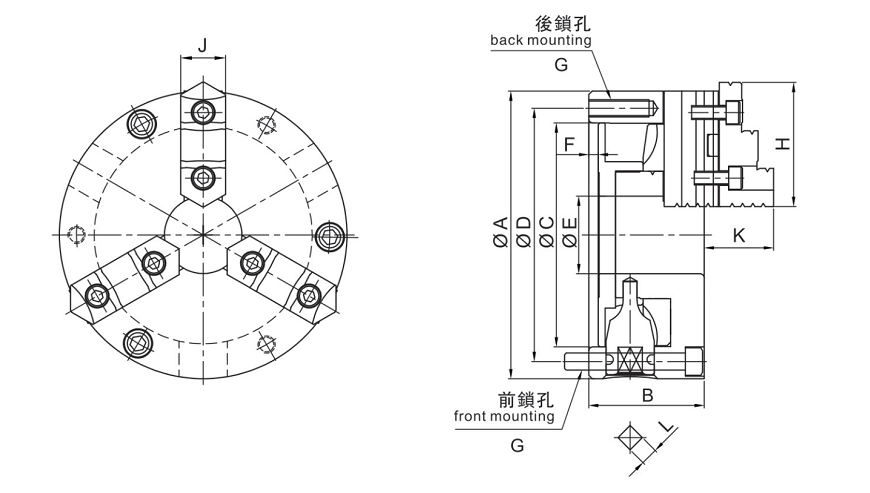

| Model/Spec | A | B | C | D | E | F | G | H | J | K | L |
| SK-04 | 112 | 58 | 80 | 95 | 24 | 4.5 | 3-M8x1.25P | 46.5 | 19 | 31 | 8 |
| SK-05 | 132 | 60 | 100 | 115 | 32 | 4.5 | 3-M8x1.25P | 56 | 22 | 36 | 8 |
| SK-06 | 167 | 66 | 130 | 147 | 45 | 5 | 3-M10x1.5P | 67 | 25 | 42 | 10 |
| SK-07 | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10x1.5P | 80 | 30 | 46 | 11 |
| SK-08 | 203 | 76 | 160 | 176 | 58 | 5 | 3-M10x1.5P | 80 | 30 | 46 | 11 |
| SK-09 | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12x1.75P | 80 | 30 | 46 | 12 |
| SK-10 | 273 | 86 | 230 | 250 | 89 | 5.5 | 3-M12x1.75P | 95 | 36 | 54 | 12 |
| SK-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12x1.75P | 110 | 42 | 63 | 14 |
| SK-14 | 355 | 122 | 300 | 328 | 127 | 7 | 6-M12x1.75P | 110 | 42 | 63 | 15 |
| SK-16 | 405 | 122 | 345 | 375 | 160 | 8 | 6-M14x2P | 130 | 45 | 75 | 15 |
| SK-20 | 500 | 140 | 420 | 458 | 205 | 5.5 | 6-M16x2P | 166 | 50 | 84 | 19 |
| SK-25 | 630 | 140 | 545 | 586 | 275 | 6.5 | 6-M16x2P | 210 | 52 | 92 | 19 |
| SKB-25 | 630 | 140 | 545 | 586 | 320 | 6.5 | 6-M16x2P | 210 | 52 | 92 | 19 |
| SK-32 | 800 | 159 | 450 | 368.3 | 320 | 20 | 6-M24x3P | 225 | 52 | 92 | 19 |
| SK-40 | 1000 | 190 | 910 | 950 | 460 | 10 | 6-M24x3P | 329 | 85 | 137 | 24 |
| SK-50 | 1250 | 195 | 1000 | 1100 | 560 | 10 | 6-M30x3.5P | 367 | 85 | 237 | 24 |
