| Product Name: | SC 3-JAW SCROLL CHUCKS , MANUAL SELF CENTERING CHUCK OEM ODM MANUFACTURER | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, lathe scroll chuck |
||

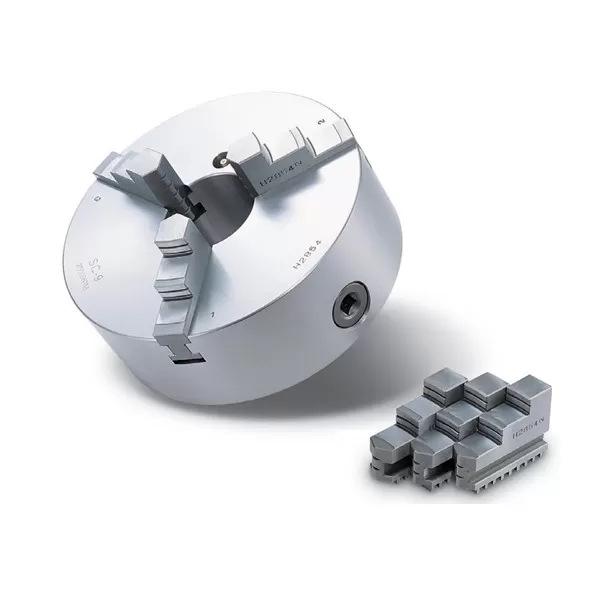

SC 3-JAW SCROLL CHUCKS , MANUAL SELF CENTERING CHUCK OEM ODM MANUFACTURER
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|---|
| SC-03 | 2500 | Ø2-Ø70 | Ø24-Ø64 | 1.5 |
| SC-04 | 2500 | Ø3-Ø90 | Ø32-Ø84 | 3.3 |
| SC-05 | 2500 | Ø3-Ø110 | Ø35-Ø100 | 4.6 |
| SC-06 | 2000 | Ø4-Ø160 | Ø48-Ø150 | 7.9 |
| SC-07 | 2000 | Ø4-Ø180 | Ø56-Ø170 | 12 |
| SC-08 | 2000 | Ø4-Ø180 | Ø56-Ø170 | 13.3 |
| SC-09 | 2000 | Ø5-Ø220 | Ø62-Ø210 | 19.3 |
| SC-10 | 1800 | Ø6-Ø260 | Ø70-Ø250 | 26.2 |
| SC-12 | 1800 | Ø10-Ø300 | Ø86-Ø290 | 37.6 |
| SC-14 | 1500 | Ø12-Ø350 | Ø96-Ø320 | 57.2 |
| SC-16 | 1500 | Ø14-Ø400 | Ø100-Ø380 | 80.7 |

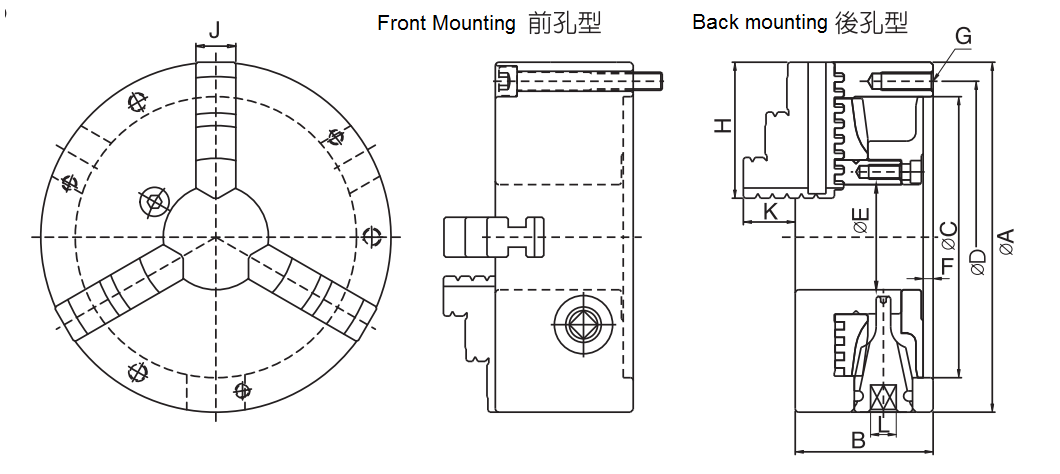

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-03 | 85 | 45 | 60 | 73 | 16 | 3.5 | 3-M6x1P | 35 | 11 | 15 | 7 |
| SC-04 | 112 | 58 | 80 | 95 | 24 | 4.5 | 3-M8x1.25P | 42 | 14 | 17 | 8 |
| SC-05 | 132 | 60 | 100 | 115 | 32 | 4.5 | 3-M8x1.25P | 50 | 16 | 20 | 8 |
| SC-06 | 167 | 66 | 130 | 147 | 45 | 5 | 3-M10x1.5P | 65 | 19 | 23 | 10 |
| SC-07 | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10x1.5P | 75 | 22 | 28 | 11 |
| SC-08 | 203 | 76 | 160 | 176 | 58 | 5 | 3-M10x1.5P | 75 | 22 | 28 | 11 |
| SC-09 | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12x1.75P | 85 | 24 | 34.5 | 12 |
| SC-10 | 273 | 86 | 230 | 250 | 89 | 5.5 | 3-M12x1.75P | 98 | 28 | 39 | 12 |
| SC-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12x1.75P | 110 | 30 | 45 | 14 |
| SC-14 | 355 | 112 | 300 | 328 | 127 | 7 | 6-M12x1.75P | 132 | 35 | 50 | 15 |
| SC-16 | 405 | 122 | 345 | 375 | 160 | 8 | 6-M14x2P | 146 | 40 | 56 | 15 |
Subject to technology changes without prior information
Non-standard requirements can be made
