| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | PJ-06 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | STANDARD FULL GRIP PIE JAWS FOR B-206 6 INCH POWER CHUCK | Material: | 45#Steel/Aluminum |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | steel pie jaws, aluminum pie jaws |
||

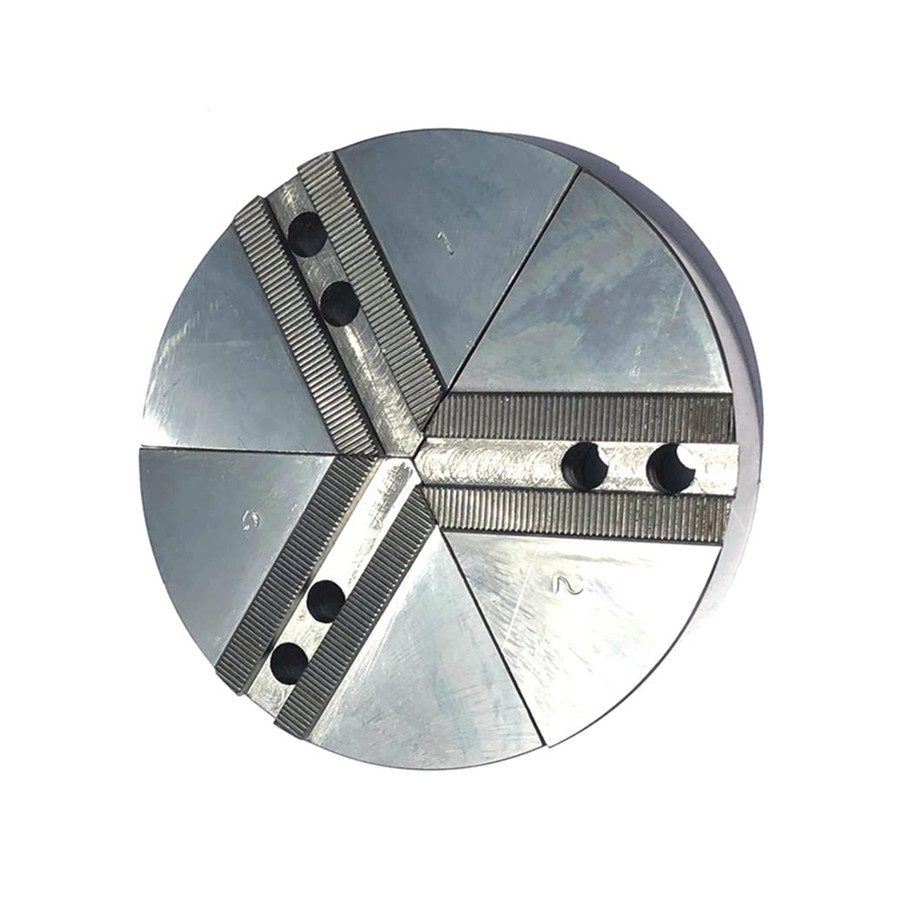

STANDARD FULL GRIP PIE JAWS FOR B-206 6 INCH POWER CHUCK
STANDARD FULL GRIP PIE JAWS FOR B-206 6 INCH POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

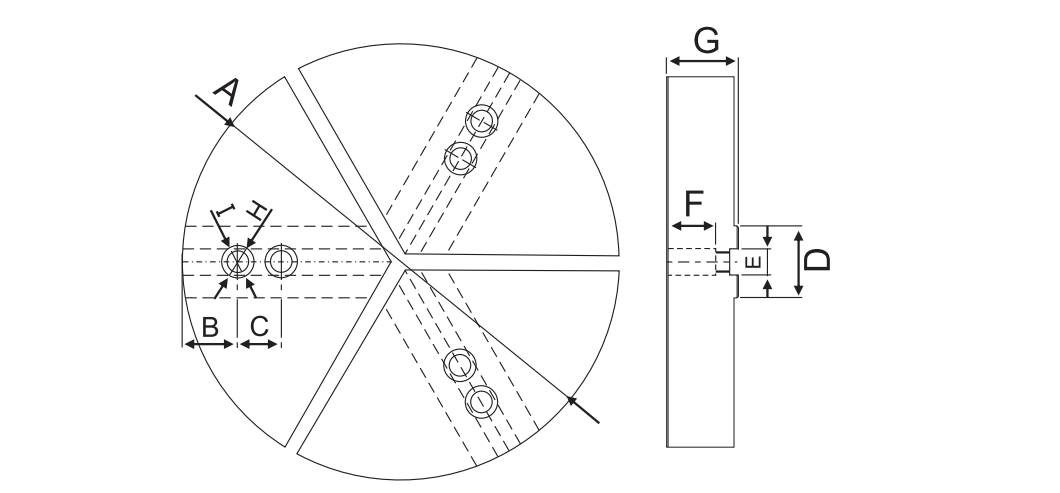

Serration Pitch:1.5mmx60° UNIT : mm
| Model/Spec | A | B | C | D | E | F | G | H | I | GW KG |
| PJ-06 | 160 | 15 | 20 | 31 | 12 | 21 | 36 | 18 | 11 | 4.9 |
Customized spec can be made.
Other option of serration pitch: 3.0*60°
Subject to technical changes
