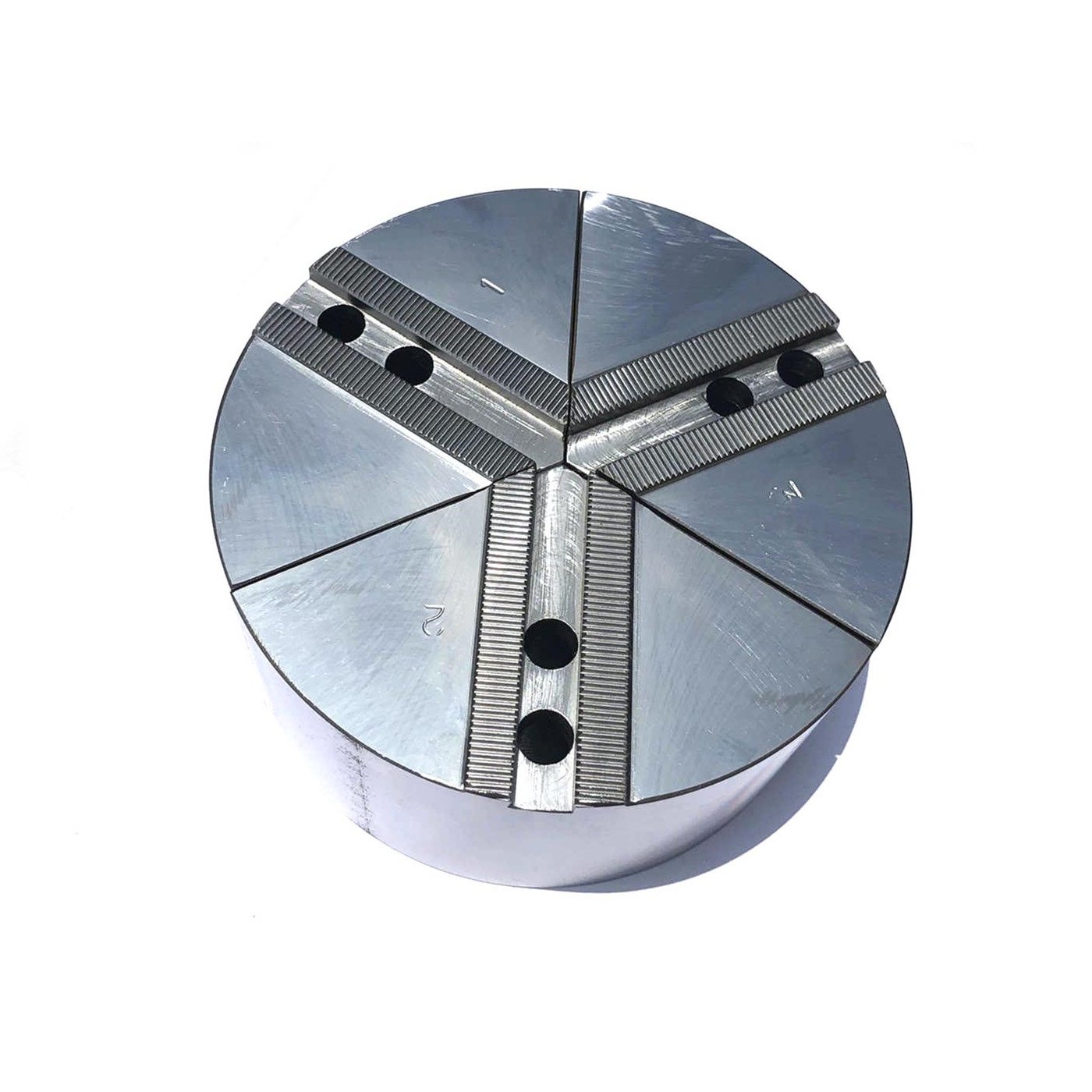

HIGHER FULL GRIP PIE JAWS FOR B210 10 INCH POWER CHUCK

Basic Information
Place of Origin: CHINA
Brand Name: OMATEI
Model Number: PJ-10H60/70/80
Minimum Order Quantity: 1 set
Price:Negotiation
Packaging Details:Good and firm package is suitable for the sea and air shipping
Delivery Time: 3work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name:HIGHER FULL GRIP PIE JAWS FOR B210 10 INCH POWER CHUCK Material: 45#Steel/Aluminum
Function: Clamping Feature:High Quality /High Precision
Usage:Refer To The Specification Service: ODM/OEM Is Available
Highlight:

cnc lathe chuck jaws, aluminum pie jaws

HIGHER FULL GRIP PIE JAWS FOR B210 10 INCH POWER CHUCK

HIGHER FULL GRIP PIE JAWS FOR B210 10 INCH POWER CHUCK

Brand:OMATEI
Selection Guidance
1. Chuck brand and model name
2. Workpiece size and the gripping height
Advantage
1.  For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2.  Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3.  Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4.  Customized and non-standard jaws and be designed and OEM.

HIGHER FULL GRIP PIE JAWS FOR B210 10 INCH POWER CHUCK 0

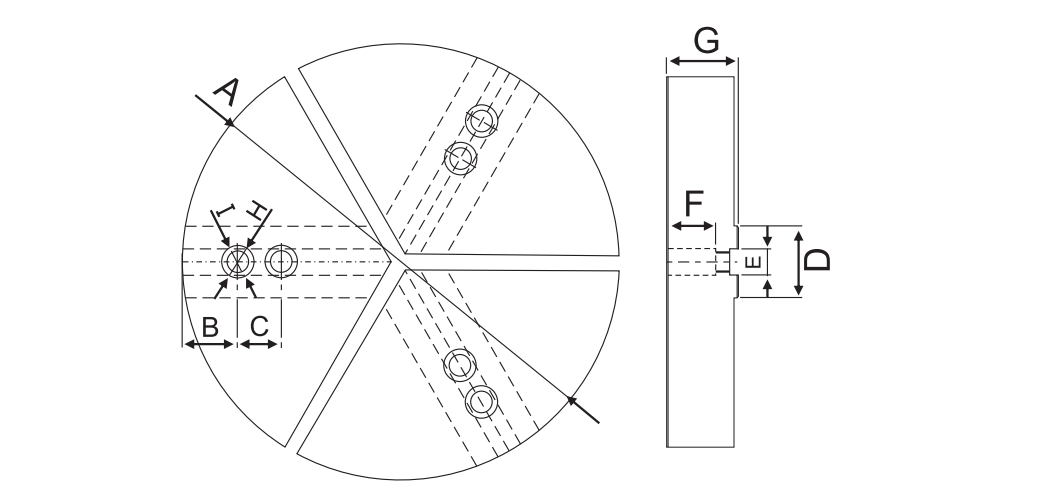

Serration Pitch:1.5mmx60° UNIT : mm



ModelABCDEFGHIGW KG/SET
PJ-10H60/70/802402530421644/54/6460/70/80191319.5/22.7/26



Other option of serration pitch: 3.0*60°
Subject to technical changes
