| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | K11 315/C11,K11 320/C6,K11 320/C8,K11 320/C11, etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Product Name: | K11 SERIES DIRECT MOUNTING 3-JAW SELF-CENTERING CHUCKS TYPE C | Material: | Cast Steel |
|---|---|---|---|
| Usage: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| High Light: | lathe scroll chuck,cnc lathe chuck |
||

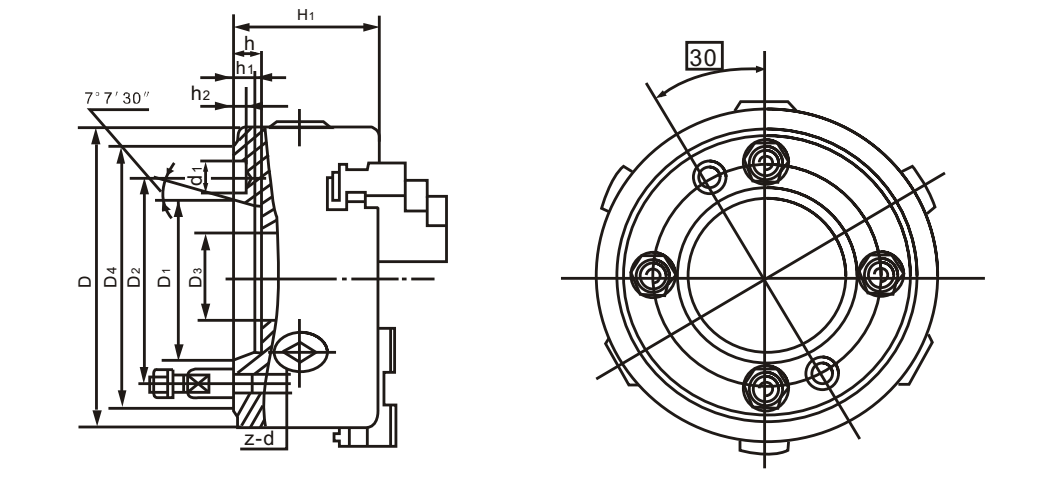

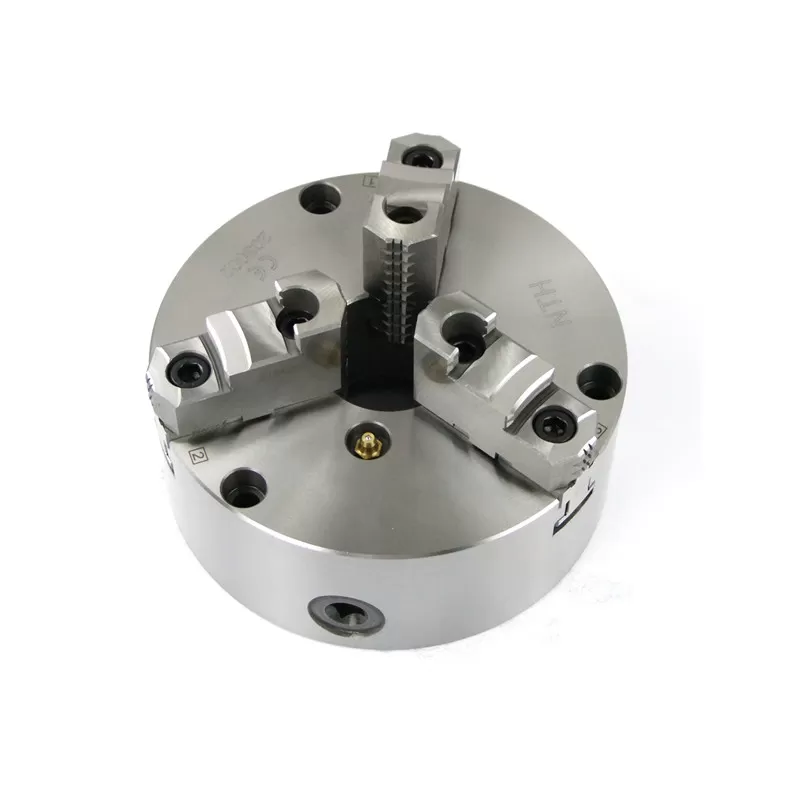

K11 SERIES DIRECT MOUNTING 3-JAW SELF-CENTERING CHUCKS TYPE C
|
Code No |
D | D1 | D2 | D3 | D4 | H1 | h | h1 | h2 | d1 | z-d |
Net wt. Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K11 125/C3 | 125 | 53.975 | 75 | 25 | 102 | 63 | 13 | 10 | - | - | 3-M10 | 6 |
| K11 125/C4 | 125 | 63.513 | 85 | 25 | 112 | 63 | 13 | 10 | 6.5 | 14.7 | 3-M10 | 6 |
|
K11 160/C3 K11 160A/C3 |
160 | 53.975 | 75 | 40 | 102 | 76 | 13 | 10 | - | - | 3-M10 | 10 |
|
K11 160/C4 K11 160A/C4 |
160 | 63.513 | 85 | 40 | 112 | 70 | 13 | 10 | 6.5 | 14.7 | 3-M10 | 10 |
|
K11 160/C5 K11 160A/C5 |
160 | 82.563 | 104.8 | 40 | 135 | 73 | 15 | 12 | 6.5 | 16.3 | 4-M10 | 10 |
|
K11 200/C4 K11 200C/C4 K11 200A/C4 |
200 | 63.513 | 133.4 | 50 | 112 | 84 | 13 | 10 | 6.5 | 14.7 | 3-M10 | 17 |
|
K11 200/C5 K11 200C/C5 K11 200A/C5 |
200 | 82.563 | 104.8 | 50 | 135 | 84 | 15 | 12 | 6.5 | 16.3 | 4-M10 | 17 |
|
K11 200/C6 K11 200C/C6 K11 200A/C6 |
200 | 106.375 | 133.4 | 50 | 170 | 84 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 17 |
|
K11 250/C5 K11 250C/C5 K11 250A/C5 |
250 | 82.563 | 171.4 | 70 | 135 | 95 | 15 | 12 | 6.5 | 16.3 | 4-M10 | 30 |
|
K11 250/C6 K11 250C/C6 K11 250A/C6 |
250 | 106.375 | 133.4 | 70 | 170 | 95 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 30 |
|
K11 250/C8 K11 250C/C8 K11 250A/C8 |
250 | 139.719 | 171.4 | 80 | 220 | 95 | 18 | 14 | 8 | 24.2 | 4-M16 | 30 |
|
K11 315/C6 K11 315C/C6 K11 315A/C6 |
315 | 106.375 | 133.4 | 100 | 170 | 103.5 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 53 |
|
K11 315/C8 K11 315C/C8 K11 315A/C8 |
315 | 139.719 | 171.4 | 100 | 220 | 106 | 18 | 14 | 8 | 24.2 | 4-M16 | 53 |
|
K11 315/C11 K11 315C/C11 K11 315A/C11 |
315 | 196.869 | 235 | 100 | 290 | 106 | 20 | 16 | 10 | 29.4 | 6-M20 | 53 |
|
K11 320/C6 K11 320C/C6 K11 320A/C6 |
320 | 106.375 | 133.4 | 100 | 170 | 103.5 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 53 |
|
K11 320/C8 K11 320C/C8 K11 320A/C8 |
320 | 139.719 | 171.4 | 100 | 220 | 106 | 18 | 14 | 8 | 24.2 | 4-M16 | 53 |
|
K11 320/C11 K11 320C/C11 K11 320A/C11 |
320 | 196.869 | 235 | 100 | 290 | 106 | 20 | 16 | 10 | 29.4 | 6-M20 | 53 |
|
K11 325/C6 K11 325C/C6 K11 325A/C6 |
325 | 106.375 | 133.4 | 100 | 170 | 103.5 | 16 | 13 | 6.5 | 19.5 | 4-M12 | 53 |
|
K11 325/C8 K11 325C/C8 K11 325A/C8 |
325 | 139.719 | 171.4 | 100 | 220 | 106 | 18 | 14 | 8 | 24.2 | 4-M16 | 53 |
|
K11 325/C11 K11 325C/C11 K11 325A/C11 |
325 | 196.869 | 235 | 100 | 290 | 106 | 20 | 16 | 10 | 29.4 | 6-M20 | 53 |
|
K11 380/C8 K11 380C/C8 K11 380A/C8 |
380 | 139.719 | 171.4 | 130 | 220 | 118 | 18 | 14 | 8 | 24.2 | 4-M16 | 79 |
|
K11 380/C11 K11 380C/C11 K11 380A/C11 |
380 | 196.869 | 235 | 135 | 290 | 118 | 20 | 16 | 10 | 29.4 | 6-M20 | 79 |
|
K11 400/C8 K11 400C/C8 K11 400A/C8 |
400 | 139.719 | 171.4 | 130 | 220 | 118 | 18 | 14 | 8 | 24.2 | 4-M16 | 79 |
|
K11 400/C11 K11 400C/C11 K11 400A/C11 |
400 | 196.869 | 235 | 135 | 290 | 118 | 20 | 16 | 10 | 29.4 | 6-M20 | 79 |
|
K11 500/C11 K11 500A/C11 |
500 | 196.869 | 235 | 190 | 290 | 135 | 20 | 16 | 10 | 29.4 | 6-M20 | 159 |
|
K11 500/C15 K11 500A/C15 |
500 | 285.775 | 330.2 | 210 | 400 | 135 | 21 | 17 | 10 | 35.7 | 6-M24 | 159 |
|
K11 630/C11 K11 630A/C11 |
500 | 196.869 | 235 | 252 | 290 | 135 | 20 | 16 | 10 | 29.4 | 6-M20 | 230 |
|
K11 630/C15 K11 630A/C15 |
630 | 285.775 | 330.2 | 252 | 400 | 135 | 21 | 17 | 10 | 35.7 | 6-M24 | 230 |
