| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | PSK-07,PSK-09,PSK-12,PSK-16,PSK-20, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | PSK 4-JAW POWERFUL TYPE SCROLL CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, lathe scroll chuck |
||

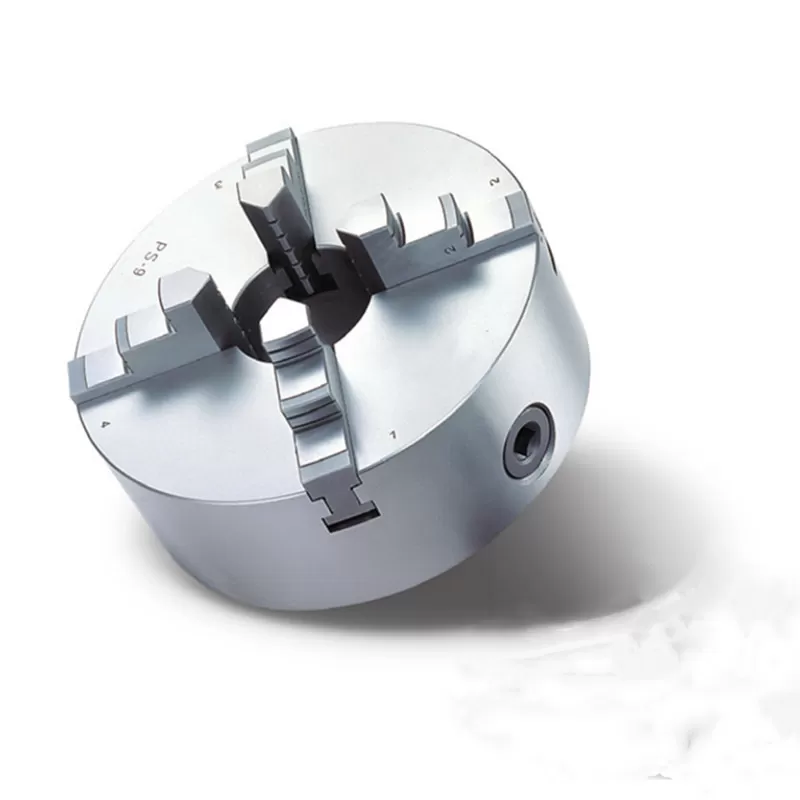

PSK 4-JAW POWERFUL TYPE SCROLL CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | I.D.Clamping Range mm | Weight kg |
|---|---|---|---|---|
| PSK-07 | 2000 | Ø8-Ø180 | Ø62-Ø170 | 12.7 |
| PSK-09 | 2000 | Ø11-Ø220 | Ø70-Ø210 | 20.8 |
| PSK-12 | 1800 | Ø15-Ø300 | Ø90-Ø290 | 43 |
| PSK-16 | 1500 | Ø30-Ø400 | Ø110-Ø380 | 86.7 |
| PSK-20 | 1000 | Ø25-Ø480 | Ø125--Ø460 | 149 |

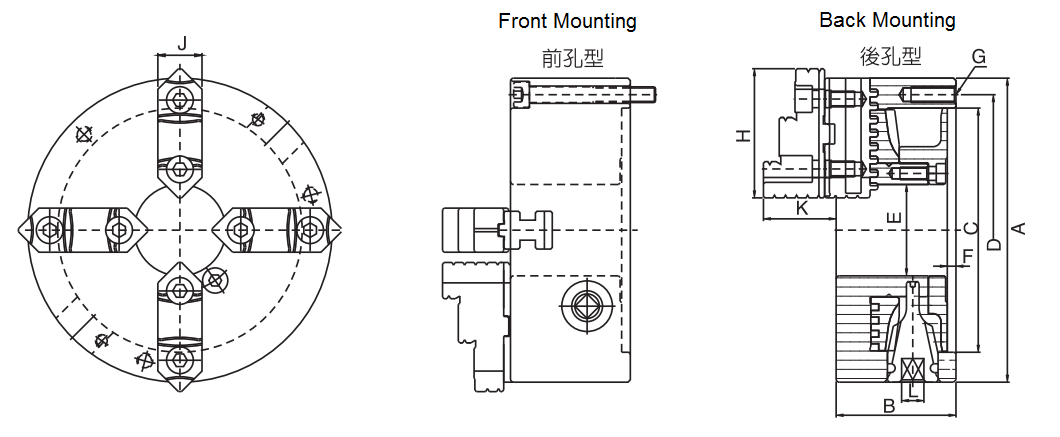

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PSK-07 | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10x1.5P | 82 | 28 | 43 | 11 |
| PSK-09 | 233 | 84 | 190 | 210 | 70 | 6 | 3-M12x1.75P | 93 | 32 | 50 | 12 |
| PSK-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12x1.75P | 118 | 40 | 56 | 14 |
| PSK-16 | 405 | 122 | 345 | 375 | 160 | 8.5 | 6-M14x2P | 150 | 50 | 75 | 15 |
| PSK-20 | 500 | 140 | 420 | 458 | 205 | 5.5 | 6-M14x2P | 140 | 55 | 84 | 19 |
Subject to technology changes without prior information
Non-standard requirements can be made
