| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | AS-04,AS-06 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | -- |
| Product Name: | AS 6-JAW AWL TYPE CHUCKS | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | manual lathe chuck, lathe scroll chuck |
||

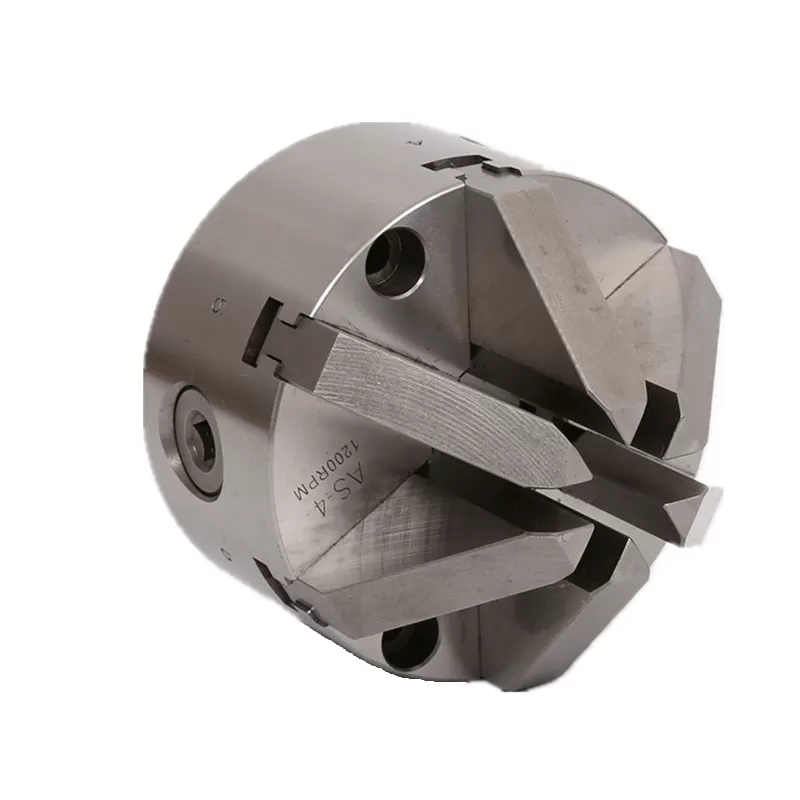

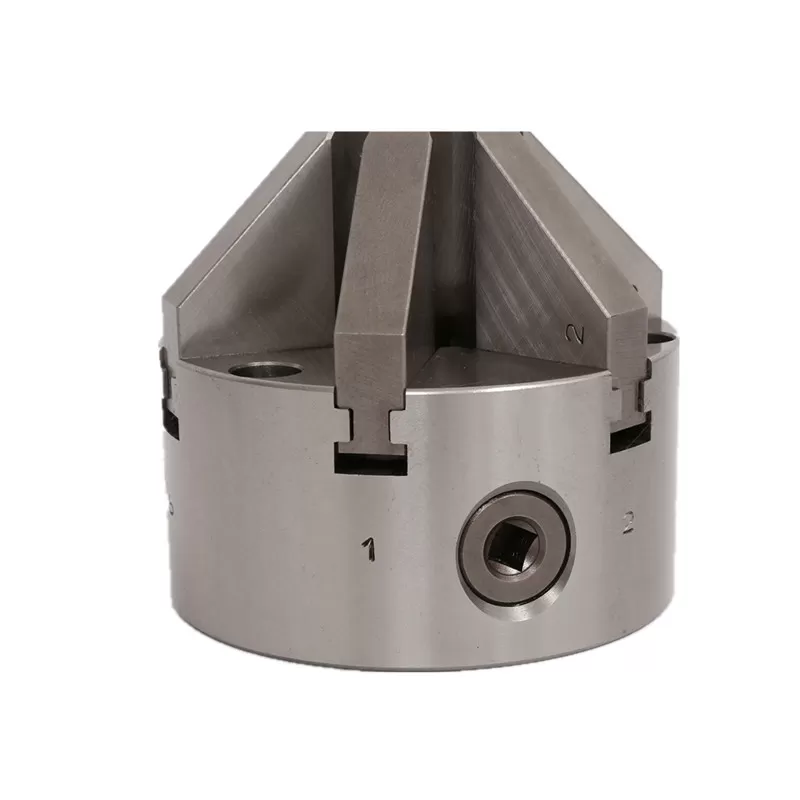

AS 6-JAW AWL TYPE CHUCKS
Specification UNIT:mm
| MODEL/SPEC | Max. RPM | O.D.Clamping Range mm | Weight kg |
|---|---|---|---|
| AS-04 | 1200 | Ø2-Ø32 | 3.8 |
| AS-06 | 1200 | Ø3-Ø60 | 8.2 |

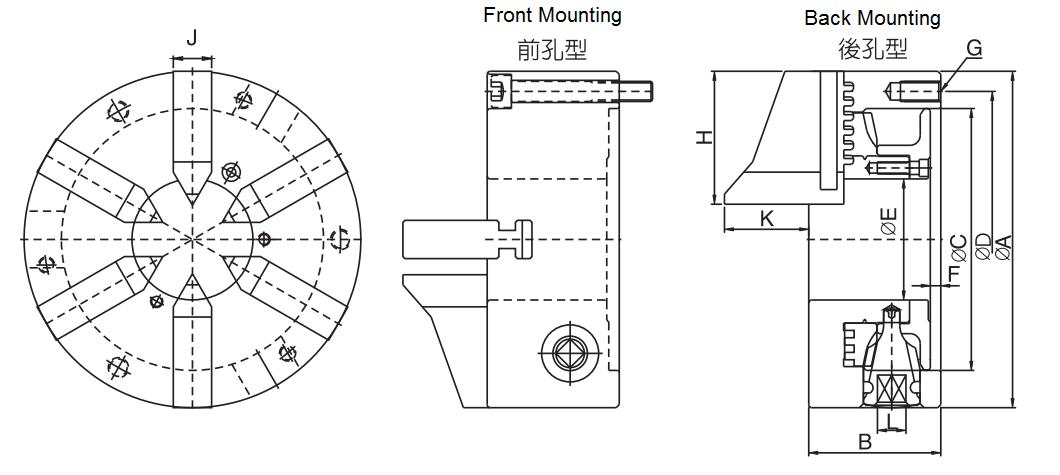

| MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-04 | 112 | 58 | 80 | 95 | 32 | 4.5 | 3-M8×1.25P | 45 | 14 | 46 | 8 |
| AS-06 | 167 | 65 | 130 | 147 | 60 | 5 | 3-M10×1.5P | 66 | 19 | 43 | 10 |
Subject to technology changes without prior information
Non-standard requirements can be made
