| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | C20-ER16-50,C20-ER16-100,C20-ER16-150,C20-ER20-50,etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HIGH QUALITY STRAIGHT SHANK MILL HOLDER | Material: | Cast Steel/Alloy Steel/Tool Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Long Lifetime/High Quality | |
| Usage: | Accessorires For Chuck Mouting | Service: | OEM/ODM Is Acceptable |
| Highlight: | milling machine collet, machine tool collets |
||

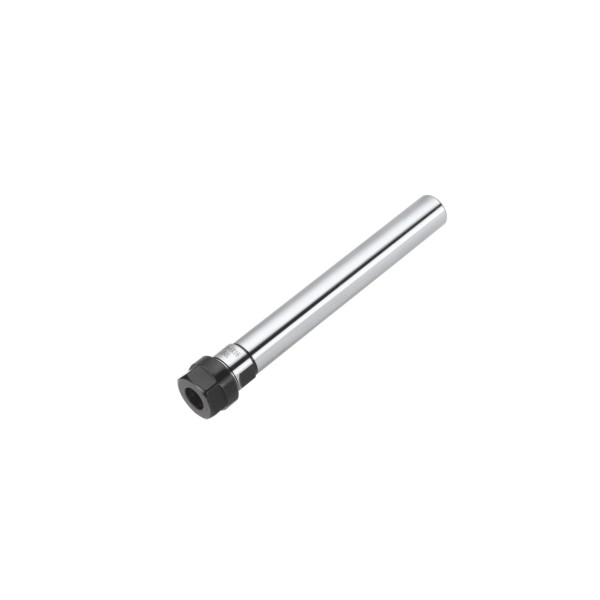

HIGH QUALITY STRAIGHT SHANK MILL HOLDER
HIGH QUALITY STRAIGHT SHANK MILL HOLDER
Brand:NTH
Description:
The light spot and cutting fluid can reach the working position
It's made from SCM-21 steel, it's applicable for precise working.

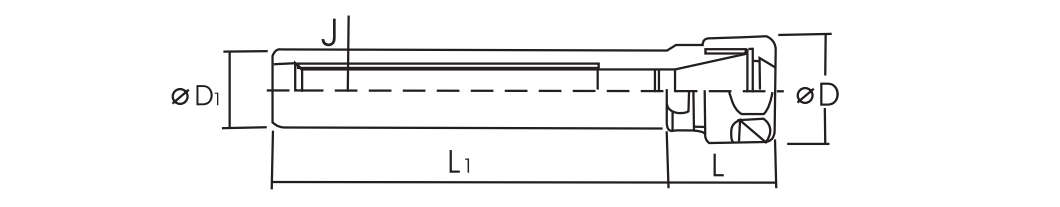

| Model | L1 | L | D |
|---|---|---|---|
| C20-ER16-50 | 50 | 30 | 28 |
| C20-ER16-100 | 100 | 30 | 28 |
| C20-ER16-150 | 150 | 30 | 28 |
| C20-ER20-50 | 50 | 36 | 34 |
| C20-ER20-100 | 100 | 36 | 34 |
| C20-ER25-50 | 50 | 46 | 42 |
| C20-ER25-100 | 100 | 46 | 42 |
| C20-ER25-150 | 150 | 46 | 42 |
| C25-ER16-100 | 100 | 30 | 28 |
| C25-ER16-150 | 150 | 30 | 28 |
| C25-ER20-150 | 150 | 36 | 34 |
| C25-ER25-100 | 100 | 46 | 42 |
| C25-ER25-150 | 150 | 46 | 42 |
| C25-ER32-80 | 80 | 54 | 50 |
| C25-ER40-100 | 100 | 55 | 63 |
| C32-ER25-60 | 60 | 46 | 42 |
| C32-ER32-100 | 100 | 54 | 50 |
| C40-ER40-100 | 100 | 55 | 63 |
| C40-ER32-100 | 100 | 54 | 50 |
| C40-ER40-100 | 100 | 55 | 63 |
