| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | BT30-45°,BT40-45°,BT50-45°,BT30-60°,BT40-60°,BT50-60°,BT30-90°,BT40-90°,BT50-90°, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | BT PULL STUD FOR MILLING CHUCK | Material: | Cast Steel/Alloy Steel/Tool Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Long Lifetime/High Quality | |
| Usage: | Accessorires For Chuck Mouting | Service: | ODM/OEM Is Available |
| Highlight: | machine tool collets, end mill collet |
||

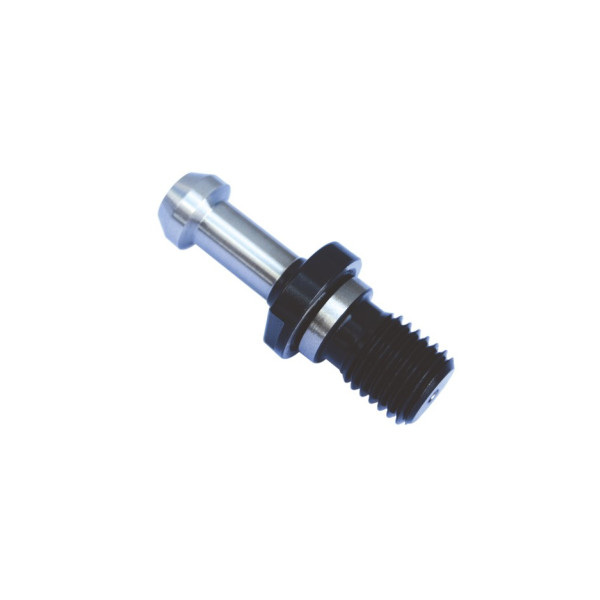

BT PULL STUD FOR MILLING CHUCK
BT PULL STUD FOR MILLING CHUCK
Brand:NTH

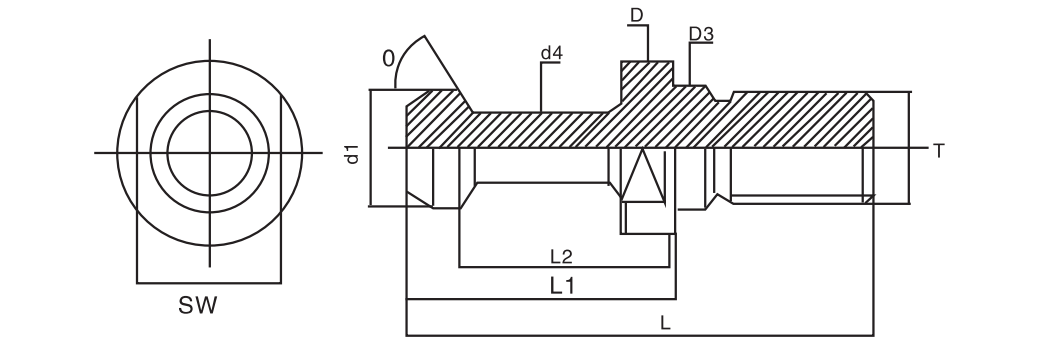

| SPEC. MODEL | D | d1 | d2 | d3 | L | L1 | T | Weight (KGS) |
|---|---|---|---|---|---|---|---|---|
| BT30-45° | 16.5 | 11 | 7 | 12.5 | 43 | 23 | M12 | 0.04 |
| BT40-45° | 23 | 15 | 10 | 17 | 60 | 35 | M16 | 0.1 |
| BT50-45° | 38 | 23 | 17 | 25 | 85 | 45 | M24 | 0.3 |
| BT30-60° | 16.5 | 11 | 7 | 12.5 | 43 | 23 | M12 | 0.04 |
| BT40-60° | 23 | 15 | 10 | 17 | 60 | 35 | M16 | 0.1 |
| BT50-60° | 38 | 23 | 17 | 25 | 85 | 45 | M24 | 0.3 |
| BT30-90° | 16.5 | 11 | 7 | 12.5 | 43 | 23 | M12 | 0.04 |
| BT40-90° | 23 | 15 | 10 | 17 | 60 | 35 | M16 | 0.1 |
| BT50-90° | 38 | 23 | 17 | 25 | 85 | 45 | M24 | 0.3 |
