| Place of Origin: | OMATEI |
|---|---|
| Brand Name: | SC0603048,SC0603060,SC0603080 |
| Model Number: | 1 set |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | EXTRA WIDTH SOFT JAWS | Material: | 45#Steel/Aluminum |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/Extra Width |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, machining soft jaws |
||

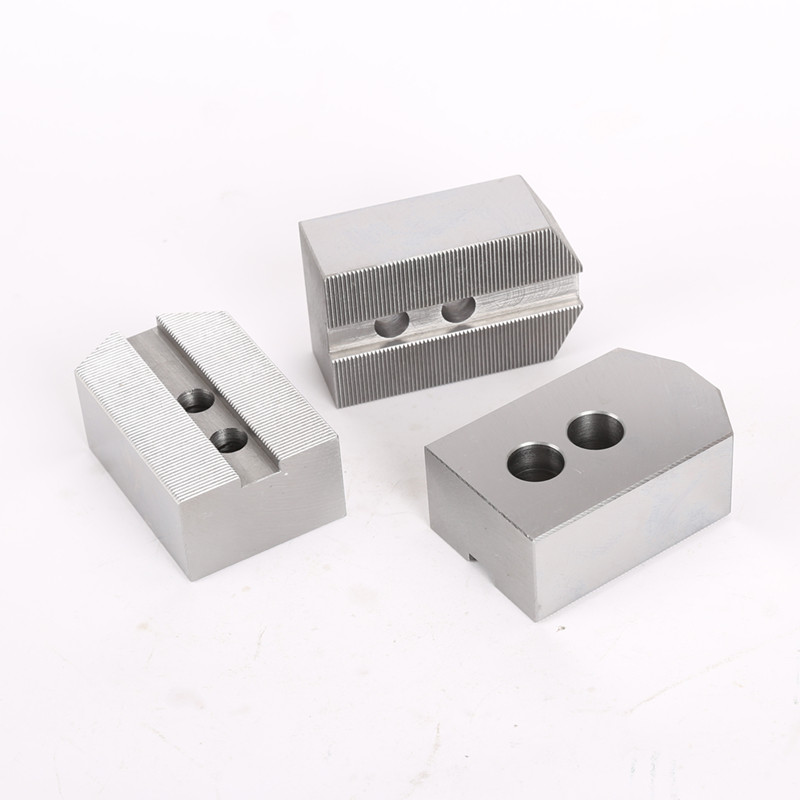

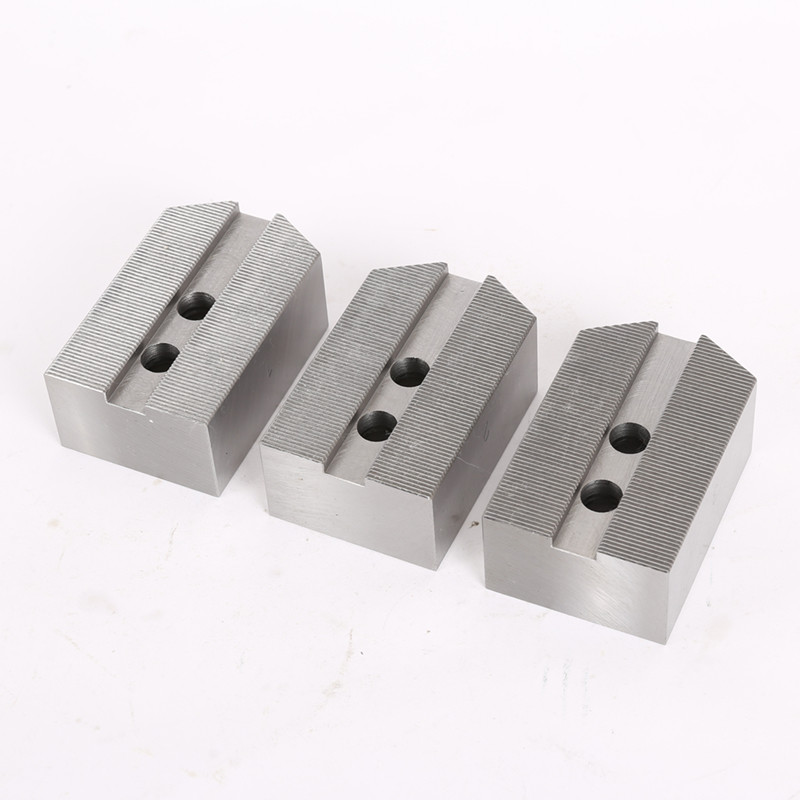

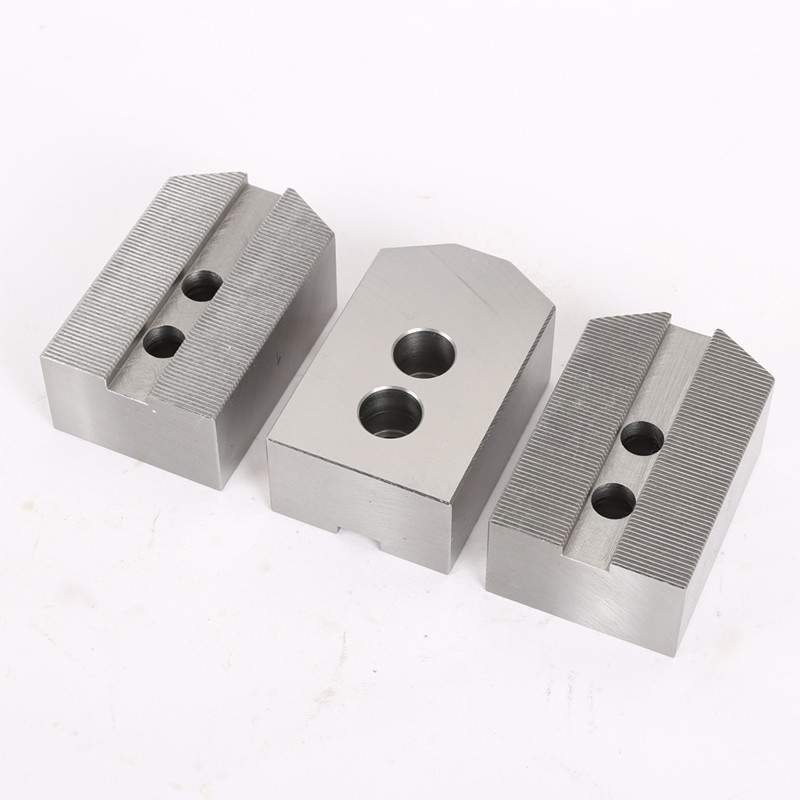

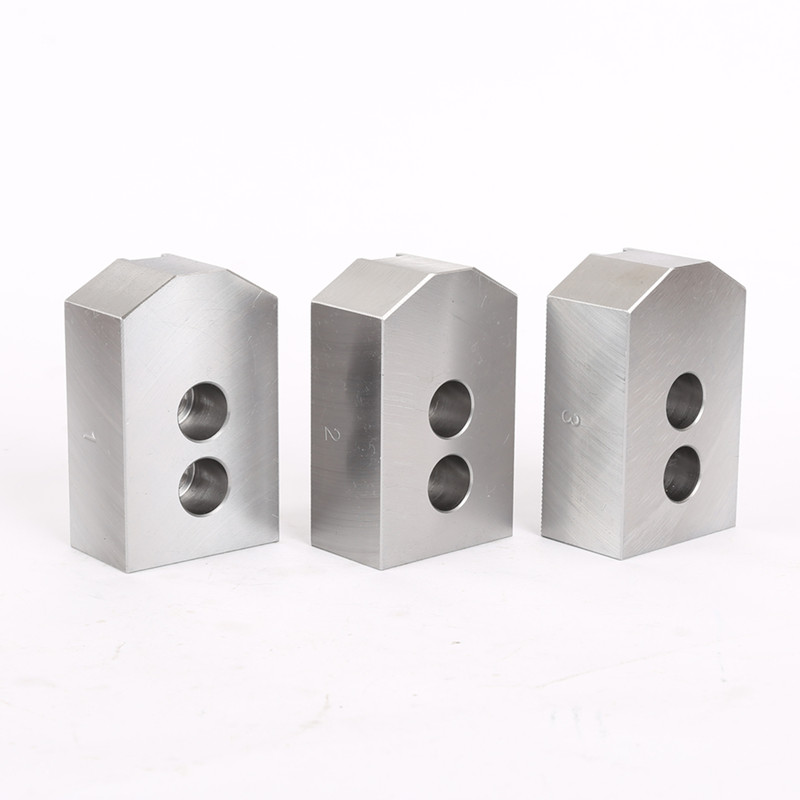

EXTRA WIDTH SOFT JAWS
EXTRA WIDTH SOFT JAWS
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
4, Customized and non-standard jaws and be designed and OEM.

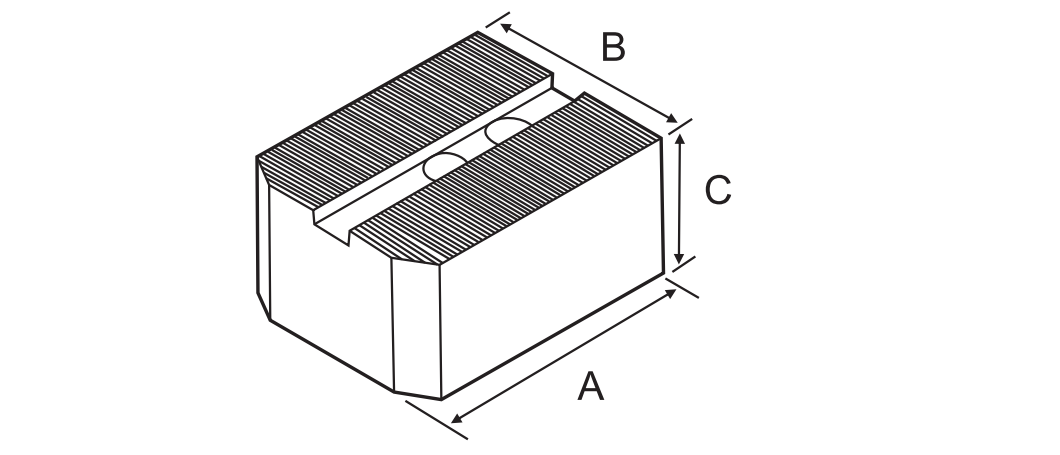

| Model/Spec | Length A | Weight B | Height C | Serration |
| SC0603048 | 73 | 48 | 30 | 1.5×60° |
| SC0603060 | 73 | 60 | 30 | 1.5×60° |
| SC0603080 | 73 | 80 | 30 | 1.5×60° |
| SC0604848 | 73 | 48 | 48 | 1.5×60° |
| SC0604863 | 73 | 63 | 48 | 1.5×60° |
| SC0606060 | 73 | 60 | 60 | 1.5×60° |
| SC0803648 | 95 | 48 | 36 | 1.5×60° |
| SC0803663 | 95 | 63 | 36 | 1.5×60° |
| SC0803680 | 95 | 80 | 36 | 1.5×60° |
| SC0804848 | 95 | 48 | 48 | 1.5×60° |
| SC0804873 | 95 | 73 | 48 | 1.5×60° |
| SC0804890 | 95 | 90 | 48 | 1.5×60° |
| SC0806363 | 95 | 63 | 63 | 1.5×60° |
| SC0807373 | 95 | 73 | 73 | 1.5×60° |
| SC0808383 | 95 | 83 | 83 | 1.5×60° |
| SC1004263 | 110 | 63 | 42 | 1.5×60° |
| SC10042100 | 110 | 100 | 42 | 1.5×60° |
| SC1004873 | 100 | 73 | 48 | 1.5×60° |
| SC1006363 | 110 | 63 | 63 | 1.5×60° |
| SC1007373 | 110 | 73 | 73 | 1.5×60° |
| SC1008383 | 110 | 83 | 83 | 1.5×60° |
Other option of serration pitch: 3.0*60°; Customized spec can be made
Subject to technical changes
