| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 3E-05,3E-06,3E-08 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | STANDARD SOFT JAW FOR 3E CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/For 3E Chuck |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | machining soft jaws, cnc soft jaws |
||
STANDARD SOFT JAW FOR 3E CHUCK
STANDARD SOFT JAW FOR 3E CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Autogrip/SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

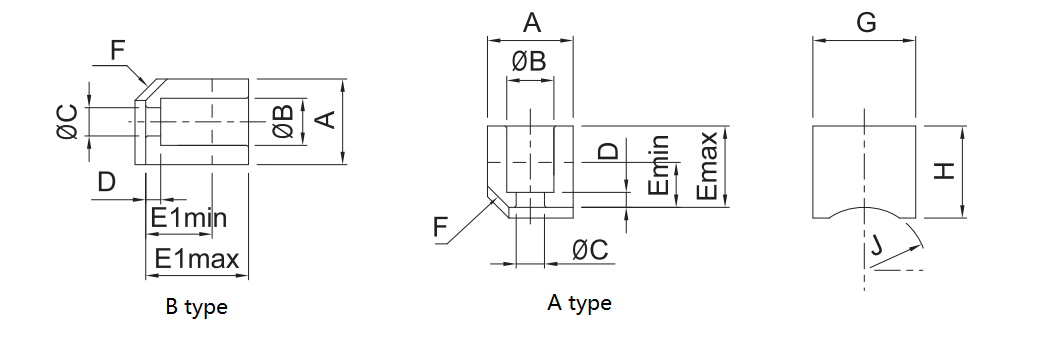

Model/Dim. | A | B | C | D | Emax. | Emin. | E1max . | E1min. | F | G | H | J |
| 3E-05 | 20 | 11 | 6.6 | 3.5 | 34 | 25 | 41.5 | 33.5 | C5 | 24 | 21.5 | 14.7 |
| 3E-06 | 23 | 11 | 6.6 | 4 | 44 | 35 | 54 | 43.5 | C5 | 30 | 28.5 | 22.7 |
| 3E-08 | 32 | 14 | 9 | 6 | 54 | 45 | 70.5 | 57.5 | C5 | 35 | 37 | 33.25 |
Subject to technical changes
