| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 3A-203,3A-204,3A-205,3A-206,3A-208,3A-210,3A-212 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | STANDARD SOFT JAW FOR 3A CHUCK | Material: | 45# Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/For 3A CHUCK |
| Usage: | Service: | ODM/OEM Is Available | |
| Highlight: | machining soft jaws, cnc soft jaws |
||
STANDARD SOFT JAW FOR 3A CHUCK
STANDARD SOFT JAW FOR 3A CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

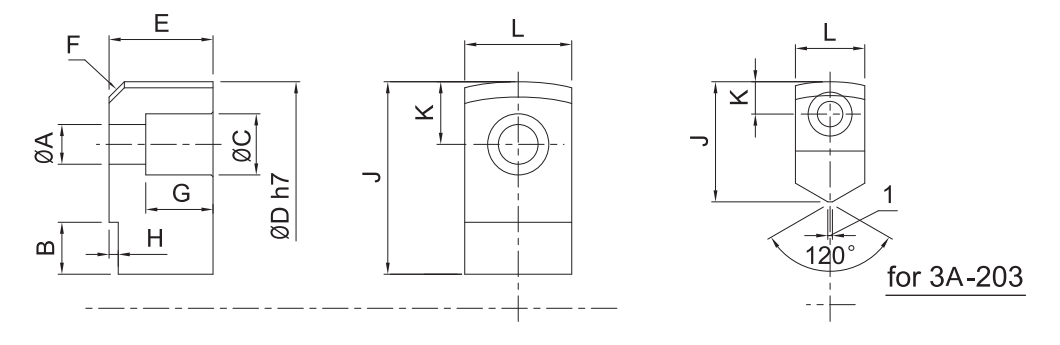

| Model / Dim. | A | B | C | D | E | F | G | H | J | K | L |
| 3A-203 | 5.5 | 11 | 9.5 | 66 | 12 | C3 | 7 | 3 | 26 | 7 | 15 |
| 3A-204 | 6.6 | 11 | 11 | 84 | 17 | C4 | 11 | 3 | 32 | 9.5 | 20 |
| 3A-205 | 9 | 13.5 | 14 | 108 | 20 | C4 | 12 | 3 | 41.5 | 13 | 24 |
| 3A-206 | 11 | 15 | 17 | 129 | 30 | C5 | 20 | 3 | 50 | 17 | 30 |
| 3A-208 | 13 | 15 | 20 | 156 | 34 | C5 | 22 | 3 | 63 | 20.5 | 35 |
| 3A-210 | 15 | 20 | 22 | 187 | 39 | C5 | 24 | 4 | 74 | 23 | 40 |
| 3A-212 | 15 | 18 | 22 | 234 | 44 | C5 | 29 | 4 | 72 | 23 | 40 |
Subject to technical changes
