| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC12H60,SC12H70 etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK | Material: | 45#Steel/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | machining soft jaws, cnc soft jaws |
||

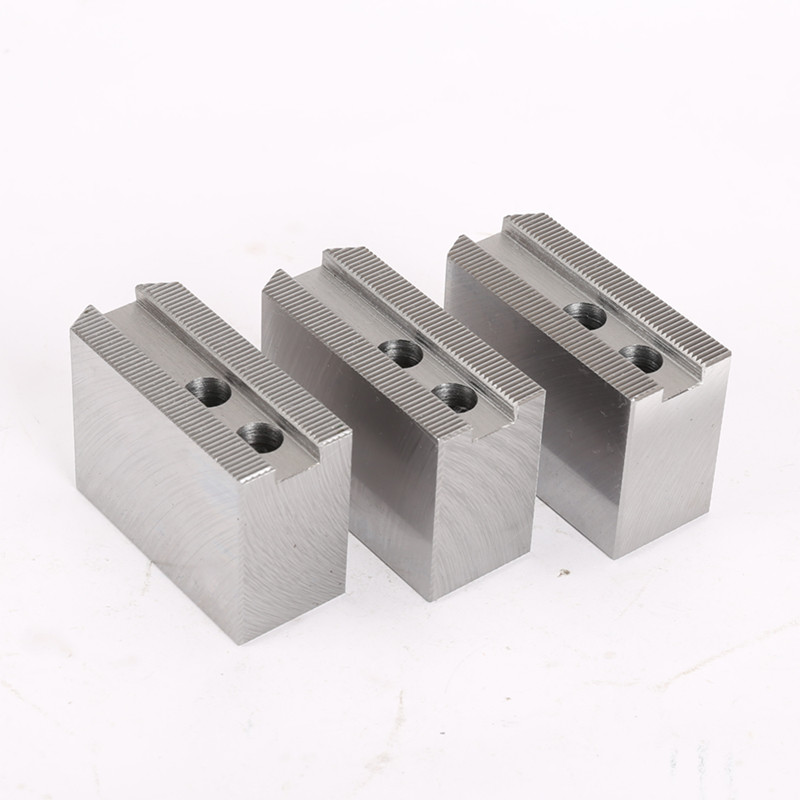

SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK
SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
2, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

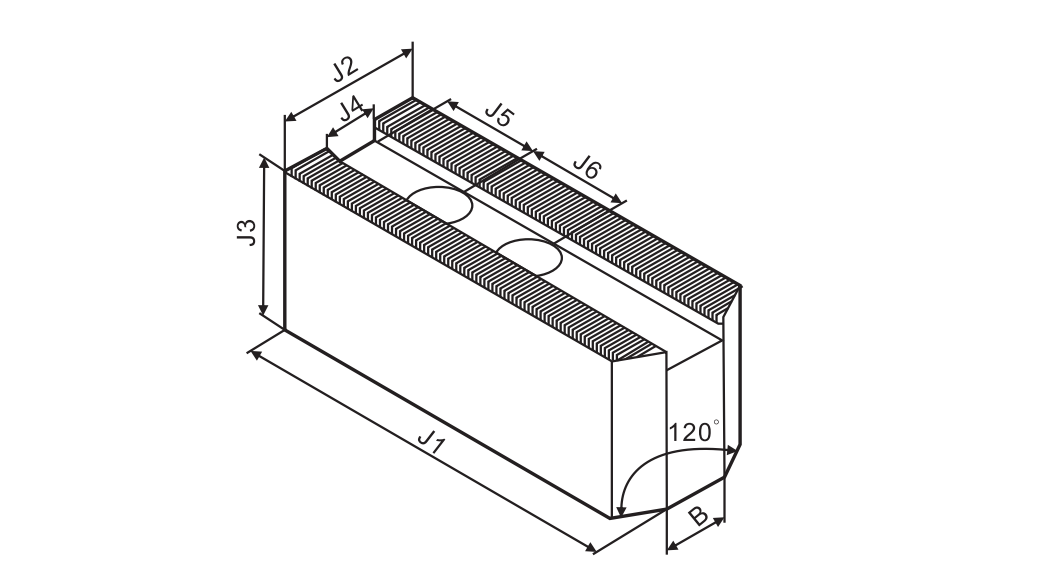

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight kg/set |
| SC12H60 | 129 | 50 | 60 | 21/18 | 39 | 30 | 23/20 | M14 | 7.8 |
| SC12H70 | 129 | 50 | 70 | 21/18 | 39 | 30 | 23/20 | M14 | 9.1 |
| SC12H80 | 129 | 50 | 80 | 21/18 | 39 | 30 | 23/20 | M14 | 10.5 |
| SC12H90 | 129 | 50 | 90 | 21/18 | 39 | 30 | 23/20 | M14 | 11.6 |
| SC12H100 | 129 | 50 | 100 | 21/18 | 39 | 30 | 23/20 | M14 | 12.9 |
| SC12H110 | 129 | 50 | 110 | 21/18 | 39 | 30 | 23/20 | M14 | 14.2 |
| SC12H120 | 129 | 50 | 120 | 21/18 | 39 | 30 | 23/20 | M14 | 15.6 |
| SC12H130 | 129 | 50 | 130 | 21/18 | 39 | 30 | 23/20 | M14 | 17 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
