| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC10H50,SC10H60 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and comfirm package is suitable for sea and shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC10 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCK | Material: | 45#steel/brass/plastic |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

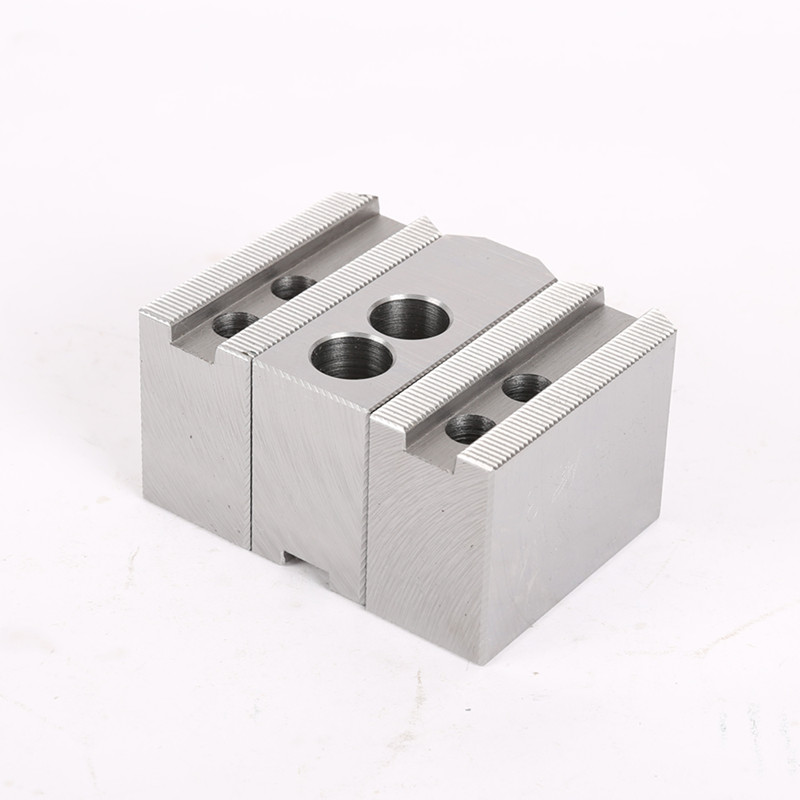

SC10 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCK
SC10 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Customized and non-standard jaws and be designed and OEM.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of NTH/SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip and so on well-known brand.
4, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.

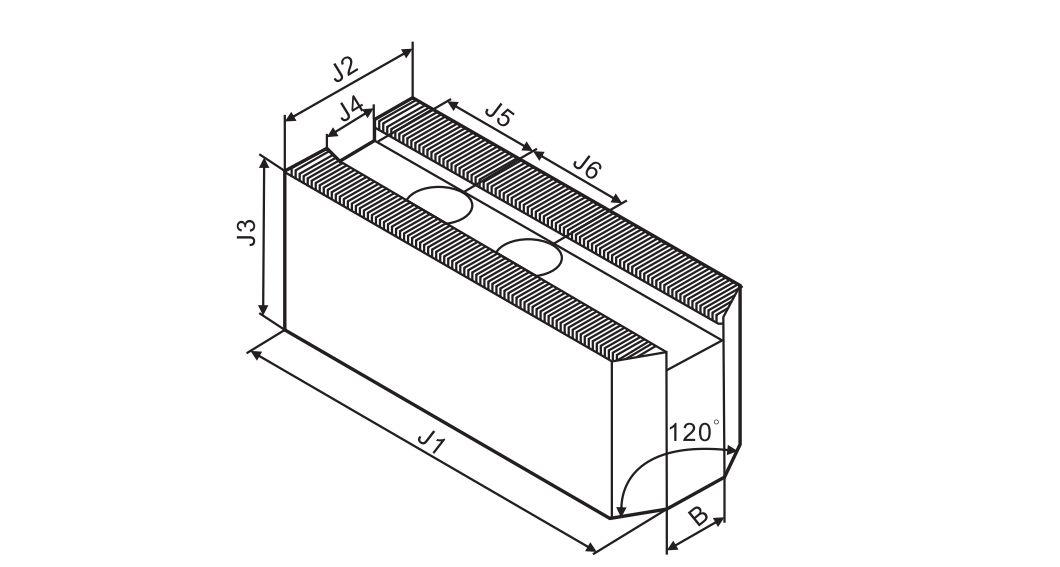

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight kg/set |
| SC10H50 | 110 | 40 | 50 | 16 | 30 | 30 | 18 | M12 | 4.2 |
| SC10H60 | 110 | 40 | 60 | 16 | 30 | 30 | 18 | M12 | 5.3 |
| SC10H70 | 110 | 40 | 70 | 16 | 30 | 30 | 18 | M12 | 6.1 |
| SC10H80 | 110 | 40 | 80 | 16 | 30 | 30 | 18 | M12 | 7.1 |
| SC10H90 | 110 | 40 | 90 | 16 | 30 | 30 | 18 | M12 | 8 |
| SC10H100 | 110 | 40 | 100 | 16 | 30 | 30 | 18 | M12 | 8.8 |
| SC10H110 | 110 | 40 | 110 | 16 | 30 | 30 | 18 | M12 | 9.5 |
| SC10H120 | 110 | 40 | 120 | 16 | 30 | 30 | 18 | M12 | 10.5 |
| SC10H130 | 110 | 40 | 130 | 16 | 30 | 30 | 18 | M12 | 11.1 |
| SC10H140 | 110 | 40 | 140 | 16 | 30 | 30 | 18 | M12 | 12.2 |
| SC10H150 | 110 | 40 | 150 | 16 | 30 | 30 | 18 | M12 | 13 |
| SC10H160 | 110 | 40 | 160 | 16 | 30 | 30 | 18 | M12 | 14 |
| SC10H170 | 110 | 40 | 170 | 16 | 30 | 30 | 18 | M12 | 14.8 |
| SC10H180 | 110 | 40 | 180 | 16 | 30 | 30 | 18 | M12 | 15.8 |
| SC10H190 | 110 | 40 | 190 | 16 | 30 | 30 | 18 | M12 | 16.6 |
| SC10H200 | 110 | 40 | 200 | 16 | 30 | 30 | 18 | M12 | 17.5 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
