| Product Name: | APS EXTRA LARGE THRU HOLE AIR CHUCK DOUBLE SPEED JAW STROKE | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | APS EXTRA LARGE AIR CHUCK, THRU HOLE AIR CHUCK, DOUBLE SPEED JAW STROKE AIR CHUCK |
||

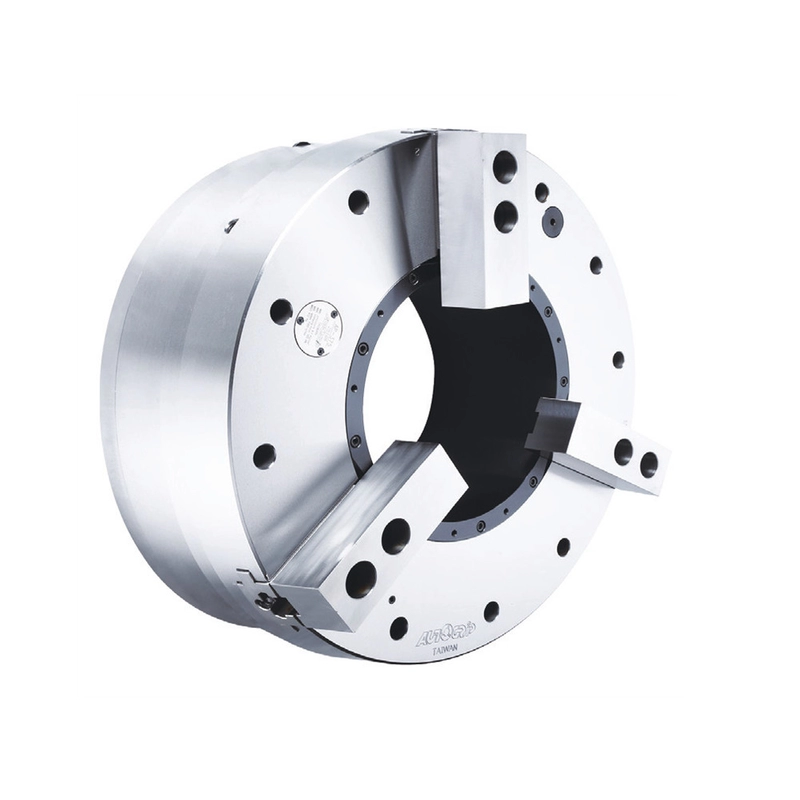

APS EXTRA LARGE THRU HOLE AIR CHUCK DOUBLE SPEED JAW STROKE
Brand:NTH
With built-in "pressure detection" device which can check the rapidly decreasing pressure within the chuck, guarantee to the security when operating.
Patented air supply system, it is easy to install and maintain. No abrasion issue of traditional sealed ring. Maintenance cost and time can be saved.
The build-in "clamping detection" device can avoid jaws clamping the workpiece during the rapid stroke stage. This mechanism can also prevent causing the damage of the internal parts or flying out of workpiece.(only for external clamping).
Extended jaw stroke design can shorten the processing time when gripping.
Notice: No enough clamping force in rapid stroke period.
(Size unit: mm)
| Model | Thru-hole Dia.(mm) | Jaw stroke (Dia.) (mm) | Chucking Dia. Max. (mm) | Chucking Dia. Min. (mm) | Gripping Force (at 0.6 Mpa) kN (kgf) |
| APS-185 | 185 | 26/14 | 460 | 127 | 110(11216) |
| Model | Liter Air Consumption (at 0.6 Mpa) | Max. speed min-1(r.p.m.) | Moment of Inertia kg‧m2 | Weight (kg) |
| APS-185 | 22 | 1300 | 6.45 | 198 |

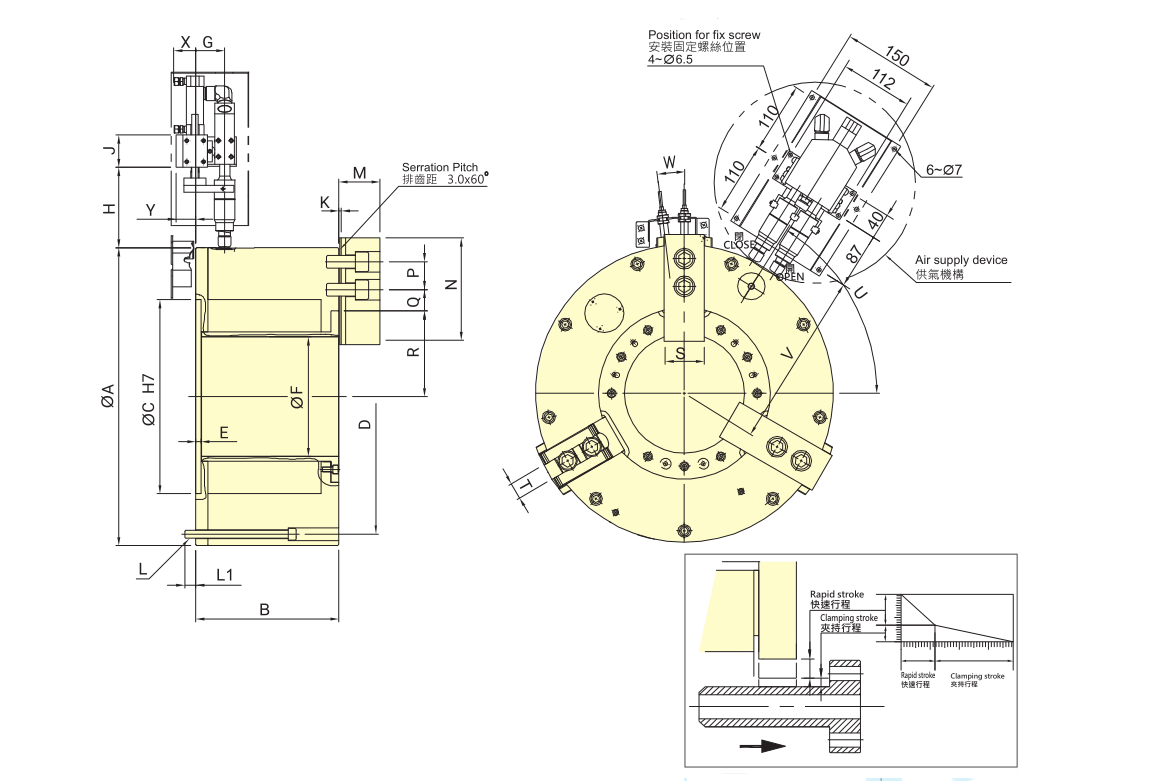

| Model | A | B | C | D | E | F | G | H | J | K | L | L1 | M | N | P |
| APS-185 | 460 | 221 | 300 | 425 | 8 | 185 | 45 | 124 | 50 | 3.5 | 9~M12 | 17 | 63.7 | 165 | 43 |
| Model | Q max. | Q min. | R max. | R min. | S | T | U | V | W | X | Y |
| APS-185 | 37 | 17 | 145 | 125 | 62 | 25.5 | 58 | 272 | 7° | 38 | 30 |
Subject to technology changes without prior information
Non-standard requirements can be made
