| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | BB-206 A5,BB-208 A5,BB-208 A6,BB-210 A6 etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | BB 3-JAW EXTRA THROUGH HOLE POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power collet chuck |
||

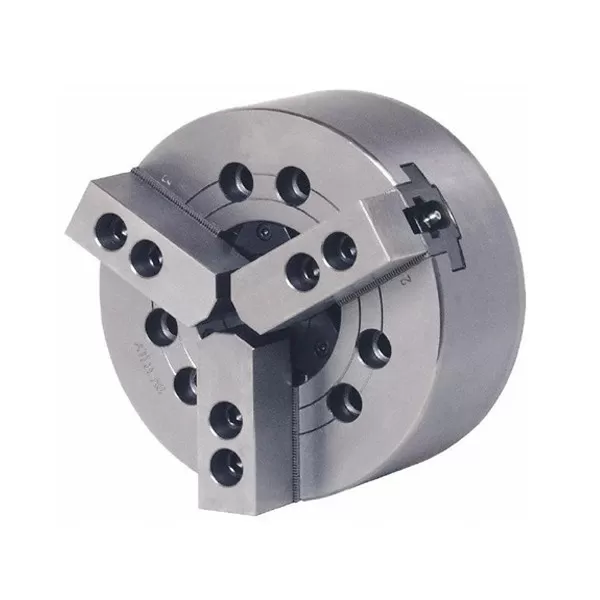

BB 3-JAW EXTRA THROUGH HOLE POWER CHUCK
Brand:NTH
It‵s a WEDGE-HOOK type 3-jaw with the extra large through-hole.
Matching surfaces of all parts hardened,ground and lubricated directly
Construction of high rigidity and high clamping accuracy.
Size unit: mm
| Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max chucking Dia. mm | Min chucking Dia. mm | Max.D.B.Pull kgf |
|---|---|---|---|---|---|
| BB-206 A5 | 12 | 5.5 | 170 | 22 | 1900 |
| BB-208 A5 | 16 | 7.4 | 210 | 27 | 2850 |
| BB-208 A6 | 16 | 7.4 | 210 | 27 | 2850 |
| BB-210 A6 | 19 | 8.8 | 254 | 34 | 3900 |
| BB-210 A8 | 19 | 8.8 | 254 | 34 | 3900 |
| BB-212 A8 | 23 | 10.6 | 315 | 47 | 6000 |
| BB-215 A15 | 23 | 10.6 | 405 | 60 | 7240 |
| BB-218 A15 | 23 | 10.6 | 457 | 75 | 7240 |
| Spec Model | Max clamping force kgf | Max RPM | I kg*m2 | Weight kg | Weight(Ad.) kg | Matched cylinders |
|---|---|---|---|---|---|---|
| BB-206 A5 | 5800 | 5300 | 0.06 | 11 | 12.8 | H-1552/HK-1552 |
| BB-208 A5 | 8550 | 4600 | 0.15 | 23 | 25.5 | H-1868/HK-1868 |
| BB-208 A6 | 8550 | 4600 | 0.15 | 23 | 24.1 | H-1868/HK-1868 |
| BB-210 A6 | 11300 | 4000 | 0.32 | 34 | 41 | H-1878/HK-1878 |
| BB-210 A8 | 11300 | 4000 | 0.32 | 34 | 39.5 | H-1878/HK-1878 |
| BB-212 A8 | 15600 | 3500 | 0.73 | 51 | 58 | H-2511/HK-2511 |
| BB-215 A15 | 18350 | 2500 | 2.3 | 127.4 | 138.8 | HK-2114 |
| BB-218 A15 | 18355 | 2000 | 4.77 | 161 | 172 | ML2816 |

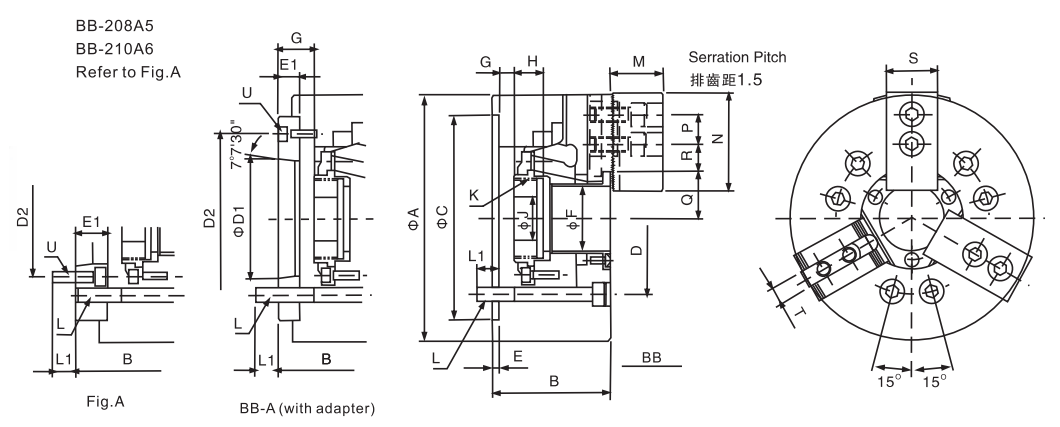

Spec Model | A | B | B (Ad.) | C(H6) | D | D1 | D2 | E | E1 | F | Gmax | Gmax(Ad.) | Gmin | Gmin(Ad.) | H | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BB-206 A5 | 170 | 81 | 91 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 52 | 11 | 26 | -1 | 14 | 19 | 20 |
| BB-208 A5 | 210 | 91 | 109 | 170 | 133.4 | 83.56 | 104.8 | 6 | 23 | 66 | 14.5 | 37.5 | -1.5 | 21.5 | 20.5 | 30 |
| BB-208 A6 | 210 | 91 | 103 | 170 | 133.4 | 106.38 | 150 | 7 | 17 | 66 | 14.5 | 31.5 | -0.5 | 15.5 | 20.5 | 30 |
| BB-210 A6 | 254 | 100 | 120 | 220 | 171.5 | 107.38 | 133.4 | 8 | 25 | 86 | 8.5 | 33.5 | -10.5 | 14.5 | 25 | 45 |
| BB-210 A8 | 254 | 100 | 113 | 221 | 235 | 139.72 | 190 | 9 | 18 | 86 | 8.5 | 26.5 | -9.5 | 7.5 | 25 | 45 |
| BB-212 A8 | 315 | 110 | 126 | 300 | 235 | 196.8 | 260 | 6 | 33 | 122 | 8 | 30 | -15 | 15 | 28 | 50 |
| BB-215 A15 | 405 | 133 | 154 | 380 | 330.2 | 185.78 | 330.2 | 7 | 22 | 142 | 11 | 38 | -12 | 22 | 39 | 60 |
| BB-218 A15 | 457 | 133 | 154 | 380 | 330.2 | 285.78 | 330.2 | 6 | 27 | 166.5 | 34 | 61 | 11 | 38 | 43 | - |
| Spec Model | K max | L | L1 | L1(Ad.) | M | N | P | Q max | Q min | R max | R min | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BB-206 A5 | M60×2 | 6-M10 | 16 | 16 | 37 | 73 | 20 | 35.5 | 32.8 | 20.1 | 9.3 | 31 | 12 | 3-M6 |
| BB-208 A5 | M74×2 | 6-M12 | 20 | 17 | 38 | 95 | 25 | 45.7 | 42 | 23.8 | 14.3 | 35 | 14 | 6-M10 |
| BB-208 A6 | M74×2 | 6-M12 | 20 | 18 | 38 | 95 | 25 | 45.7 | 42 | 23.8 | 14.3 | 35 | 14 | 3-M6 |
| BB-210 A6 | M87×2 | 6-M16 | 22 | 19 | 43 | 110 | 30 | 52 | 47.6 | 34.5 | 12 | 40 | 16 | 6-M12 |
| BB-210 A8 | M87×2 | 6-M16 | 22 | 24 | 43 | 110 | 31 | 52 | 47.6 | 34.5 | 12 | 40 | 16 | 3-M8 |
| BB-212 A8 | M135×2 | 6-M20 | 30 | 28 | 51 | 130 | 32 | 74.2 | 63.5 | 45.75 | 15.75 | 50 | 21 | 3-M10 |
| BB-215 A15 | M155×2 | 6-M24 | 35 | 38 | 63 | 165 | 43 | 93.5 | 85.7 | 43.75 | 18.25 | 62 | 22 | 3-M12 |
| BB-218 A15 | M180×3 | 6-M24 | 30 | 33 | 66 | 165 | 43 | 96.7 | 85.2 | 63.25 | 18.25 | 62 | 22 | 3-M12 |
Subject to technology changes without prior information
Non-standard requirements can be made
