| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | AP(2) Series |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | AP LARGE THROUGH HOLE AIR CHUCK FORGED STEEL | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | LARGE THROUGH HOLE AIR CHUCK, AP LARGE THROUGH HOLE AIR CHUCK, FORGED STEEL THROUGH HOLE AIR CHUCK |
||

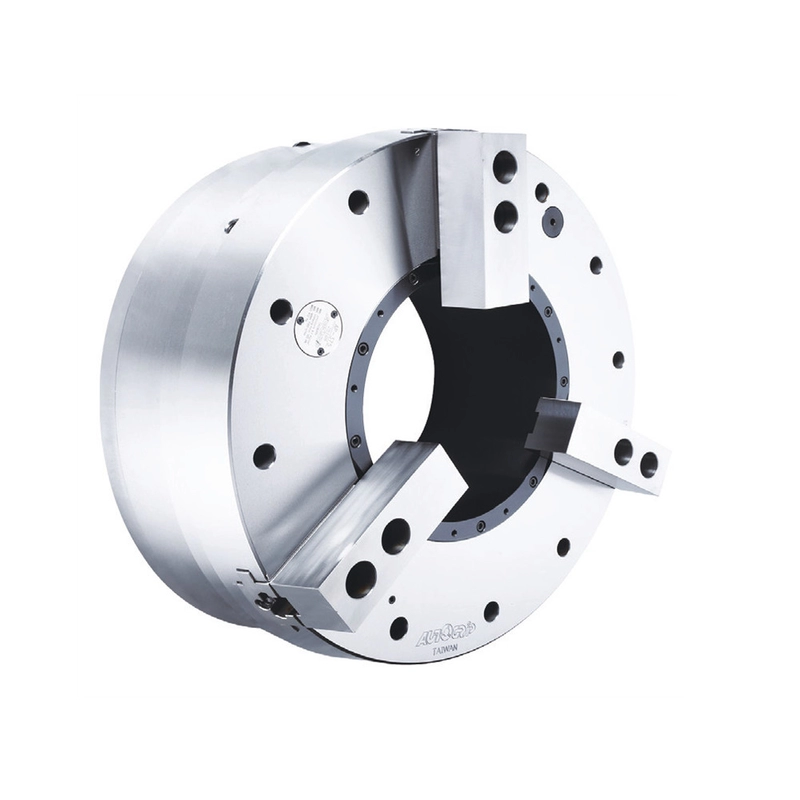

AP LARGE THROUGH HOLE AIR CHUCK FORGED STEEL
Brand:NTH
Extra Large through-hole 3-jaw power chuck with built-in air cylinder.
With built-in “pressure detection” device in chuck which can check the pressure is lowered rapidly within the chuck, guarantee to the security of operating.
Patented air supply system, it is easy to install and maintain. No abrasion issue of traditional sealed ring. Maintenance cost and time can be saved.
(Size unit: mm)
Model |
Thru-hole Dia. |
Jaw strok (Dia.) |
Chucking Dia. Max. (mm). |
Chucking Dia. Min. (mm) |
Max. pressure |
| AP-145A11 | 145 | 14 | 420 | 62 | 0.6(6.1) |
| AP-185A15 | 185 | 14 | 460 | 100 | 0.6(6.1) |
| AP-230A15 | 230 | 17 | 535 | 170 | 0.6(6.1) |
| AP-275A20 | 275 | 17 | 580 | 200 | 0.6(6.1) |
| AP-320A20 | 320 | 17 | 658 | 200 | 0.6(6.1) |
| AP-375A20 | 375 | 24 | 738 | 260 | 0.6(6.1) |
| Model | Max. clamping force kN (kgf) | Max. speed min(r.p.m.) | Inertia kg‧m2 | Weight (kg) |
Weight (kg) Adapter Included | Air Consumption (at 6kgf/cm2) |
| AP-145A11 | 85.0(8667) | 1700 | 3.8 | 156 | 182 | 17.8 |
| AP-185A15 | 110.0(11216) | 1300 | 6.0 | 188 | 223 | 22 |
| AP-230A15 | 125.0(12742) | 1300 | 11.1 | 265 | 310 | 34 |
| AP-275A20 | 140.0(14271) | 1100 | 15.5 | 301 | 346 | 39 |
| AP-320A20 | 184.0(18762) | 1000 | 27.2 | 415 | 505 | 45 |
| AP-375A20 | 188.0(19115) | 850 | 44.2 | 530 | 545 | 55 |

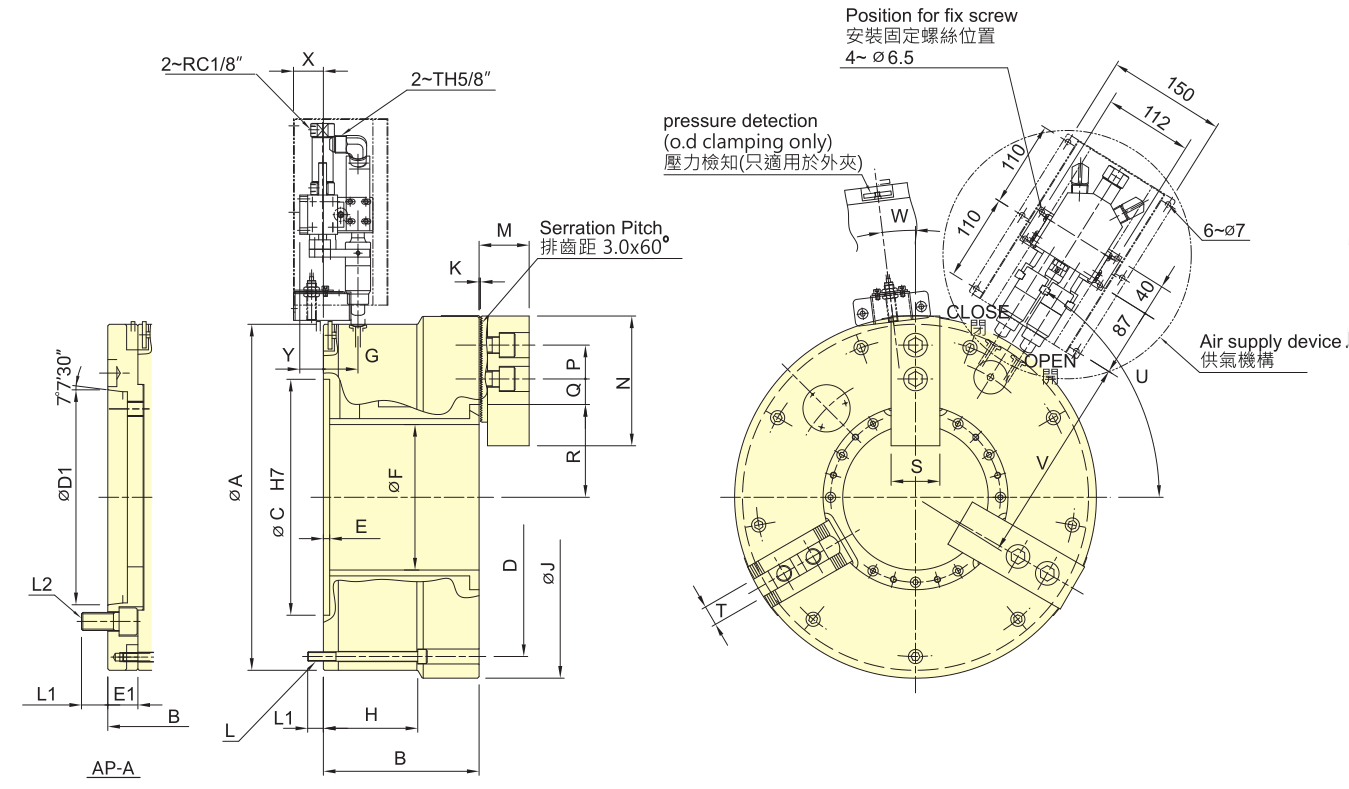

| Model | A | B | C | D | D1 | E | E1 | F | G | H | J | K | L | L1 | L1 |
| AP-145A11 | 400 | 198/231 | 300 | 365 | 196.87 | 8 | 33 | 145 | 34 | 120 | 420 | 3.5 | 9~M12 | 20 | 31 |
| AP-185A15 | 460 | 198/238 | 300 | 405 | 285.78 | 8 | 40 | 185 | 44 | 120 | 460 | 3.5 | 9~M12 | 20 | 35 |
| AP-230A15 | 515 | 226/266 | 380 | 483 | 285.78 | 8 | 40 | 230 | 49 | 145 | 535 | 3.5 | 6~M16 | 24 | 35 |
| AP-275A20 | 560 | 232/272 | 380 | 528 | 412.78 | 8 | 40 | 275 | 52 | 152 | 580 | 3.5 | 6~M16 | 24 | 35 |
| AP-320A20 | 615 | 256/306 | 520 | 580 | 412.78 | 8 | 50 | 320 | 55 | 116.5 | 658 | 3.5 | 9~M16 | 25 | 33 |
| AP-375A20 | 690 | 272/322 | 520 | 650 | 412.78 | 8 | 50 | 375 | 55 | 127 | 738 | 3.5 | 9~M16 | 28 | 33 |
| Model | L2 | M | N | P | Q max. | Q min. | R max. | R min. | S | T | U | V | W | X | Y |
| AP-145A11 | 6~M20 | 63.7 | 165 | 43 | 53.5 | 23.5 | 98 | 91 | 62 | 25.5 | 57° | 242 | 0° | 38 | 20 |
| AP-185A15 | 6~M24 | 63.7 | 165 | 43 | 53.5 | 23.5 | 118 | 111 | 62 | 25.5 | 58° | 272 | 7° | 38 | 20 |
| AP-230A15 | 6~M24 | 71.7 | 180 | 60 | 48.5 | 18.5 | 145 | 136.5 | 64 | 25.5 | 30° | 300 | 7° | 33 | 15 |
| AP-275A20 | 6~M24 | 71.7 | 180 | 60 | 48.5 | 18.5 | 167.5 | 159 | 64 | 25.5 | 30° | 322 | 7° | 30 | 12 |
| AP-320A20 | 6~M24 | 81.5 | 210 | 60 | 60.5 | 24.5 | 190 | 181.5 | 74 | 30 | 52° | 350 | 7° | 27 | 9 |
| AP-375A20 | 6~M24 | 81.5 | 210 | 60 | 66.5 | 24.5 | 223.5 | 211.5 | 74 | 30 | 52° | 387 | 7° | 27 | 9 |
Remarks:
The dimensions and the specifications of AP-A type are in the red data.
Subject to technology changes without prior information
Non-standard requirements can be made
