| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Certification: | CE |
| Model Number: | 3Q Series |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |

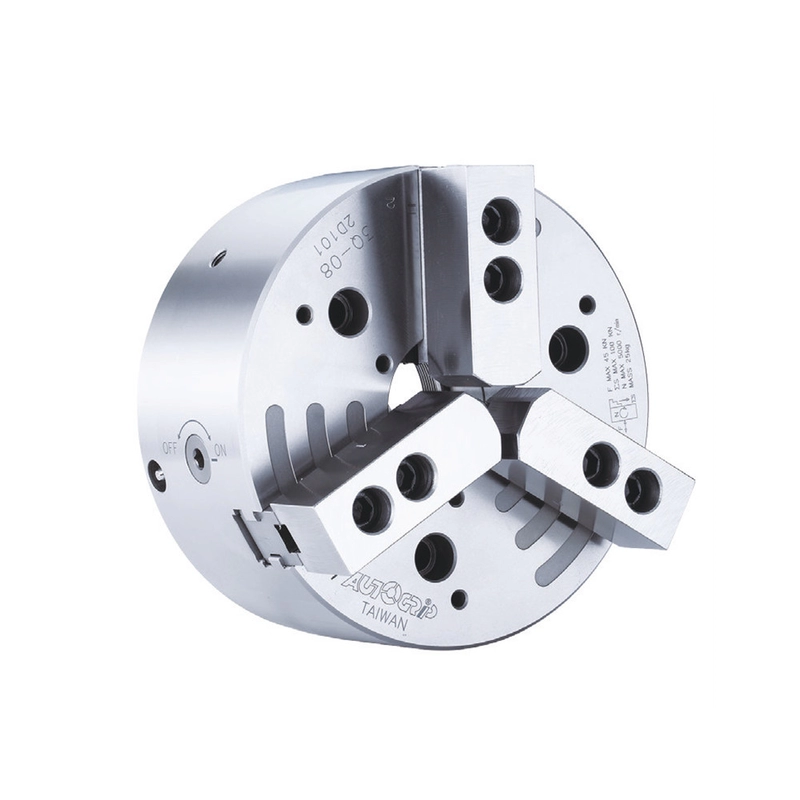

| Product Name: | 3Q QUICK JAW-CHANGE CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | HIGH PRECISION QUICK JAW CHANGE CHUCK,3Q QUICK JAW CHANGE CHUCK |
||
Product Details
Brand:NTH
The shortest changes time for soft jaw, it is the high repeatability precision.
High rigidity and high repeatability precision.
<span font-size:14px;"="" style="margin: 0px; padding: 0px; box-sizing: border-box;">For safety system that master jaw will complete return when base jaw and serration match up properly.
(Size unit: mm)
| Model |
Plunger stroke (mm) |
Jaw stroke (Dia.)(mm) |
Chucking Dia. Max.(mm) |
Chucking Dia. Min.(mm) |
Max. D.B. pull kN(kgf) |
Max. clamping Force kN (kgf) |
| 3Q-08A6 | 16 | 7.5 | 210 | 23 | 45.0(4590) | 82.0(8360) |
| 3Q-10A8 | 19 | 8.8 | 254 | 41 | 60.0(6118) | 115.0(11270) |
| 3Q-12A8 | 23 | 10.6 | 315 | 47 | 81.0(8259) | 165.0(16825) |
|
Model |
Max. speed min-1(r.p.m.) |
Inertia kg‧m2 |
Weight (kg) |
Weight (kg) Adapter Included |
Matching cyl. |
Max. pressure MPa (kgf/cm2) |
| 3Q-08A6 | 5000 | 0.15 | 24.5 | 26.0 | TK-1068 | 3.1(31) |
| 3Q-10A8 | 4500 | 0.41 | 44.0 | 46.0 | TK-A1287 | 2.8(28) |
| 3Q-12A8 | 3500 | 0.96 | 73.0 | 75.0 | TK-1511 | 2.4(25) |

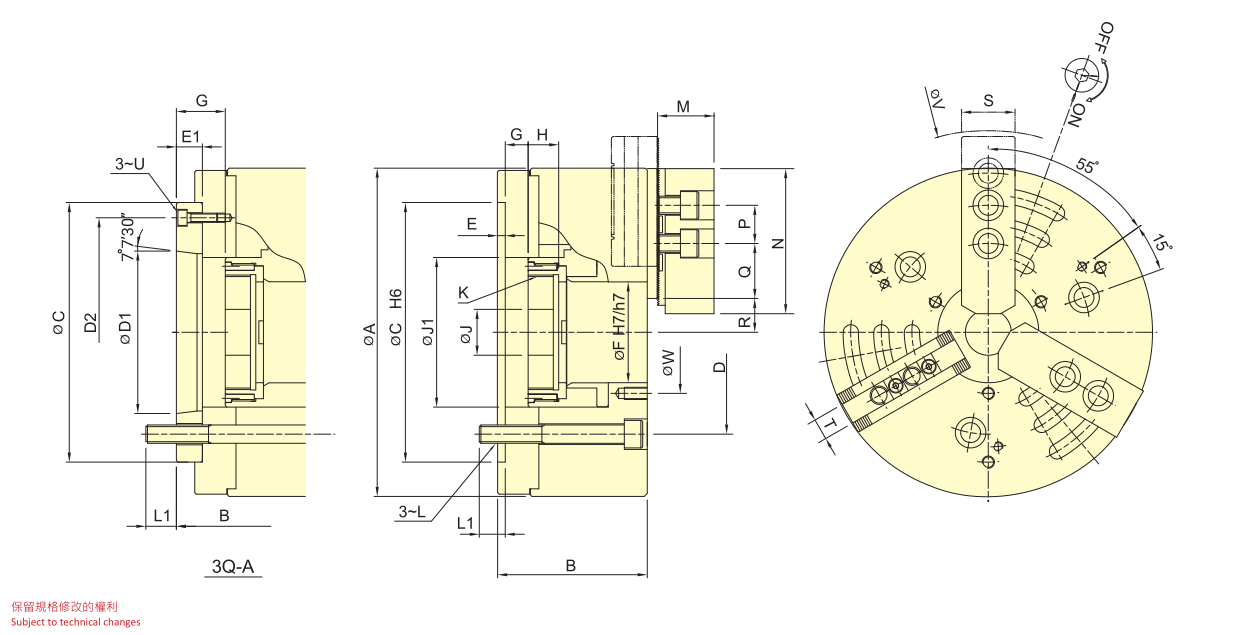

| Model | A | B | B | C | D | D1 | D2 | E | E1 | F |
G max. |
G max. |
G min. |
G min. |
H | J |
| 3Q-08A6 | 215 | 98 | 110 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 66 | 14.5 | 32 | -1.5 | 15.5 | 20 | 30 |
| 3Q-10A8 | 254 | 119 | 132 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 81 | 8.5 | 26.5 | -10.5 | 7.5 | 39 | 45 |
| 3Q-12A8 | 315 | 133 | 145 | 220 | 171.4 | 139.72 | 190 | 6 | 18 | 106 | 8.5 | 26.5 | -14.5 | 3.5 | 42 | 50 |
| Model | J1 | K max. | L | L1 | L1 | M | N | P | Q | R max. | R min. | S | T | U | V | W |
| 3Q-08A6 | 98 | M75x2 | M12 | 17 | 20 | 37 | 95 | 25 | 36 | 20.8~44.8 | 17.1~41.1 | 35 | 14 | M6 | 264 | 80 |
| 3Q-10A8 | 115 | M90x2 | M16 | 23 | 25 | 42 | 110 | 30 | 40.5 | 21.1~52.8 | 16.7~48.2 | 40 | 16 | M8 | 312 | 100 |
| 3Q-12A8 | 140 | M115x2 | M16 | 22 | 24 | 50 | 111 | 30 | 57 | 34.1~70.1 | 28.8~64.8 | 50 | 21 | M8 | 360 | 130 |
Remarks:
The dimensions and the specifications of 3Q-A are in the red data.
Subject to technology changes without prior information
Non-standard requirements can be made
