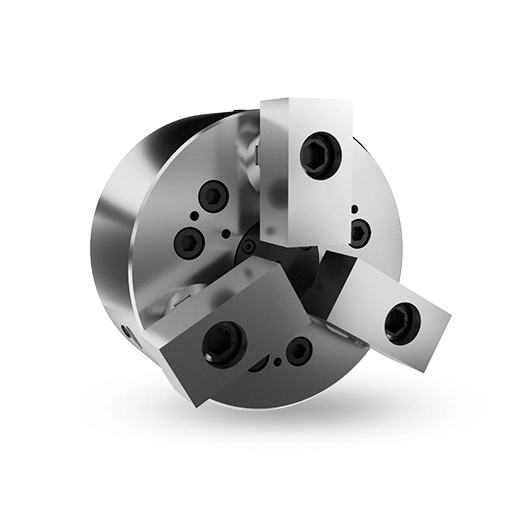

PL PULL BACK POWER CHUCKS MADE OF FORGED STEEL
Pull back feature of radial gripping will lead to almost no work piece uplifting displacement;OMATEI Pull Back Power Chucka are ideal for maching casting and forging parts;
By appressing the gripped work piece to the surfce,OMATEI Pull Back Power Chucks are suitable for heavy machining.
Chuck Actuators with cylindrical structure are durable and ensures high gripping repeatability.
Accurate self-centering and pull back features are adequate for precise length control machining requirements.
Optional components can be selecter for detecting the right position on automated loading machine.
Production Catalogue Download:PL PULL BACK POWER CHUCKS.pdf
(Size unit: mm)
| Spec/ Model | Plunger stroke mm | Jaw stroke Dia. mm | Max RPM | Max.pull force kgf(KN) | Max gripping force KN |
| PL-06 | 10 | 5.3 | 3500 | 1420(14) | 2950(29) |
| PL-08 | 10 | 5.3 | 3000 | 2240(22) | 4890(48) |
| PL-10 | 16 | 11.6 | 2500 | 3160(31) | 4990(49) |
| PL-12 | 16 | 11.6 | 2000 | 4480(44) | 7240(71) |
| Spec/ Model | Max.Oil pressure kgf/cm2(Mpa) | Weight Kg | Matching cylinder | Gripping range mm |
| PL-06 | 22(2.2) | 15.4 | S-100(S-100R) | Ø35-Ø160 |
| PL-08 | 22(2.2) | 27.8 | S-125(S-125R) | Ø40-Ø210 |
| PL-10 | 30(2.9) | 45.9 | S-125(S-125R) | Ø50-Ø254 |
| PL-12 | 30(2.9) | 75.7 | S-150(S-150R) | Ø50-Ø304 |

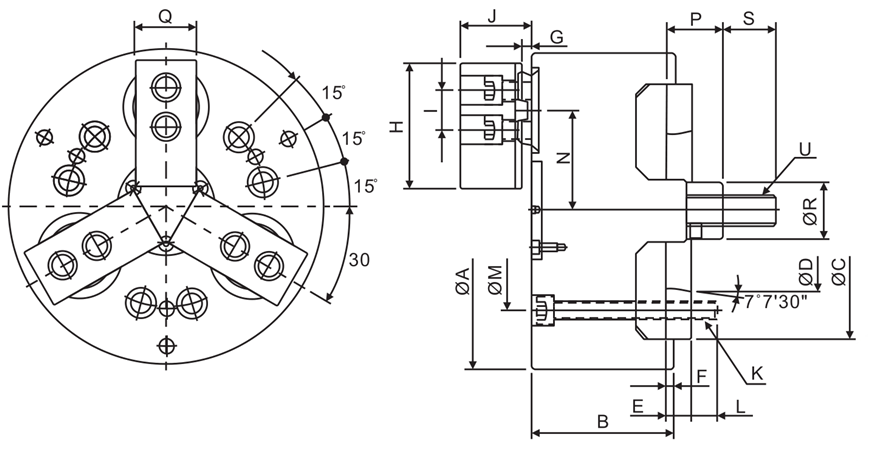

| Spec/Model | A | B | C | D | E | F | Gmax | Gmin | H | Jmax | Jmin |
| PL-06 | 169 | 83 | 140 | 82.563 | 15 | 5 | 15 | 5 | 70 | 46 | 36 |
| PL-08 | 210 | 97 | 170 | 106.375 | 17 | 5 | 16.5 | 6.5 | 84 | 57 | 47 |
| PL-10 | 254 | 110 | 220 | 139.719 | 18 | 5 | 22 | 6 | 100 | 68 | 52 |
| PL-12 | 304 | 125 | 220 | 139.719 | 18 | 5 | 21.5 | 5.5 | 120 | 72.5 | 56.5 |
| Spec/Model | I | K | L | M | Nmax | Nmin | Pmax | Pmin | Q | R | S | U |
| PL-06 | - | 6-M10×1.5P | 14 | 104.8 | 56.65 | 54 | 33 | 23 | 35 | 32 | 36 | M16×2P |
| PL-08 | 26 | 6-M12×1.75P | 17 | 133.4 | 69.65 | 67 | 38 | 28 | 40 | 38 | 36 | M20×2.5P |
| PL-10 | 32 | 6-M16×2P | 24 | 171.4 | 87.8 | 82 | 48 | 32 | 50 | 50 | 46 | M24×3P |
| PL-12 | 36 | 6-M16×2P | 20 | 171.4 | 102.8 | 97 | 47 | 31 | 60 | 52 | 50 | M27×3P |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
