| Product Name: | S-RE ROTARY HYDRAULIC CYLINDER WITH SAFETY AND DETECTION | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | S-RE ROTARY HYDRAULIC CYLINDER, DETECTION ROTARY HYDRAULIC CYLINDER, SAFETY ROTARY HYDRAULIC CYLINDER |
||

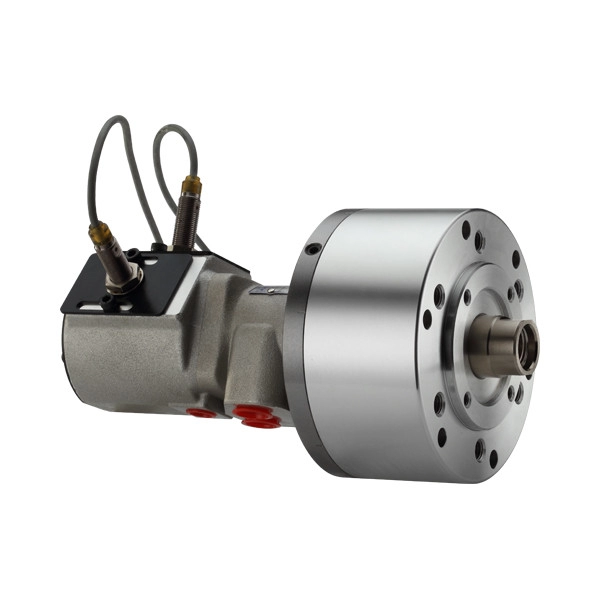

S-RE ROTARY HYDRAULIC CYLINDER WITH SAFETY AND DETECTION
Brand:NTH
The rotary cylinder is the type of short form, light weight and high rotating speed.
It can work with inductive proximity switch, it’s easy to adjust the stroke and check if the stroke of the cylinder piston is OK or not.It can work with inductive proximity switch, the switch is excluded in accessories and need buying individually, It’s applied to check if the cylinder stroke is required or not.
The safety check valve and pressure relief valve are built in the cylinder.
It can be mounted from front or back.
The drain port should be independently connected to oil tank to avoid back pressure.
Production Catalogue Download:S-RE datasheet.pdf

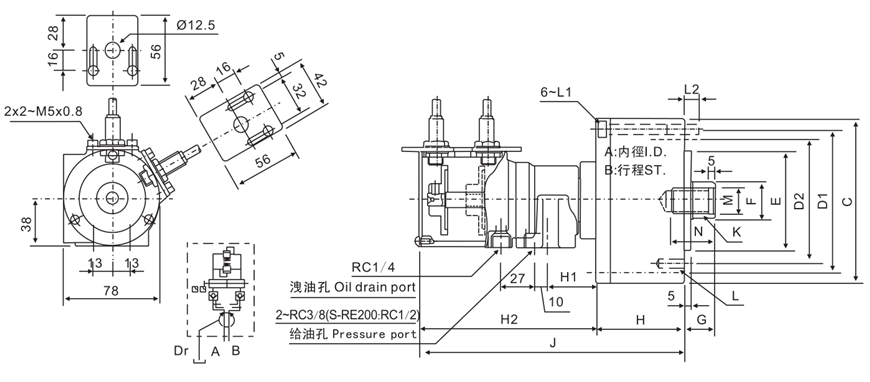

(unit: mm)
| 规格 Spec 型号 Model | 活塞面积 Piston area cm2 押侧Extend | 活塞面积 Piston area cm2 拉侧Retract | 活塞行程 Piston stroke mm | 最高转速 Max RPM | 最大使用压力 Max.Operating Pressure Mpa(kgf/cm2) | 惯性矩 I kg*m2 | 重量 Weight kg |
| S-75RE | 43 | 37.1 | 15 | 6000 | 4.0(40) | 0.01 | 3.4 |
| S-100RE | 77.4 | 71.5 | 20 | 6000 | 4.0(40) | 0.04 | 4.9 |
| S-125RE | 121.6 | 113.1 | 25 | 5500 | 4.0(40) | 0.05 | 7.4 |
| S-150RE | 175.6 | 160.8 | 30 | 5500 | 4.0(40) | 0.1 | 10.7 |
| S-200RE | 313 | 290.4 | 35 | 5500 | 4.0(40) | 0.29 | 15.9 |
| 规格 Spec 型号 Model | A | B | C | D1 | D2 | E H7 | F | G Max | G Min | H | H1 | H2 | J | K | L | L1 | L2 | M | N |
| S-75RE | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 42 | 137 | 194 | M20×2.5 | 6~M8×16 | M8×60 | 12 | 21 | 35 |
| S-100RE | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 42 | 137 | 209 | M20×2.5 | 6~M10×20 | M8×75 | 12 | 21 | 35 |
| S-125RE | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 41 | 136 | 218 | M24×3.0 | 6~M12×20 | M8×85 | 12 | 25 | 45 |
| S-150RE | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 39 | 134 | 230 | M30×3.5 | 12~M12×24 | M10×100 | 16 | 31 | 45 |
| S-200RE | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 115 | 36 | 132 | 248 | M36×4.0 | 12~M16×30 | M10×125 | 21 | 37 | 60 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
