| Product Name: | HK Shorp Type Hydraulic Rotary Cylinder Through Hole Stable Performance | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, precision hydraulic cylinders |
||

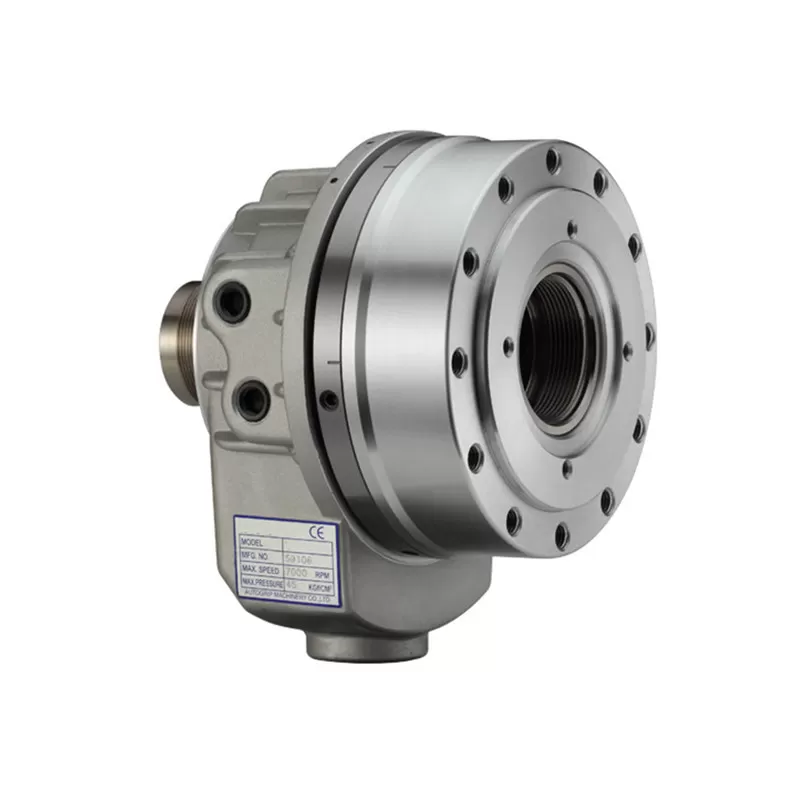

HK Shorp Type Hydraulic Rotary Cylinder Through Hole Stable Performance
Brand:NTH
Super short form.light weight large Through-Hole,justas 2/3 of typical model length.
Built-in safety check valves and pressure relief valves.
Forward and backward choose a fixed installation.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke | Max RPM | Max.Operating Pressure Mpa(kgf/cm2) | I Kg*m2 | Weight kg | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|
| HK-2091 | 234 | 217.5 | 30 | 3800 | 4.0(40) | 0.092 | 24.8 | 4.5 |
| HK-2511 | 356.5 | 335.3 | 30 | 3000 | 3.5(35) | 0.38 | 49.5 | 7 |
| HK-2114 | 373.2 | 336.1 | 35 | 2500 | 3.5(35) | 0.54 | 58.2 | 8 |

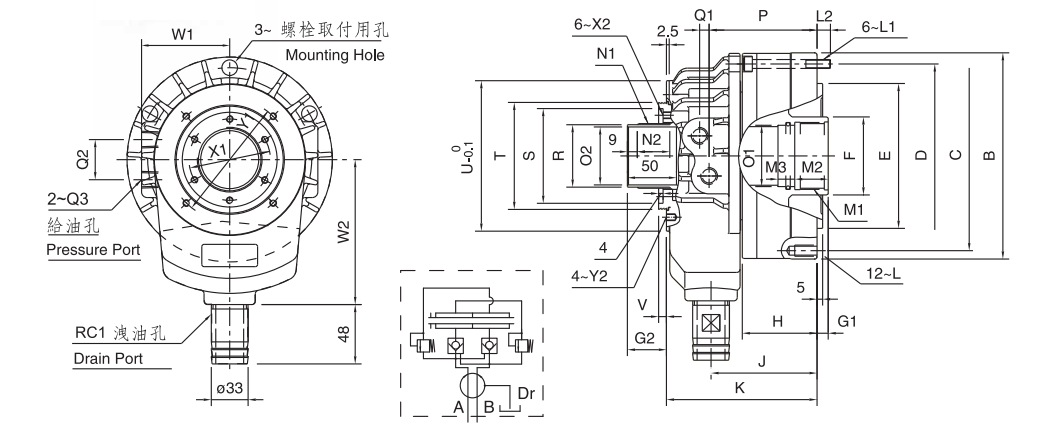

Spec Model | A(Id) | B | C | D | Eh7 | F | G1 Max | G1 Min | G2 Max | G2 Min | H | J | K | L | L1 | L2 | M1 | M2 | M3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HK-2091 | 200 | 245 | 215 | 225 | 180 | 110 | 30 | 0 | 55 | 25 | 87 | 127 | 185 | M12×24 | M10×95 | 18.5 | M100×2 | 35 | 15 |
| HK-2511 | 250 | 305 | 275 | 280 | 230 | 140 | 30 | 0 | 55 | 25 | 100 | 154 | 224 | M16×32 | M12×110 | 22.5 | M130×2 | 35 | 15 |
| HK-2114 | 265 | 320 | 295 | 295 | 240 | 165 | 35 | 0 | 60 | 25 | 115 | 173.5 | 247.5 | M16×32 | M12×120 | 17.5 | M155×2 | 45 | 20 |
Spec Model | N1 | N2 | O1 H8 | O2 H8 | P | Q1 | Q2 | Q3 | R G7 | S H7 | T | U | V | W1 | W2 | X1 | X2 | Y1 | Y2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HK-2091 | M100×2.0 | 38 | 95 | 91 | 128.5 | 15 | 45 | RC1/2 | 96 | 120 | 138 | 180 | 7 | 110 | 185 | 108 | M6×10 | 165 | M6×10 |
| HK-2511 | M130×2.0 | 38 | 125 | 120 | 152 | 17 | 50 | RC1/2 | 126 | 150 | 170 | 227 | 7 | 134 | 210 | 138 | M6×10 | 210 | M6×10 |
| HK-2114 | M150×2.0 | 38 | 145 | 140 | 170 | 17 | 50 | RC1/2 | 146 | 170 | 190 | 250 | 7 | 145 | 210 | 160 | M6×10 | 230 | M6×10 |
Subject to technology changes without prior information
Non-standard requirements can be made
