| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | S-65,S-80,S-100,S-125,S-150,S-200, |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | S SERIES ROTARY HYDRAULIC CYLINDER | Material: | -- |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | rotary hydraulic cylinder, rotary air cylinder |
||

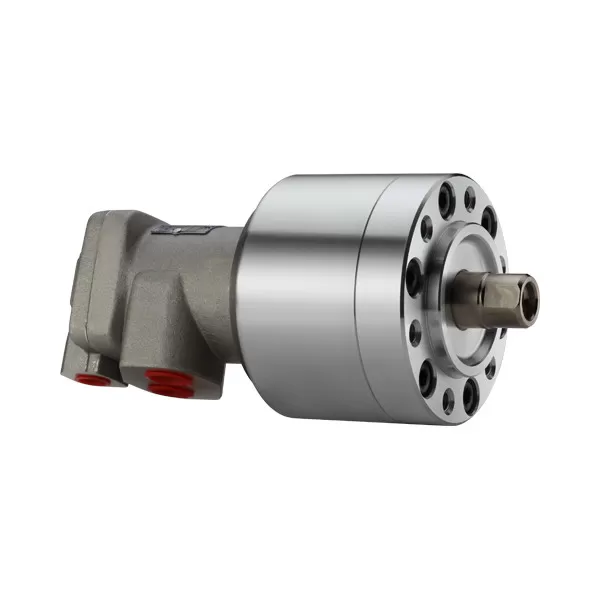

S SERIES ROTARY HYDRAULIC CYLINDER
Brand:NTH
The rotary valve and cylinder body,all made of special light alloy,light-weight.
Through unique design,the rotary valve enables the inside bearing to get sufficient lubricating and cooling and endure high-speed rotary for longer service life.
The drain port should be independently connected to oil tank to avoid back pressure.
Size unit: mm
| Spec Model | Piston area cm2 Extend | Piston area cm2 Retract | Piston stroke mm | Max RPM | Max.Operating Pressure Mpa(kgf/cm2) | I kg*m2 | Weight kg |
|---|---|---|---|---|---|---|---|
| S-65 | 31 | 27.9 | 15 | 6000 | 3.5(35) | 0.01 | 2.9 |
| S-80 | 47.7 | 42.8 | 15 | 6000 | 3.5(35) | 0.01 | 3.4 |
| S-100 | 75.4 | 70.5 | 20 | 5500 | 3.5(35) | 0.04 | 4.9 |
| S-125 | 119.6 | 112.5 | 25 | 5500 | 3.5(35) | 0.08 | 6.8 |
| S-150 | 173.6 | 157.7 | 30 | 4000 | 4.0(40) | 0.18 | 11.5 |
| S-200 | 310 | 286.3 | 35 | 4000 | 4.0(40) | 0.38 | 20.4 |

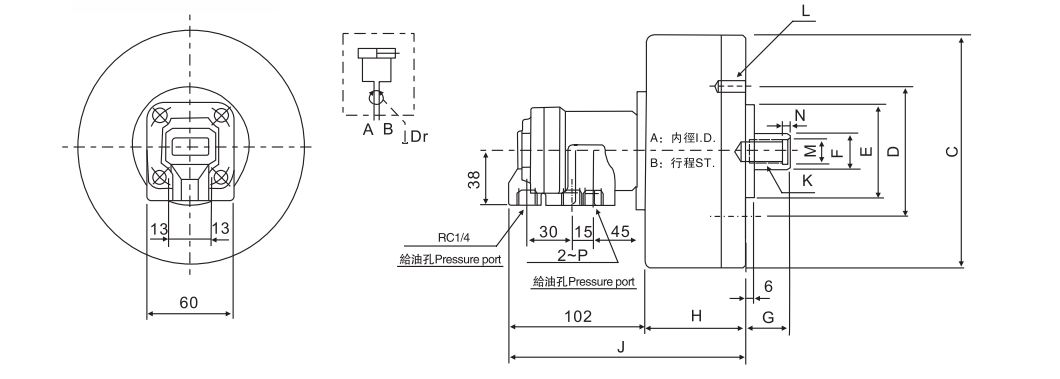

| Spec Model | A | B | C | D | E H7 | F | G Max | G Min | H | J | K | L | M H8 | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-65 | 65 | 15 | 98 | 80 | 60 | 22 | 45 | 30 | 74 | 175 | M12×30 | 6~M8×16 | - | 4 | RC3/8 |
| S-80 | 80 | 15 | 112 | 90 | 65 | 25 | 45 | 30 | 74 | 175 | M16×30 | 6~M8×16 | - | 4 | RC3/8 |
| S-100 | 100 | 20 | 135 | 100 | 80 | 25 | 45 | 25 | 89 | 190 | M20×35 (M16×30) | 6~M10×20 | - | 4 | RC3/8 |
| S-125 | 125 | 25 | 160 | 130 | 110 | 30 | 50 | 25 | 96 | 197 | M24×44 (M20×35) | 6~M12×20 | - | 4 | RC3/8 |
| S-150 | 150 | 30 | 190 | 130 | 110 | 45 | 55 | 25 | 105 | 206 | M30×45 | 12~M12×24 | 31 | 5 | RC1/2 |
| S-200 | 200 | 35 | 245 | 145 | 120 | 55 | 70 | 35 | 130 | 231 | M36×60 | 12~M16×30 | 37 | 5 | RC1/2 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:S Series.pdf
