| Product Name: | SNK-R ROTARY HYDRAULIC CYLINDER | Material: | |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | ROTARY HYDRAULIC CYLINDER, SNK-R ROTARY HYDRAULIC CYLINDER, SNK-R Hydraulic Rotary Cylinder |
||

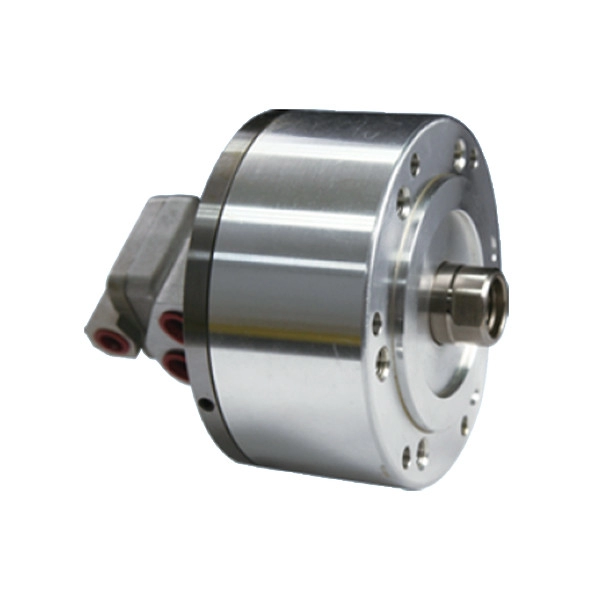

SNK-R ROTARY HYDRAULIC CYLINDER
Brand:NTH
Model : SNK-R
The rotary cylinder is the type of short form, light weight and high rotating speed.
It can be mounted from front or back.
The drain port should be independently connected to oil tank to avoid back pressure.
The safety check valve and pressure relief valve are built in the cylinder.
Production Catalogue: SNK-R datasheet.pdf
(unit: mm)
| 规格 Spec 型号 Model | 活塞面积 Piston area cm2 押侧Extend | 活塞面积 Piston area cm2 拉侧Retract | 活塞行程 Piston stroke mm | 最高转速 Max RPM | 最大使用压力 Max.Operating Pressure Mpa(kgf/cm2) | 惯性矩 I kg*m2 | 重量 Weight kg |
| SNK-75R | 44.2 | 37.1 | 15 | 6000 | 4.0(40) | 0.01 | 2.8 |
| SNK-100R | 78.5 | 71.5 | 20 | 6000 | 4.0(40) | 0.03 | 4.3 |
| SNK-125R | 122.7 | 113.1 | 25 | 5500 | 4.0(40) | 0.05 | 6.8 |
| SNK-150R | 176.7 | 160.8 | 30 | 5500 | 4.0(40) | 0.09 | 9.4 |
| SNK-200R | 314.1 | 290.4 | 35 | 5500 | 4.0(40) | 0.28 | 15.3 |

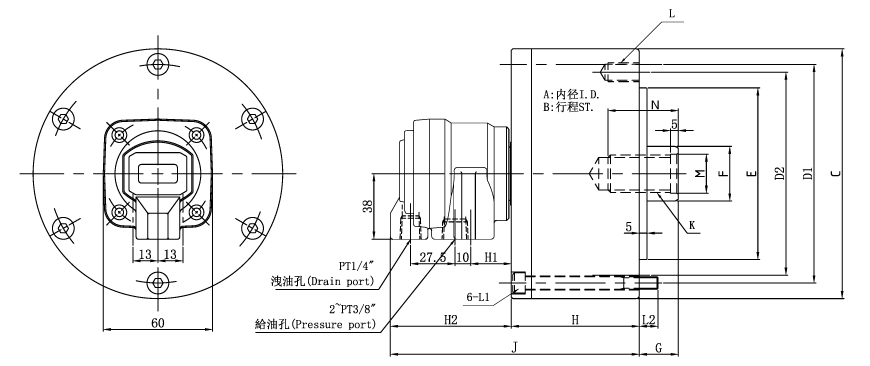

| 规格 Spec 型号 Model | A | B | C | D1 | D2 | E H7 | F | G Max | G Min | H | J | K | L | L1 | L2 | M | N | H2 |
| SNK-75R | 75 | 15 | 107 | 90 | 90 | 65 | 30 | 45 | 30 | 57 | 148 | M20×2.5 | 6~M8×16 | M8×60 | 12 | 21 | 35 | 91 |
| SNK-100R | 100 | 20 | 132 | 115 | 100 | 80 | 30 | 45 | 25 | 72 | 163 | M20×2.5 | 6~M10×20 | M8×75 | 12 | 21 | 35 | 91 |
| SNK-125R | 125 | 25 | 160 | 140 | 130 | 110 | 35 | 50 | 25 | 82 | 172 | M24×3.0 | 6~M12×20 | M8×85 | 12 | 25 | 45 | 90 |
| SNK-150R | 150 | 30 | 190 | 170 | 130 | 110 | 45 | 55 | 25 | 95 | 184 | M30×3.5 | 12~M12×24 | M10×100 | 16 | 31 | 45 | 89 |
| SNK-200R | 200 | 35 | 245 | 220 | 145 | 120 | 55 | 70 | 35 | 115 | 200 | M36×4.0 | 12~M16×30 | M10×125 | 21 | 37 | 60 | 86 |
Non-standard requirements can be made.
